Canon - Canon XF705 Camcorder

Canon 3041C003 - Canon XF705 Camcorder

1011385
4549292118285
Canon 3041C003 - Canon XF705 Camcorder
Canon 3041C003 - Canon XF705 Camcorder
Canon 3041C003 - Canon XF705 Camcorder
Canon 3041C003 - Canon XF705 Camcorder
Canon 3041C003 - Canon XF705 Camcorder
Canon 3041C003 - Canon XF705 Camcorder
Canon 3041C003 - Canon XF705 Camcorder
Canon 3041C003 - Canon XF705 Camcorder
Professionelle handgeführte Videokamera mit Unterstützung für 4K UHD-Auflösung und dem neuen HEVC-Codec ermöglicht die interne Aufzeichnung von UHD HDR-Dateien oder die Erstellung hochwertiger Inhalte für die Rundfunk- und Filmindustrie.
... mehr erfahren
Visuals Preis
6.249,00 CHF o. MwSt.

6.755,17 CHF Inkl. MwSt

Auf Bestellung
  • Lieferung
    • Versand in 1 bis 2 Wochen
  • Abholung im Geschäft
    • Verfügbar in 1 bis 2 Wochen

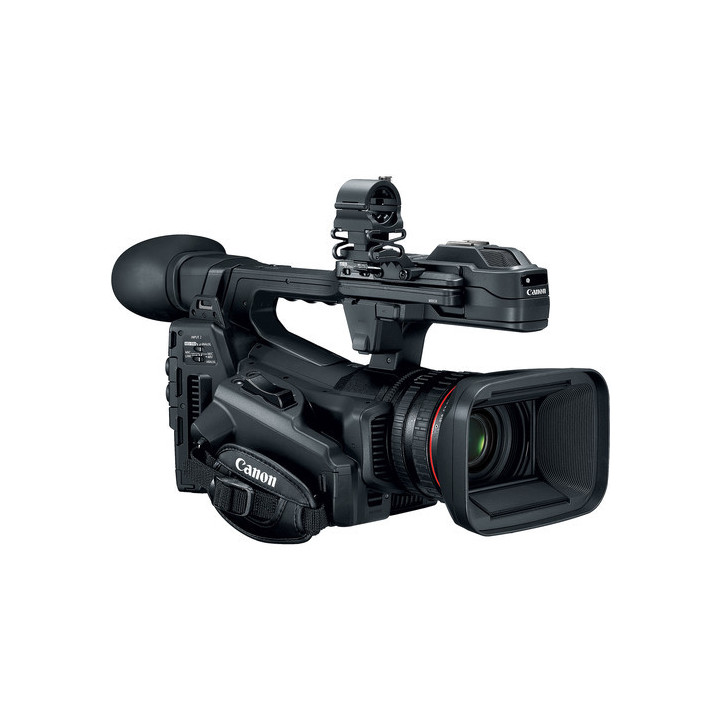

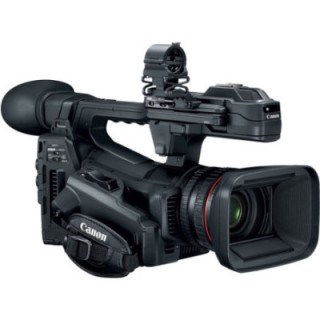

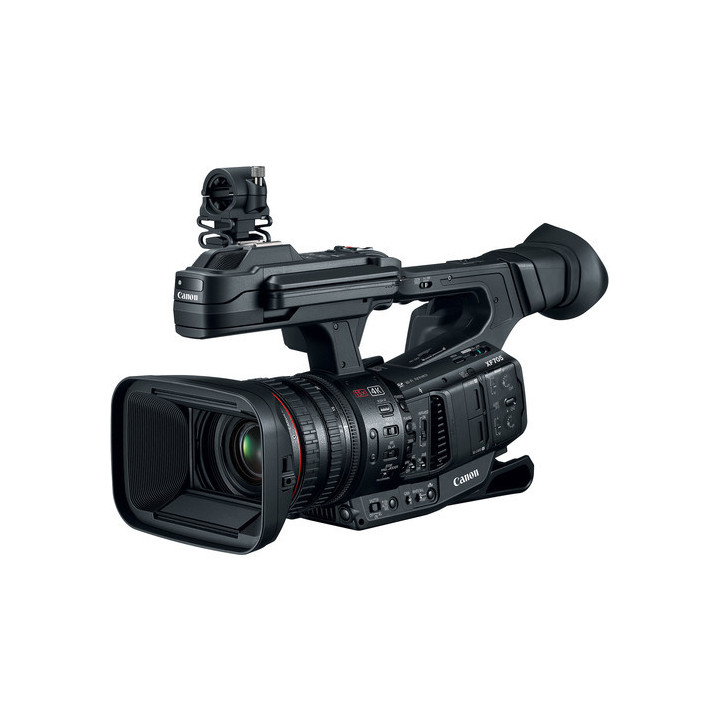

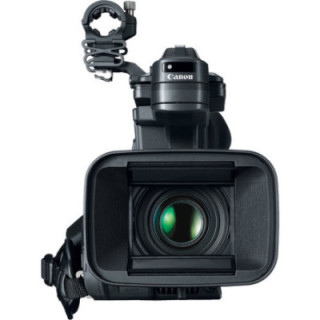

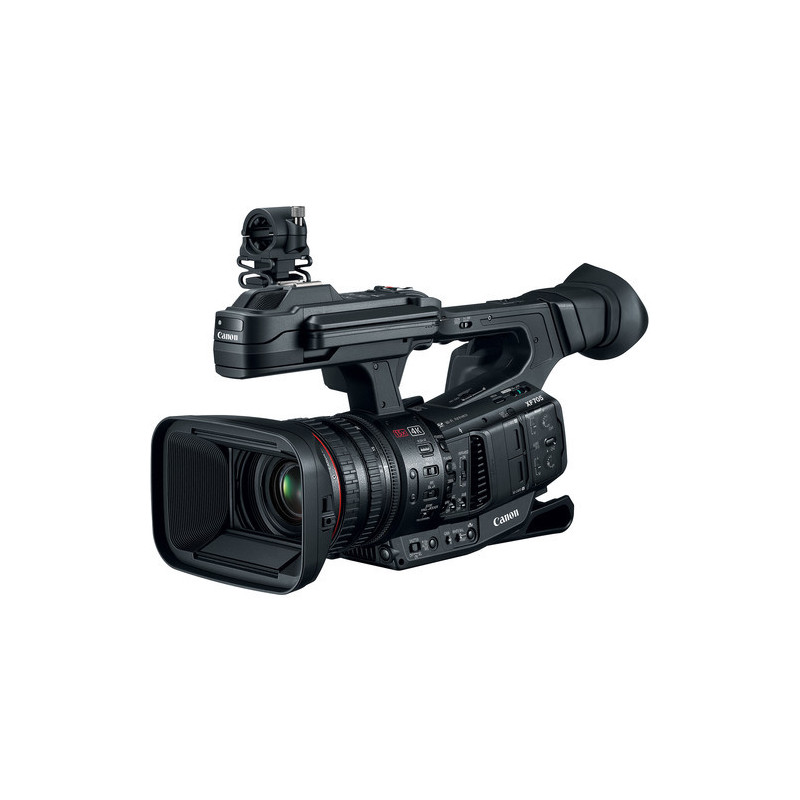

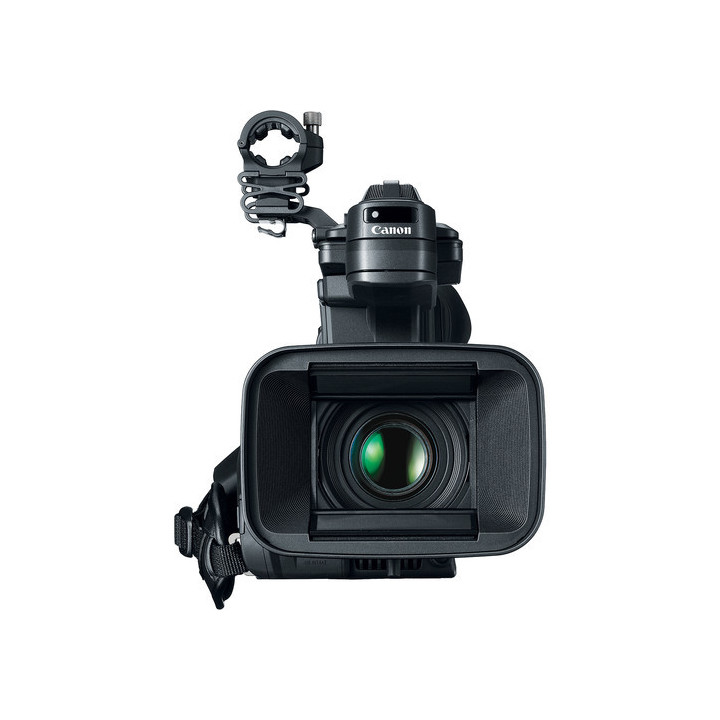

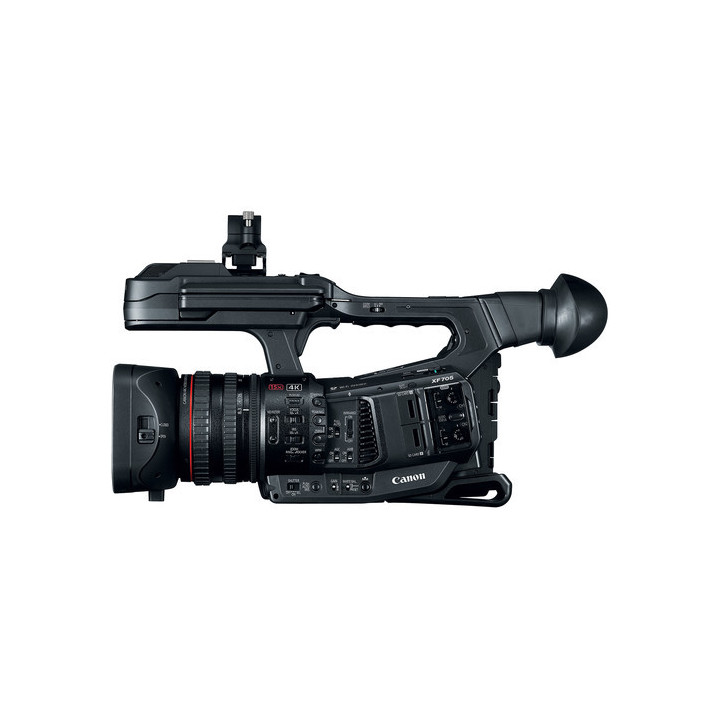

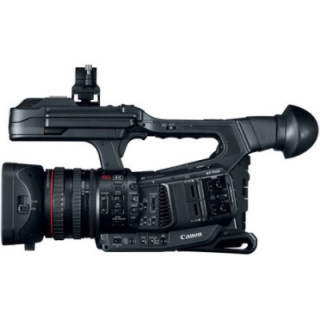

Canon XF705 4K 1" Sensor XF-HEVC H.265 Pro Camcorder
Canon's XF705 4K 1" Sensor XF-HEVC H.265 Pro Camcorder uses the highly efficient H.265 codec, offering up to UHD 4K60 4:2:2 10-bit capture in a compact, ergonomic form. Its 1" CMOS sensor and dual DIGIC DV 6 processors provide high sensitivity and low noise for natural-looking images. Camera features include 1080p rates up to 120 fps, 12G-SDI and HDMI 2.0 outputs, internal ND filters, and dual XLR audio inputs.
The XF705 incorporates a 15x HD optical zoom with up to 30x Advanced Zoom, a nine-bladed iris for rounded highlights, a 4" touchscreen LCD, and five-axis optical image stabilization. Imaging features include Dual-Pixel Autofocus (DPAF), Wide Dynamic Range Gamma, and both HLG (Hybrid Log Gamma) and PQ (Perceptual Quantization) HDR recording for impressive latitude. Firmware upgrade version 1.0.1.1 improves the zoom response in both ring and rocker modes, boosts the focus speed while zooming, and adds a vertical filter function to reduce artifacts like moiré and jagged edges.
The camera records to dual SDXC card slots and includes genlock, timecode, Ethernet, and RS-422 ports. On the audio side, the XF705 features four channels of LCPM audio with manual/automatic recording levels, and dual XLR inputs. Built-in Wi-Fi allows you to control the camera's functions via browser and transfer proxy files. Camera control is also available using the included WL-D6000 remote
Features
- 1" CMOS sensor captures UHD 4K video up to 60 fps and HD up to 120 fps
- 4:2:2 10-bit recording in the highly efficient H.265/HEVC codec
- The sensor and two DIGIC DV 6 processors produce images with shallow depth of field, high sensitivity, and low noise
- Integrated 15x optical, 30x digital zoom lens with 25.5 to 382.5mm (35mm-equivalent) focal range
- Improved zoom and focusing while zooming, as well as reduction in artifacts with firmware upgrade v1.0.1.1
- 5-axis optical stabilization with Standard, Dynamic, and Powered modes
- 9-blade iris for attractive bokeh looks
- Manual ND filter wheel with ND 1/4, 1/16, and 1/64 settings
- HLG (Hybrid Log Gamma) and PQ (Perceptual Quantization HDR recording for full color rendition and wide latitude
- Two SDXC memory card slots
- Dual-pixel CMOS autofocus with touch focus on the 4" LCD panel
- Fine-tune gain during simultaneous HDR and SDR recording
- Canon Log 3 offers wide latitude in post-grading
- Wide Dynamic Range with seamless gradations and minimal blown-out highlights
- Rotatable 4.0" LCD touchscreen and 0.46" OLED EVF for accurate viewing
- HDMI 2.0 and 12G-SDI outputs
- Genlock, SMPTE timecode, Ethernet, and remote ports
- Live IP streaming in H.265 or H.264
- Dual XLR inputs, an internal stereo mic, and a mini-jack input offer up to four channels of audio input
- Compatible with the optional RC-V100 remote controller
- Compact, lightweight design is suited for ENG, documentary, and run-and-gun productions
- Wired and Wi-Fi connectivity for FTP file transfers



Specifications



Imaging



Image Sensor

1-Chip 1" CMOS Sensor

Sensor Resolution

4268 x 3148 (13.4 MP)

Effective Sensor Resolution

3840 x 2160 (8.29 MP)

Minimum Illumination

3 lux at 1/30 Shutter Speed
2.5 lux at 1/25 Shutter Speed

White Balance Range

2000 to 15,000K

Lens



Focal Length

8.3 to 124.5mm

35mm Equivalent Focal Length

25.5 to 382.5mm

Optical Zoom Ratio

15x

Max Digital Zoom

15x

Maximum Aperture

f/2.8 to 4.5

Optical Design

18 Elements in 14 Groups

Minimum Focusing Distance

Entire Zoom Range: 2.0' / 60.0 cm
Wide: 0.4" / 1.0 cm

Filter Size

58 mm

Control Rings

Focus
Zoom
Iris

Image Stabilization

Optical
Digital

Focus Control

Autofocus
Manual Focus

Camera



Built-In ND Filter

Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

Built-In Microphone Type

Stereo

Recording Media

2 x SDXC Card Slots

Recording



Broadcast System Compatibility

NTSC, PAL

Recording Modes

H.265 4:2:2 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (160 Mb/s)
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (110 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (60 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (45 Mb/s)
1920 x 1080i at 50/59.94 fps (160 Mb/s)
1920 x 1080i at 50/59.94 fps (110 Mb/s)
1920 x 1080i at 50/59.94 fps (60 Mb/s)
1920 x 1080i at 50/59.94 fps (45 Mb/s)
1920 x 1080p at 120 fps (180 Mb/s)
H.264 4:2:0 8-Bit:
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (45 Mb/s)

Still Photo

1920 x 1080

Audio Recording

4-Channel 24-Bit 48 kHz LPCM Audio

IP Streaming

MPEG2: 1920 x 1080 to 3840 x 2160 at 25p, 29.97p, 50p, 59.94p  (4.0 to 16.00 Mb/s)
MPEG2: 1920 x 1080 to 1920 x 1080 at 50i, 59.94i  (4.0 to 9.0 Mb/s)

Interfaces



Video Connectors

1 x HDMI (HDMI 2.0) Output
1 x BNC (12G-SDI) Output

Audio Connectors

2 x 3-Pin XLR Input
1 x 1/8" / 3.5 mm Stereo Input
1 x 1/8" / 3.5 mm Stereo Headphone Output

Other I/O

1 x USB Mini-B Output
1 x BNC Genlock, Sync Input/Output
1 x BNC Timecode Input/Output
1 x 2.5 mm Control
1 x 8-Pin D-Sub Control
1 x RJ45 LAN Input/Output

Wireless Interfaces

2.4 GHz, 5 GHz Wi-Fi Video Output, Audio Output, Control

Display



Display Type

LCD

Screen Size

4.0"

Touchscreen

Yes

Screen Resolution

1,230,000 Dots

EVF



EVF Display Type

OLED

Screen Size

.46"

EVF Resolution

1,770,000 Dots

Power



Battery Type

Canon BP-A Series

Power Connectors

1 x Barrel (24 VDC) Input

Power Consumption

21.5 W

Environmental



Operating Temperature

32 to 104°F / 0 to 40°C

Operating Humidity

0 to 85%

General



Tripod Mount

1/4"-20 Female, 3/8"-16 Female

Dimensions

17.05 x 10.16 x 7.52" / 433 x 258 x 191 mm (With Protrusions)
14.88 x 8.27 x 6.38" / 378 x 210 x 162 mm (Without Protrusions)

Weight

6 lb / 2710 g
