Sony - HDCU-3100 with HKCU-SFP30 installed
Sony HDCP50/4K OLPF - HDCU-3100 with HKCU-SFP30 installed
-
Lieferung
- Versand in 1 bis 2 Wochen
-
Abholung im Geschäft
- Verfügbar in 1 bis 2 Wochen

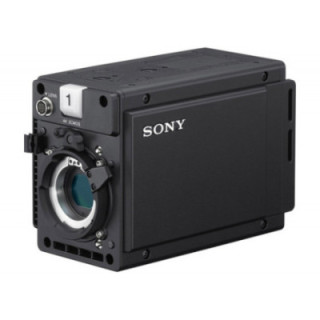

The HDC-P50 is a light, compact Point of View (POV) system camera. Integrating seamlessly with existing HD infrastructure, lenses and accessories, it gives ambitious programme makers exciting new possibilities for creating HD, 4K and HDR productions.
This light and compact POV system camera features the world’s first 2/3-inch 4K global shutter three CMOS sensor system that delivers exceptional image with impressive sensitivity and wide dynamic range.
Thanks to ultra-high precision alignment technology, three 4K sensors on the newly-developed prism achieves ITU-R BT.2020 broadcast standard widened colour space. As a result, the HDC-P50 delivers exceptionally high-quality images in demanding 4K/HDR live production environments.
The camera can directly output remarkably crisp, clear 4K HDR images directly from the camera head with no need for a separate processor unit. Used standalone or part of a multi-camera shoot, the HDC-P50 can be crane-mounted or operated as a fixed camera position. It’s also ideal for a wide range of other shooting situations – such as in combination with a camera stabiliser, in handheld mode, during wireless shooting or while filming aerial footage from a helicopter.
The HDC-P50 features the world’s first 2/3-inch 4K CMOS sensor with global shutter technology that eliminates the ‘jello effect’ and banding noise. This next-generation imager captures pristine 4K images with exceptionally low noise, impressive sensitivity and high dynamic range, while achieving the ITU-R BT.2020 broadcast standard widened colour space. It’s teamed with a specially developed new Digital Signal Processor that fully realises the extraordinary imaging power of this new sensor.
Dual optical filter wheels for Neutral Density (ND) and Colour Correction (CC) open up even wider creative possibilities in changing light conditions. Both filters can be controlled from a remote control panel or master setup unit.
The HDC-P50 joins Sony’s acclaimed HDC Series family of live production solutions. It benefits from direct compatibility with a wide range of accessories, remote control panels and camera control units. The camera is also designed for integration with third-party control systems.
The HDC-P50 packs impressive imaging performance into a light, compact camera body that’s ideal for use in space-limited situations such as crane jibs, helicopter camera mounts or operated as a fixed camera position. Low power consumption is complemented by minimal operating noise levels.
The advanced optical system of the HDC-P50 supports the ITU-R BT.2020 colour gamut, enabling exceptionally wide, precise colour reproduction in live broadcasts. From sports to concerts and special events, you’ll see the difference with vibrant, true-to-life images that make viewers feel as if they’re really there. HDR operation is available for 4K and HD simultaneous live operation through the S-Log3 process.
The HDC-P50 fits seamlessly into the growing Sony 4K live production environment. With an optional software upgrade, the camera enables 4K capture for multiple 4K and HD outputs.
Features
- Light, comapct, quiet and energy efficient
- Wide colour space and dynamic range
- Dual servo controlled optical filters
- Seamless integration into Sony HD workflows
- Smooth migration from HD to 4K
|
|
Specifications |
|
|
Operating temperature |
20°C to +45°C (.4°F to +113°F) |
|
|
Storage temperature |
20°C to +60°C (.4°F to +140°F) |
|
|
Mass |
2.7 kg (5 lb 15 oz) |
|
|
Imager |
3-chip 2/3-inch type 4K CMOS with global shutter |
|
|
Effective resolution (H x V) |
3840 x 2160 |
|
|
Signal format |
1080/50i, 1080/59.94i, 720/50p, 720/59.94p (1080/23.98PsF, 1080/24PsF, 1080/25PsF, 1080/29.97PsF, 50/59.94p, 4K/50p, 4K/59.94p: option) |
|
|
Spectrum system |
F1.4 prism |
|
|
Lens mount |
Sony bayonet mount |
|
|
Built-in filters |
ND: 1: CLEAR, 2: 1/4ND, 3: 1/8ND, 4: 1/16ND, 5: 1/64ND CC: A: CROSS, B:3200K, C: 4300K, D: 6300K |
|
|
Sensitivity (at 2000 lx, 3200K, 89.9% reflectance) |
F10 (at 1080/59.94p, 720/59.94p), F11 (at 1080/50p, 720/50p) |
|
|
Signal-to-noise ratio |
-62 dB or higher |
|
|
Horizontal resolution |
2,000 TV lines (at center) |
|
|
Shutter speed |
1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec (1080/59.94i) 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec (1080/50i) |
|
|
Genlock input |
BNC (x1) HD: SMPTE 274M, tri-level sync, 0.6 Vp-p, 75 Ω SD: Black burst (NTSC: 0.286 Vp-p, 75 Ω/PAL: 0.3 Vp-p, 75 Ω) |
|
|
SDI 1 |
outputBNC (x1), 12G/3G/1.5G-SDI |
|
|
SDI 2 |
outputBNC (x1), 12G/3G/1.5G-SDI |
|
|
SDI 3 |
outputBNC (x1), 3G/1.5G-SDI |
|
|
SDI 4 |
outputBNC (x1), 3G/1.5G-SDI |
|
|
SDI MONI |
BNC (x1), HD-SDI |
|
|
EXT |
I/OD-sub 15-pin (female) (x1) |
|
|
Remote |
8-pin (x1) |
|
|
Lens |
12-pin (x1) |
|
|
LAN |
RJ-45 (x1), 10BASE-T, 100BASE-TX |
