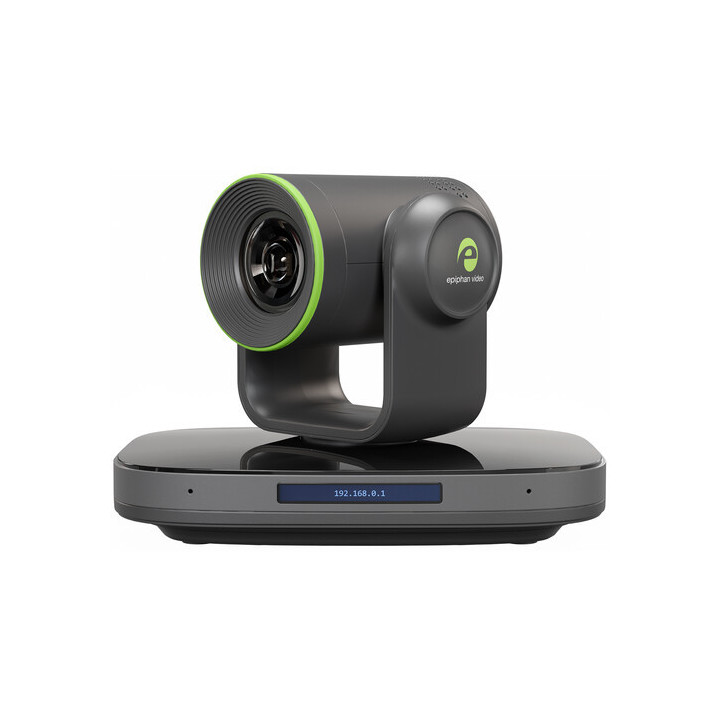

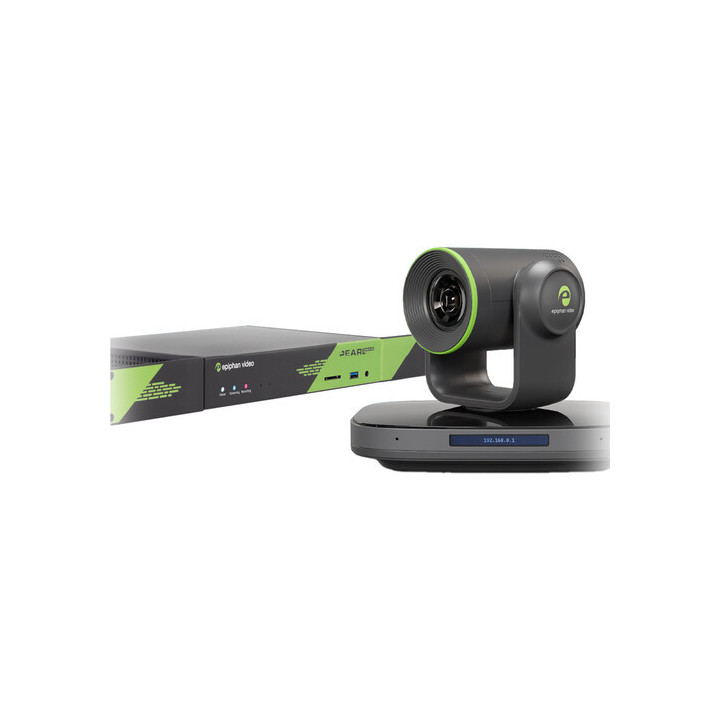

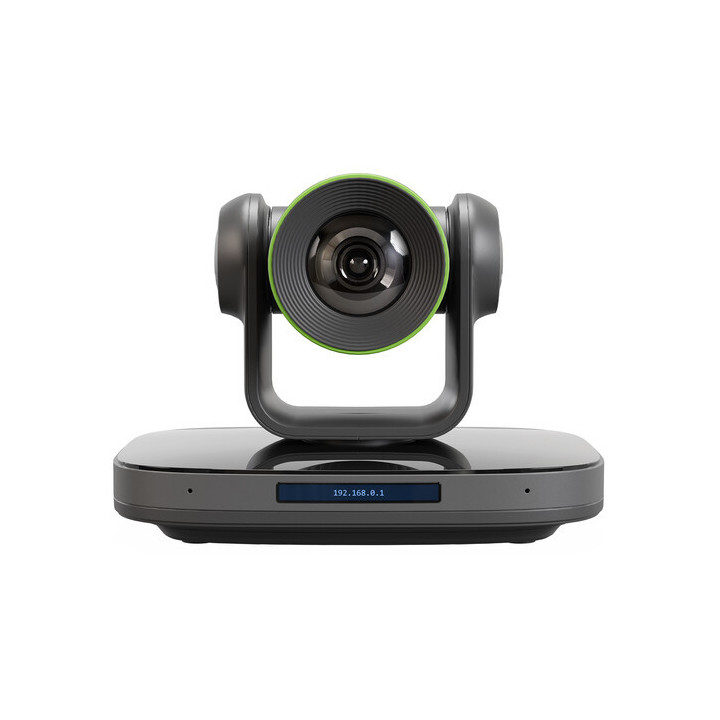

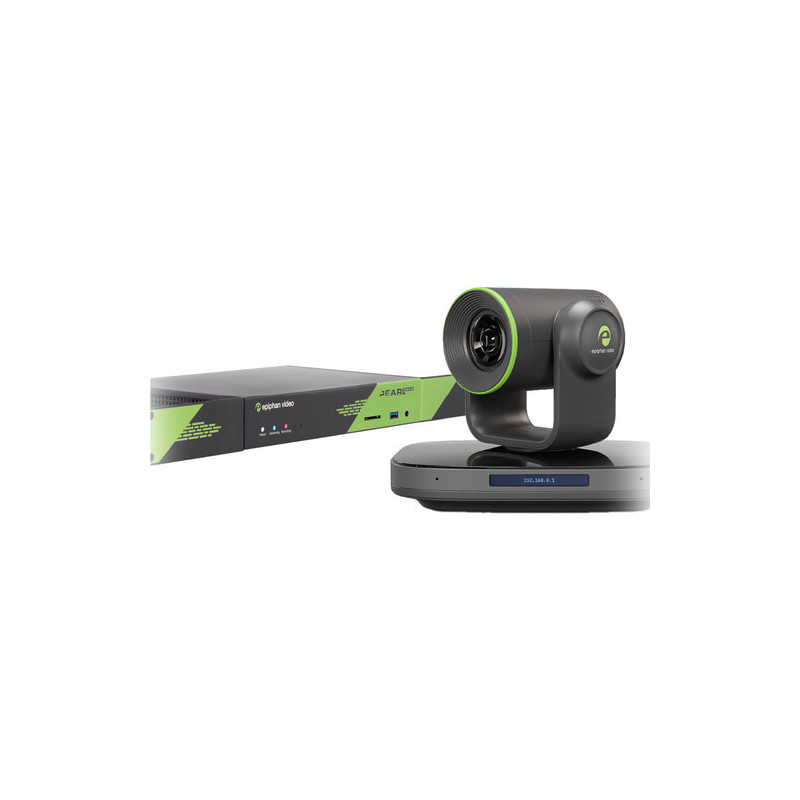

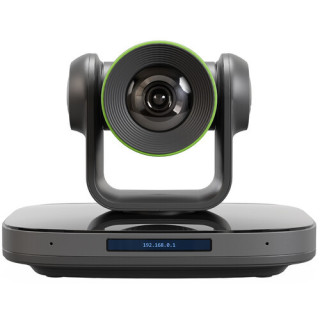

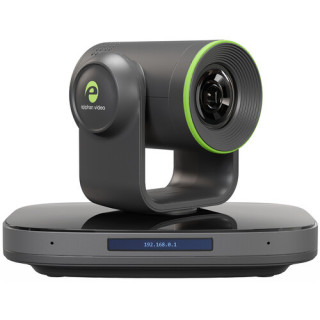

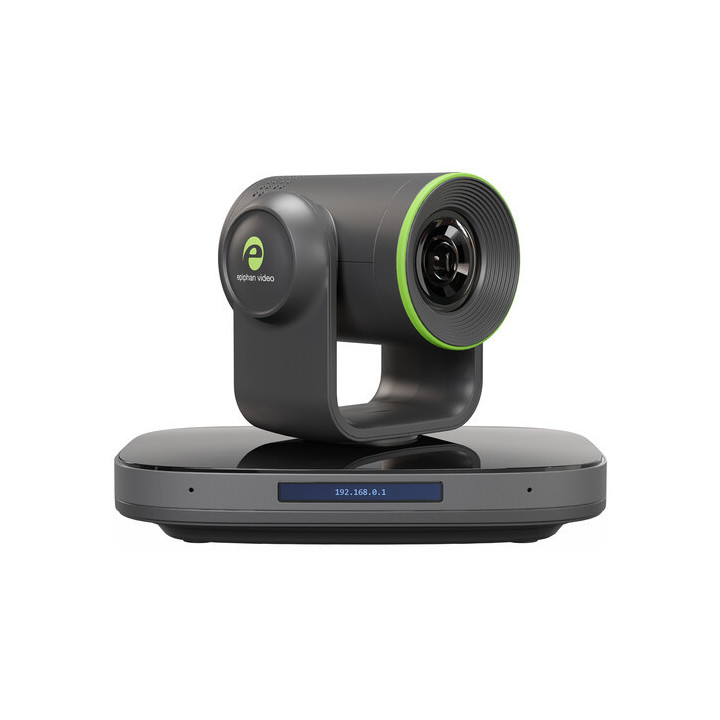

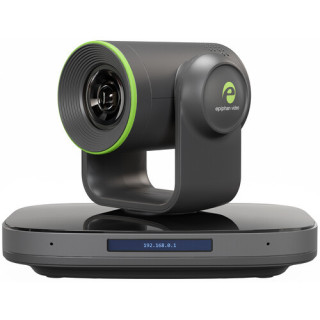

The Lecture Capture Plus Bundle with 2 x EC20 PTZ Cameras from Epiphan comprises the Pearl Lexus streamer/recorder/switcher and two EC20 PTZ Cameras with wall and ceiling mounts. This solution enables synced, multi-angle video capture, delivering more engaging video content for your students.
... mehr erfahren
Visuals Preis
6.440,00 CHF o. MwSt.

6.961,64 CHF Inkl. MwSt

Auf Bestellung
  • Lieferung
    • Versand in 2 bis 3 Wochen
  • Abholung im Geschäft
    • Verfügbar in 2 bis 3 Wochen

Epiphan ES1905 Specs

Switching Type Software
Color Processing 8-Bit 4:2:0
Audio Processing 48 kHz
Video Inputs 1x BNC (3G-SDI)
2x HDMI (1.4)
2x USB-A (UVC)
1x RJ45 (RTSP, SRT, HX/NDI)
Input Video Format BNC (4:4:4/4:2:2 RGB, YCC)
WUXGA (1920 x 1200) up to 60 fps
640 x 480 up to 60 fps
HDMI (4:4:4/4:2:2 RGB, YCC)
640 x 480 up to 60 fps
WUXGA (1920 x 1200) up to 60 fps
Audio Inputs 2x Combo XLR-1/4" TRS Line
1x RCA Line
1x 1/8" / 3.5 mm TRS Mic
Embedded Audio Input HDMI
SDI
USB-A
RJ45
Video Outputs 1x HDMI (1.4a)
1x RJ45
Output Video Format HDMI / RJ45
480p up to 60 fps
WUXGA (1920 x 1200) up to 60 fps
Audio Outputs 1x 1/8" / 3.5 mm TRS
Embedded Audio Output HDMI
RJ45
HDCP Support No
Wireless No
Power I/O 1x Barrel (12 VDC at 5 A) Input
Power Consumption Power Supply: 90 to 240 VAC
Device: 12 VDC at 5 A (60 W)
Operating Conditions 32 to 104°F / 0 to 40°C
Certifications CE, FCC, RoHS
Rack Form Factor 1 RU
Dimensions 18.3 x 7.2 x 1.7" / 465 x 184 x 43 mm
Weight 5.3 lb / 2.4 kg
Package Weight 9.94 lb
Box Dimensions (LxWxH) 14.9 x 10.7 x 6.6"
The Lecture Capture Plus Bundle with 2 x EC20 PTZ Cameras from Epiphan comprises the Pearl Lexus streamer/recorder/switcher and two EC20 PTZ Cameras with wall and ceiling mounts. This solution enables synced, multi-angle video capture, delivering more engaging video content for your students.
