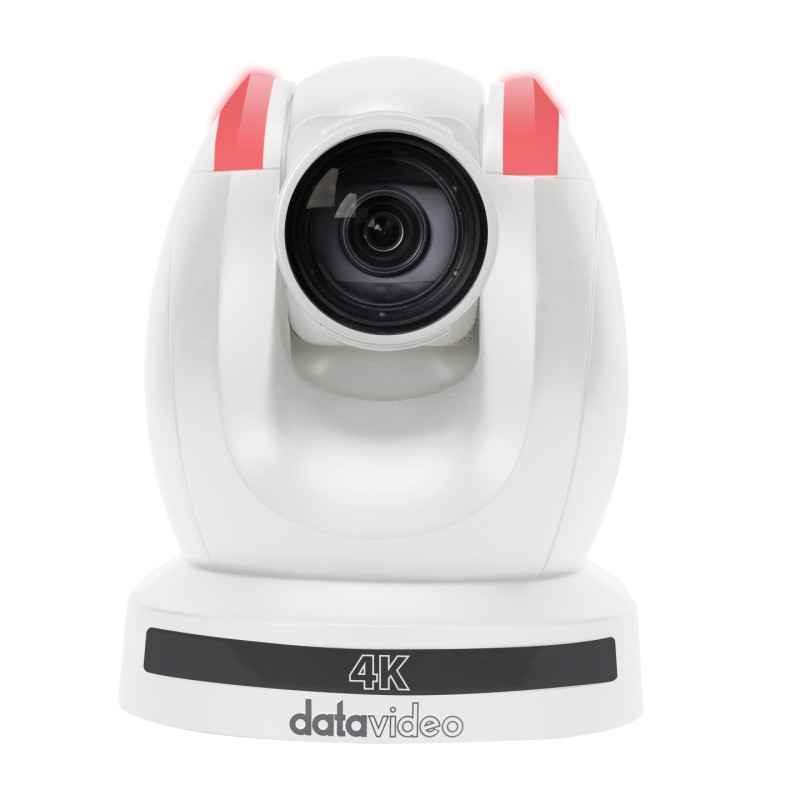

Datavideo - UHD PTZ Camera 12xOPT/16xDIG-Zoom, White
Datavideo 7000-3081 - PTC-280W - UHD PTZ Camera 12xOPT/16xDIG-Zoom, White
1039175
0672255008980
4K(UHD) Pan/Tilt Camera in White with 1/2.5 CMOS, 12x Optical Zoom, 16x Digital Zoom, 3G-SDI x1, HDMI 2.0 x1 (4K 50/59.94/60p) output HEVC and H.264 encoding supporting dual stream (4K30p + 720p30, bitrate: 32Kbps ~ 50Mbps ) Optional NDI|Hx / PoE
Visuals Preis
1.943,10 CHF
o. MwSt.
2.100,49 CHF Inkl. MwSt
Herstellerpreis 2 286,00 CHF zzgl. MwSt.
Auf Bestellung
-
Lieferung
- Versand in 2 bis 3 Wochen
-
Abholung im Geschäft
- Verfügbar in 2 bis 3 Wochen
Datavideo 7000-3081 - PTC-280W Specs
| Video Output Resolution | 2160p60/59.94/50/30/29.97/25 1080p60/59.94/50/30/29.97/25 1080i60/59.94/50 720p60/59.94/50 |
| Image Sensor | 1/2.5" CMOS |
| Effective Pixels (approx.) | 8.51Mega Pixels |
| S/N Ratio | ≥55dB |
| Min. Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Zoom Ratio | 12x Optical, 16x Digital Zoom |
| Gamma Control | Off / Normal |
| Iris Control | Auto / Manual |
| Digital Noise Reductions | 2D/3D Noise Reductions |
| On-Screen Display (OSD) | English/Simplified Chinese/Traditional Chinese |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual |
| AGC / Gain Control | Yes |
| Mirror / Flip Image | Yes |
| Focus Mode | Auto/Manual |
| Panning/Tilting Range | Pan: 300° Tilt: +130° to -15° |
| Panning/Tilting Speed | Pan: 0.876°/s~43°/s Tilt: 0.693°/s ~21.32°/s |
| Preset | 255 |
| Focal Length | 12x, f = 6.7mm ~125mm, F1.58 ~ F3.95 |
| Field of View (Horizontal, Wide) | 71° |
| Image Compensation | Back light compensation |
| Video Output | HDMI 2.0 x1 ,3G-SDI x1, 10/100/1000M RJ45 x1 |
| Audio Input | 3.5 mm x1 (mic in/line in) |
| Tally LED | Yes |
| Filter | N/A |
| Protocol | Pelco-D, Peldo-P, VISCA, VISCA over IP DHCP, RTSP, RTMP (IP Cam), RTMPS, DVIP |
| Remote Control Interface | IR , Web UI , RS-422 , DVIP |
| F/W Update | Via Web UI or USB 2.0 |
| IR Control | Yes |
| Camera Control Unit | RMC-180,RMC-300A |
| Video Compression | H.264/H.265/MJPEG |
| Video Stream | Dual Stream |
| First Stream Supported Resolution | 3840x2160 , 1920x1080 , 1280x720 , 1024x576 960x540 , 640x480 , 640x360 |
| Second Stream Supported Resolution | 1280x720 , 1024x576 , 720x576 (50Hz) , 720x480 (60Hz) 720x408 , 640x360 , 480x270 , 320x240 |
| Video Bitrate | 32Kbps ~ 50Mbps (Single Stream) |
| Video Bitrate Mode | VBR, CBR |
| Encoding Framerate | 50Hz: 1-50fps 60Hz: 1-60fps |
| Audio Compression | AAC |
| Audio Bitrate | 96Kbps, 128Kbps, 256Kbps |
| Supported Protocols | TCP/IP, HTTP, RTSP, RTMP(S), ONVIF, DHCP, Multicast |
| Power | DC 12V |
| Power Consumption | DC 12V |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -40°C ~ 60°C |
| Dimension (mm) | 173 (W) x 219 (H) x 189.08 (D) |
4K(UHD) Pan/Tilt Camera in White with 1/2.5 CMOS, 12x Optical Zoom, 16x Digital Zoom, 3G-SDI x1, HDMI 2.0 x1 (4K 50/59.94/60p) output HEVC and H.264 encoding supporting dual stream (4K30p + 720p30, bitrate: 32Kbps ~ 50Mbps ) Optional NDI|Hx / PoE
