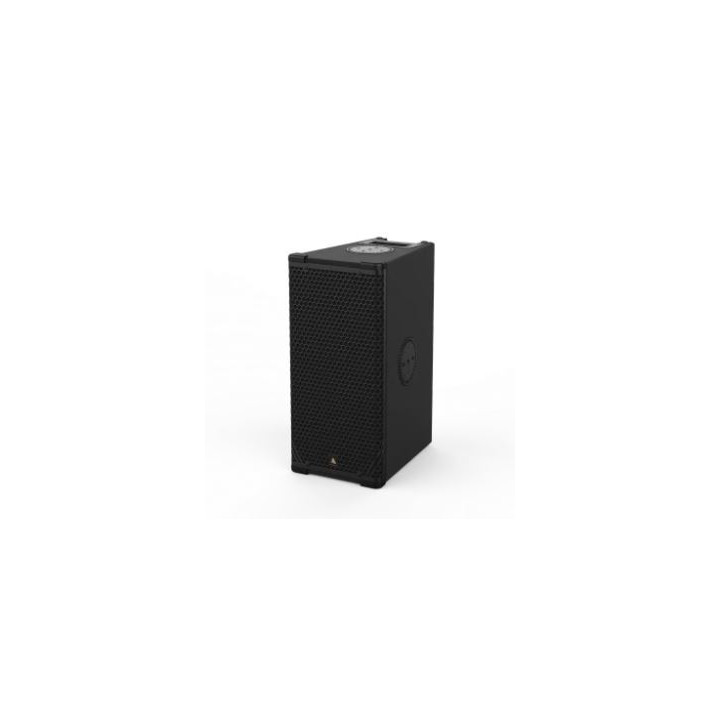

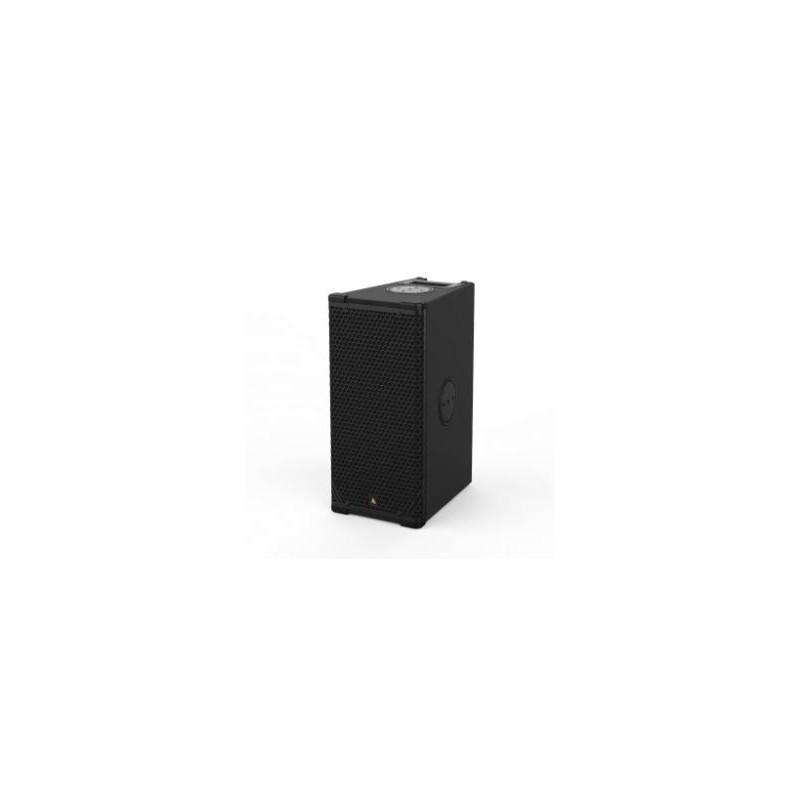

ADAMSON CS7p 100° x 50° - CS Intelligent Loudspeaker

1087885
ADAMSON CS7p 100° x 50° - CS Intelligent Loudspeaker
ADAMSON CS7p 100° x 50° - CS Intelligent Loudspeaker
Ultra-kompakte intelligente Punktquelle: 2-Wege, MF - 2x 7" ND7-LM16, HF - 1x 3" NH3-8, integriertes Rigging-System und Stativbefestigung, 100° x 50° (Rotation 90°), Class-D-Verstärkung, AVB-Netzwerk-Endpunkt, DSP
... mehr erfahren
PREIS AUF ANFRAGE
Bitte kontaktieren Sie uns

ADAMSON CS7p Specs

Frequency Range (+/-3 dB) 80 Hz - 18 kHz
Nominal Directivity (-6 dB) H x V 70° x 40° or 100° x 50°
Maximum Peak SPL** 136.5 dB
Components LF 2x ND7-LM16 7” Kevlar® Neodymium Driver
Components HF Adamson NH3 3” Diaphragm / 1.4” Exit Compression Driver
Rigging Integrated Rigging System, Built-in Polemount Socket
Connection Power: powerCON TRUE1 Network: 2x etherCON Analog: 2x XLR
Height Front (mm / in) 527 / 20.75
Width (mm / in) 249 / 9.8
Depth (mm / in) 355.6 / 14
Weight (kg / lbs) 19 / 41.9
Amplification 2 channel Class-D, 2400 W total output
Input Voltage 100 - 240 V
Current Draw at 230v 0.45 A rms idle, 1.6 A rms long-term, 9 A max peak
Supported Processing Onboard / Proprietary
Amplifier Channels 2 Channels, Class-D, Channel 1: 2000 W (LF), Channel 2: 400 W (HF)
Ultra-kompakte intelligente Punktquelle: 2-Wege, MF - 2x 7" ND7-LM16, HF - 1x 3" NH3-8, integriertes Rigging-System und Stativbefestigung, 100° x 50° (Rotation 90°), Class-D-Verstärkung, AVB-Netzwerk-Endpunkt, DSP
