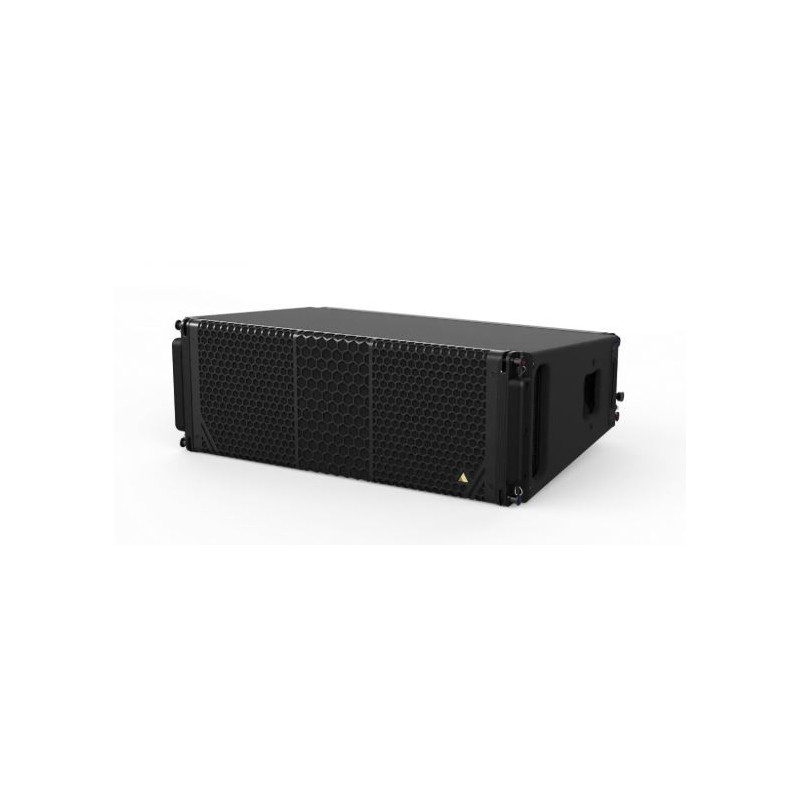

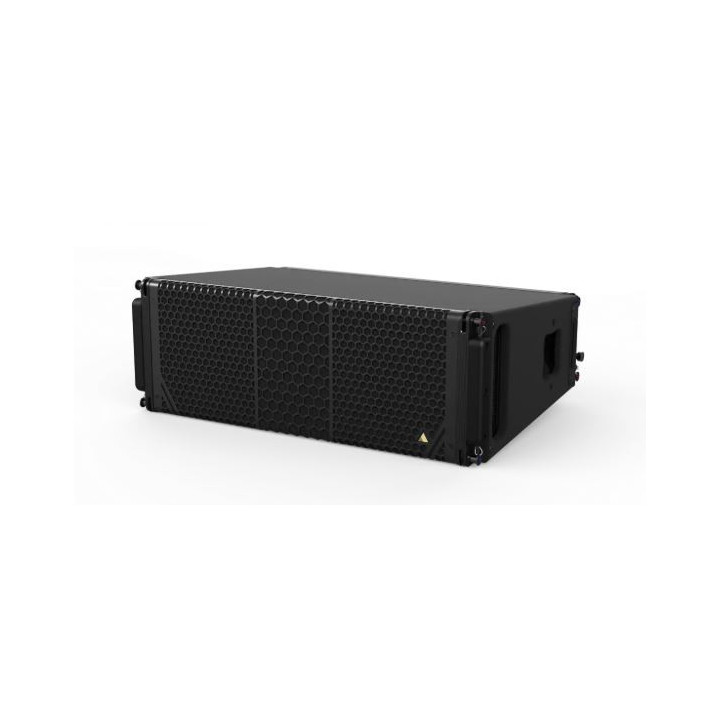

ADAMSON CS10 - CS Intelligent Loudspeaker
1087886
Intelligente sub-kompakte Line-Array-Quelle: 2-Wege, MF - 2x 10" ND10-LM, HF - 1x 4" NH4TA2, 110° x 10° (HxV), SlideLock-Rigging-System, Klasse-D-Verstärkung, AVB-Netzwerk-Endpunkt, DSP
ADAMSON CS10 - CS Intelligent Loudspeaker Specs
| Frequency Range (+/-3 dB) | 60 Hz - 18 kHz (+/-3 dB) |
| Nominal Directivity (-6 dB) H x V | 110° x 10° |
| Maximum Peak SPL** | 141.3 dB |
| Components LF | 2x ND10-LM 10” Kevlar® Neodymium Driver |
| Components HF | Adamson NH4 4” Diaphragm / 1.5” Exit Compression Driver |
| Rigging | Slidelock Rigging System |
| Connection | Power: powerCON TRUE1 Network: 2x etherCON Analog: 2x XLR |
| Height Front (mm / in) | 265 / 10.4 |
| Height Back (mm / in) | 178 / 7 |
| Width (mm / in) | 737 / 29.0 |
| Depth (mm / in) | 526 / 20.7 |
| Weight (kg / lbs) | 31 / 68.3 |
| Amplification | 2 channel Class-D, 2400 W total output |
| Input Voltage | 100 - 240V |
| Current Draw at 230v | 0.45 A rms idle, 1.6 A rms long-term, 10 A max peak |
| Supported Processing | Onboard / Proprietary |
Intelligente sub-kompakte Line-Array-Quelle: 2-Wege, MF - 2x 10" ND10-LM, HF - 1x 4" NH4TA2, 110° x 10° (HxV), SlideLock-Rigging-System, Klasse-D-Verstärkung, AVB-Netzwerk-Endpunkt, DSP
