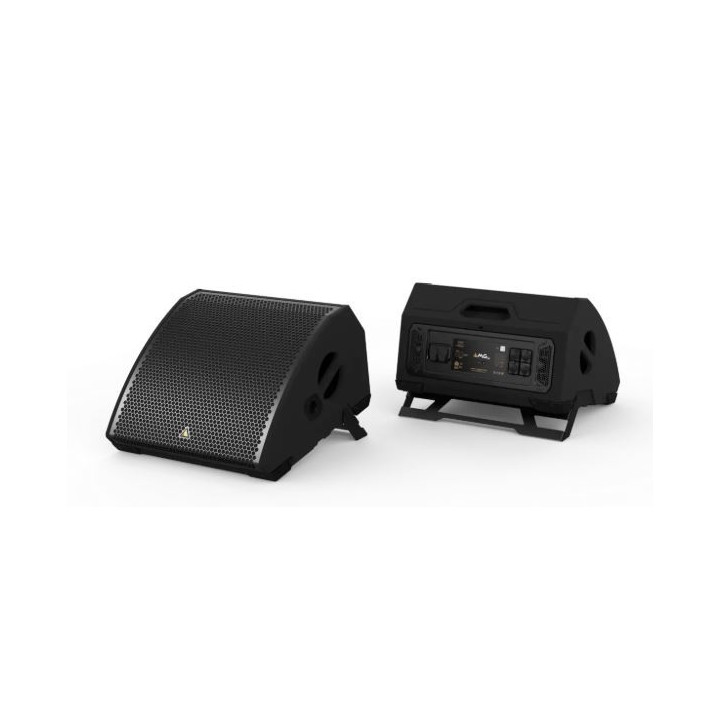

ADAMSON MG10 - Loudspeaker

1088108
ADAMSON MG10 - Loudspeaker
ADAMSON MG10 - Loudspeaker
MG10; Intelligenter Wedge-Monitor. 2-Wege, MF - 2x10" ND10-LM, HF - 1x 3" NH3-8. Stativmontage, 50x100, Klasse-D-Verstärkung, AVB-Netzwerk-Zugangspunkt, DSP
... mehr erfahren
PREIS AUF ANFRAGE
Bitte kontaktieren Sie uns

ADAMSON MG10 - Loudspeaker Specs

Frequency Range (+/-3 dB) 60 Hz - 20 kHz
Nominal Directivity (-6 dB) H x V 50° x 100°
Maximum Peak SPL** 139 dB
Components LF 2x ND10-LM 10” Kevlar Neodymium Driver
Components HF Adamson NH3 3” Diaphragm / 1.4” Exit Compression Driver
Rigging Integrated Pole Mount
Connection Power: powerCON TRUE1 Network: 2x etherCON Analog: 2x XLR
Height Front (mm / in) 324 / 12.75
Width (mm / in) 520 / 20.5
Depth (mm / in) 540 / 21.25
Weight (kg / lbs) 26 / 57.3
Amplification 2 channel Class-D, 2400 W total output
Input Voltage 100 - 240 V
Current Draw at 230v 230 V 0.45 A rms idle, 1.6 A rms long-term, 10 A maxpeak
Amplifier Channels 2 channel Class-D, 2400 W total output
Processing / Network Onboard / Proprietary
MG10; Intelligenter Wedge-Monitor. 2-Wege, MF - 2x10" ND10-LM, HF - 1x 3" NH3-8. Stativmontage, 50x100, Klasse-D-Verstärkung, AVB-Netzwerk-Zugangspunkt, DSP
