Yamaha HS7 W - Bi-Amped 2-Way Bassreflex Studio Monitor
1028196
4957812558167
Moniteur de studio bass-reflex bi-amplifié à 2 voies, 60 Watts + 35 Watts (par unité), Couleur : Blanc
Prix Visuals
218,24 CHF
HT
235,92 CHF TTC
Prix constructeur 248,00 CHF HT
Sur commande
-
Livraison
- Expédié dans 1 à 2 semaines
-
Retrait en boutiques
- Disponible dans 1 à 2 semaines

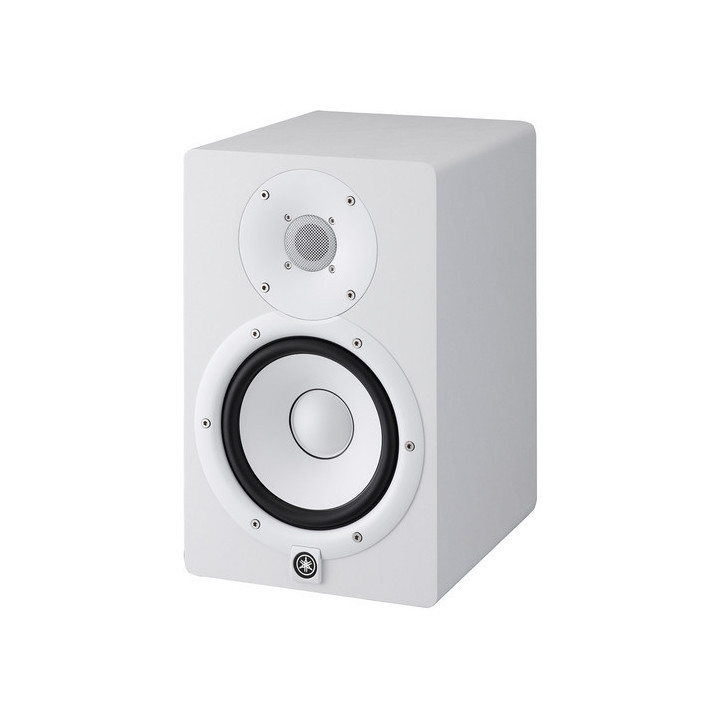

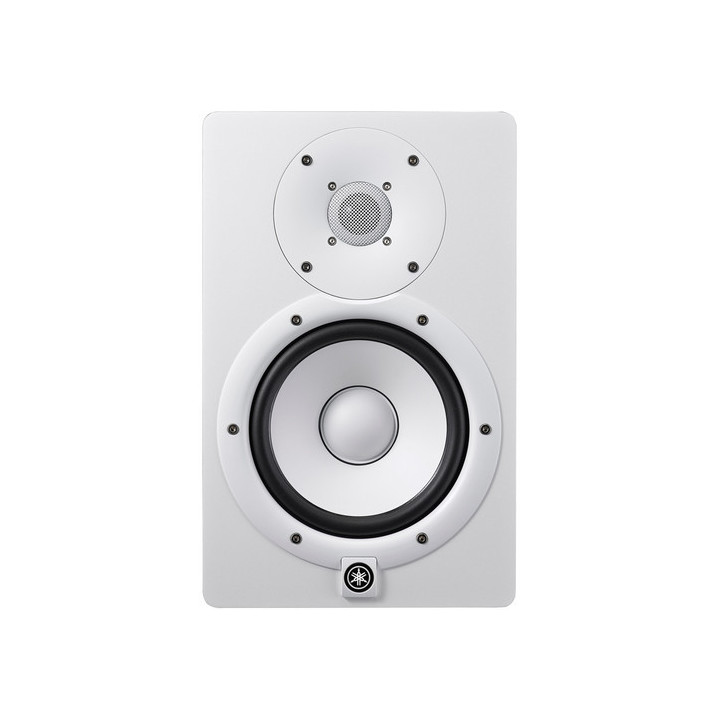

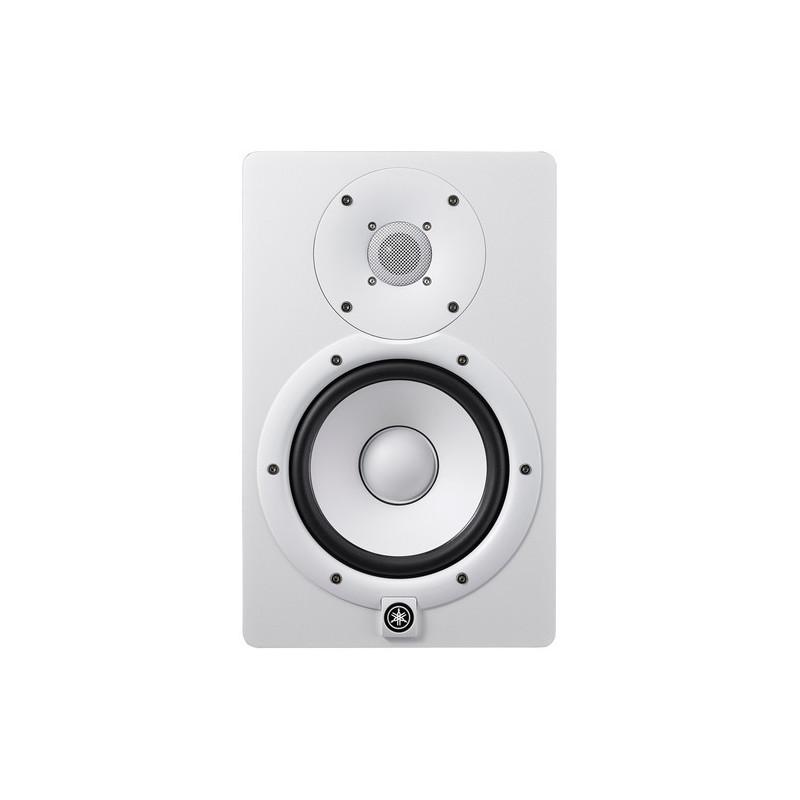

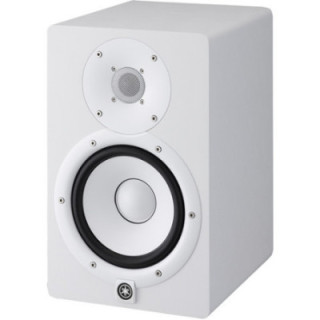

Yamaha Bi-Amped 2-Way Bassreflex Studio Monitor
The white HS7 Powered Studio Monitor from Yamaha is a 2-way reference speaker that is designed for mixing and monitoring in your home or studio. Equipped with a 95W bi-amplification system that powers a 6.5" woofer and a 1" tweeter, the HS7 is designed to offer maximum headroom, minimal distortion, and an extended response up to 30kHz. The HS7 has both an XLR and 1/4" TRS input that accept either balanced or unbalanced signals for maximum flexibility in a variety of studio setups.
Low Resonance Enclosure Design
HS Series cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their extreme limit. The enclosures are constructed from a dense MDF with a damped acoustic response. HS Series engineers also employed a traditional three-way mitered-joint technique. Common to architectural design, this construction firmly anchors the corners of the enclosure to improve durability and eliminate unwanted resonance that can influence overall sound.
Noise Reduction Technology
Speaker port design can greatly influence the clarity of overall sound. Often a vortex at the either end of the port can generate air vibrations inside of the port, causing unwanted noise. By adopting a noise reduction technology that incorporates an analysis of a visual representation of the sound, Yamaha's engineers are able to control and reduce the vortex. Through this analysis Yamaha has arrived at a port design that reduces noise up to 6dB.

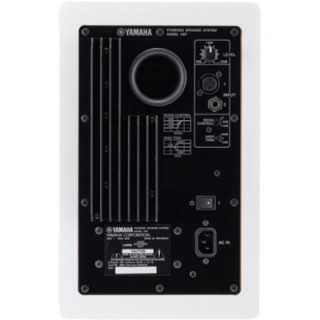

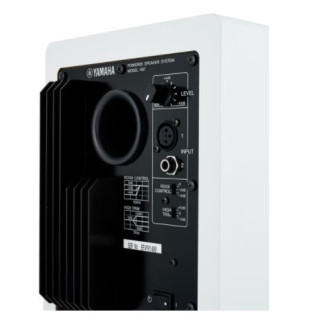

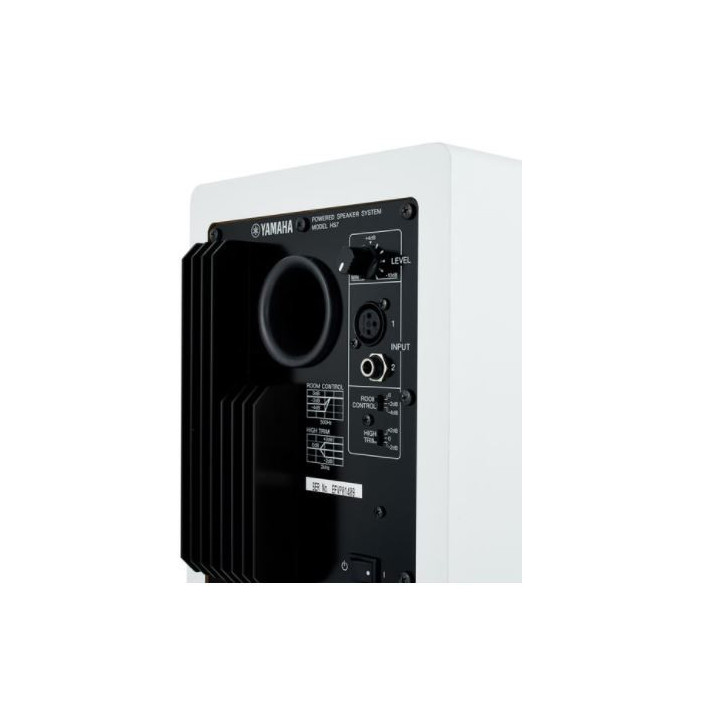

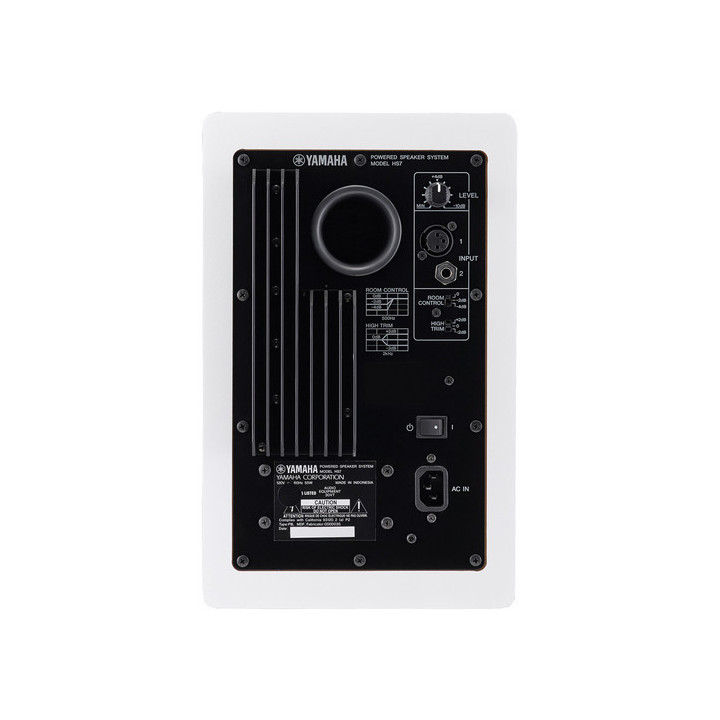

Controls and Connectivity
HS Series full-range models feature two response controls with settings that allow them to adapt to the surface acoustics of rooms of varying shape and size. ROOM CONTROL allows you to attenuate the unnatural, exaggerated low-end that can often occur when speakers are placed next to walls, while HIGH TRIM allows for more flexible control of high frequency response. For inputs, HS full-range speakers can accommodate a range of balanced and unbalanced sources such as mixers, keyboards and audio interfaces with XLR and TRS phone jacks.
Features
- High-performance drivers and mounting system
- 6.5" cone woofer, 1" dome tweeter
- Large magnets in an Advanced Magnetic Circuit design
- Built-in bi-amplification: 60W LF, 35W HF
- Dedicated power amps are perfectly matched to the woofer and tweeter
- Enclosure is designed to kill unwanted resonances that can influence sound
- Room-control and high-trim response controls give you optimum response in any room
The white HS7 Powered Studio Monitor from Yamaha is a 2-way reference speaker that is designed for mixing and monitoring in your home or studio. Equipped with a 95W bi-amplification system that powers a 6.5" woofer and a 1" tweeter, the HS7 is designed to offer maximum headroom, minimal distortion, and an extended response up to 30kHz. The HS7 has both an XLR and 1/4" TRS input that accept either balanced or unbalanced signals for maximum flexibility in a variety of studio setups.
Low Resonance Enclosure Design
HS Series cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their extreme limit. The enclosures are constructed from a dense MDF with a damped acoustic response. HS Series engineers also employed a traditional three-way mitered-joint technique. Common to architectural design, this construction firmly anchors the corners of the enclosure to improve durability and eliminate unwanted resonance that can influence overall sound.
Noise Reduction Technology
Speaker port design can greatly influence the clarity of overall sound. Often a vortex at the either end of the port can generate air vibrations inside of the port, causing unwanted noise. By adopting a noise reduction technology that incorporates an analysis of a visual representation of the sound, Yamaha's engineers are able to control and reduce the vortex. Through this analysis Yamaha has arrived at a port design that reduces noise up to 6dB.
Controls and Connectivity
HS Series full-range models feature two response controls with settings that allow them to adapt to the surface acoustics of rooms of varying shape and size. ROOM CONTROL allows you to attenuate the unnatural, exaggerated low-end that can often occur when speakers are placed next to walls, while HIGH TRIM allows for more flexible control of high frequency response. For inputs, HS full-range speakers can accommodate a range of balanced and unbalanced sources such as mixers, keyboards and audio interfaces with XLR and TRS phone jacks.
Features
- High-performance drivers and mounting system
- 6.5" cone woofer, 1" dome tweeter
- Large magnets in an Advanced Magnetic Circuit design
- Built-in bi-amplification: 60W LF, 35W HF
- Dedicated power amps are perfectly matched to the woofer and tweeter
- Enclosure is designed to kill unwanted resonances that can influence sound
- Room-control and high-trim response controls give you optimum response in any room
|
|
Specifications |
|
|
System Type |
2-Way Bi-Amped Powered Studio Monitor |
|
|
Frequency Response |
43 Hz to 30 kHz |
|
|
Crossover Frequency |
2 kHz |
|
|
Transducer |
LF: 6.5" (127 mm) Cone |
|
|
Output Power |
Total: 95W |
|
|
Input Sensitivity |
-10 dBu / 10 kΩ |
|
|
Inputs |
1x Balanced XLR3-31 Type |
|
|
Controls |
Level Control (+4 dB/Center Click) |
|
|
Indicators |
1x Power On White LED |
|
|
Power Consumption |
55 W |
|
|
Enclosure |
Type: Bass-Reflex |
|
|
Dimensions (WxHxD) |
8.3 x 13.1 x 11.2" (210 x 332 x 284 mm) |
|
|
Weight |
18.1 lb (8.2 kg) |
Moniteur de studio bass-reflex bi-amplifié à 2 voies, 60 Watts + 35 Watts (par unité), Couleur : Blanc
