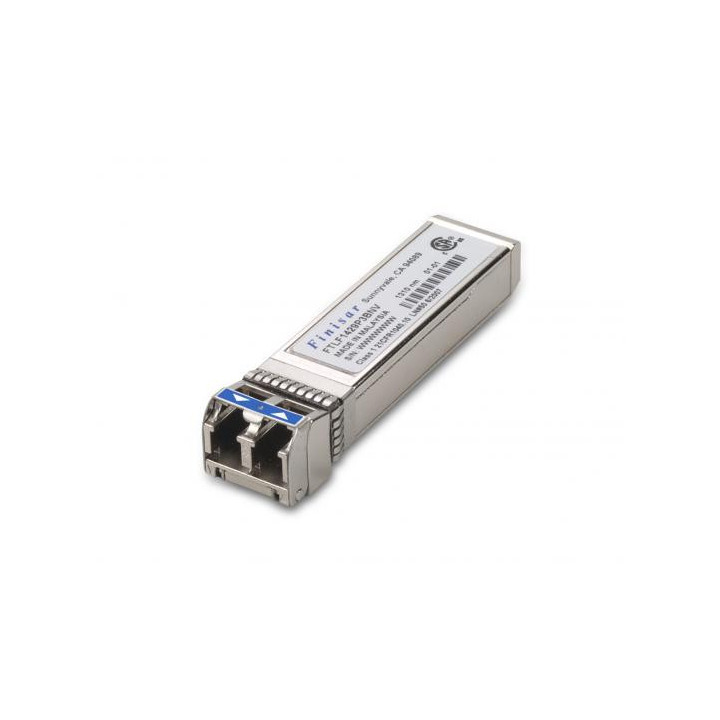

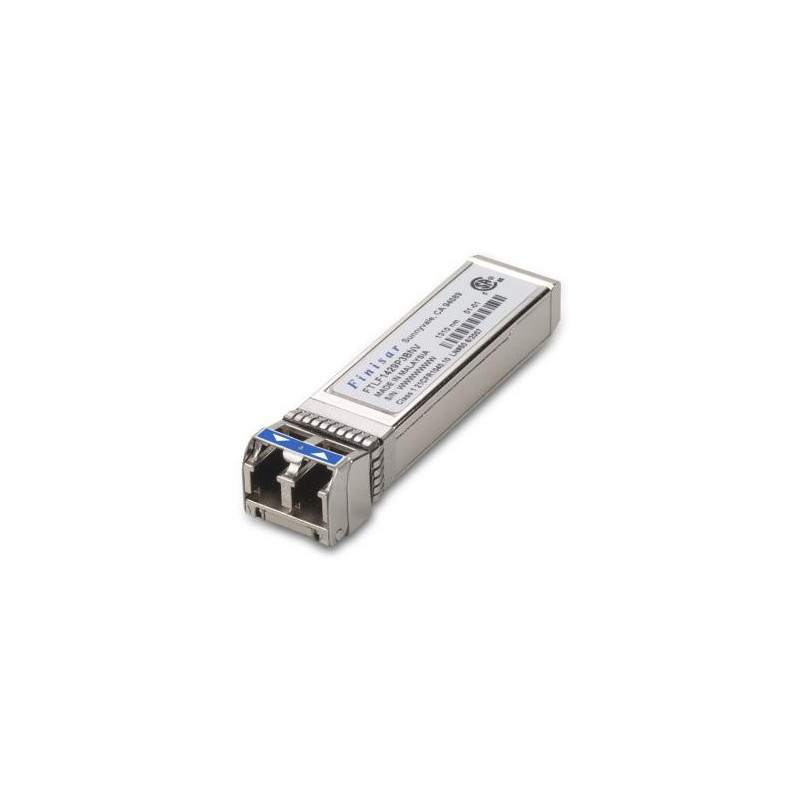

16G Fibre Channel (16GFC) 10km SFP+ Optical Transceiver
Finisar's FTLF1429P3BNV SFP+ transceivers are designed for use in Fibre Channel links up to 14.025 Gb/s data rate and up to 10 km length. They are compliant with FC-PI-5 Rev. 6.10 and SFF-8472 Rev 11.0 and SFF-8081. They are compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 4.1. The optical transceivers are compliant per the RoHS Directive 2011/65/EU.
Key features
- Up to 14.025 Gb/s bi-directional data links
- Hot-pluggable SFP+ footprint
- Built-in digital diagnostic functions
- 1310nm DFB laser transmitter
- Duplex LC connector
- RoHS compliant and Lead Free
- Up to 10 km on 9/125μm SMF
- Metal enclosure, for lower EMI
- 1 W maximum power consumption with established link
- Single 3.3V power supply
- Operating temperature range: -5°C to 85°C
Applications
- Tri-Rate 4.25/8.5/14.025 Gb/s Fibre Channel through Rate Select
- 10GBASE-LR/LW 10G Ethernet
|
|
Specifications |
|
|
Distance |
10 km |
|
|
Data Rate (max): |
14.025 Gb/s |
|
|
Protocol |
4x Fibre Channel Compliant 8x Fibre Channel Compliant 16x Fibre Channel Compliant |
|
|
Low End Case Temperature (°C): |
-5 |
|
|
High End Case Temperature (°C): |
85 |
|
|
Diagnostics: |
Digital |
|
|
Transmitter: |
DFB Laser |
|
|
Receiver: |
PIN |
|
|
Voltage Supply: |
3.3 |
|
|
Connector: |
LC |
|
|
Wavelength: |
1310nm Band |
TXRX OPT SFP+ 14.025GB/S 1310NM
