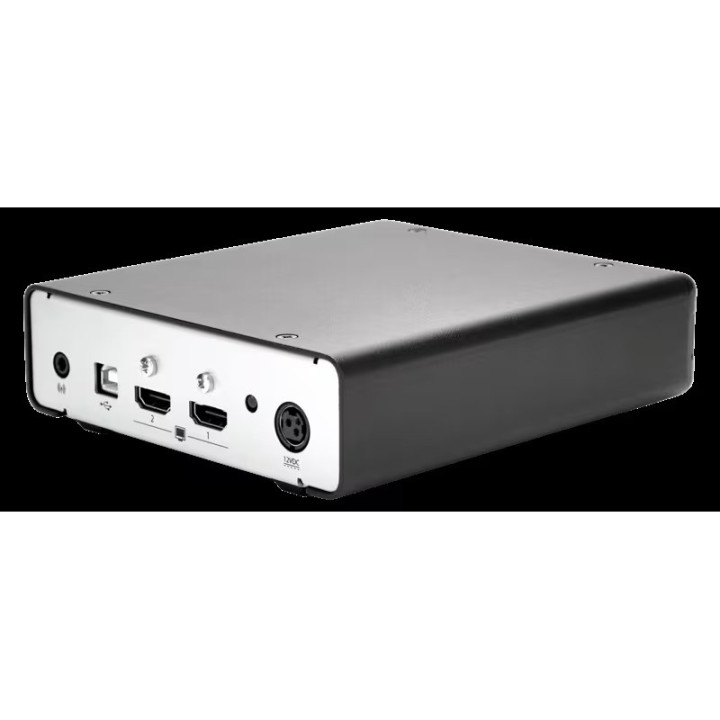

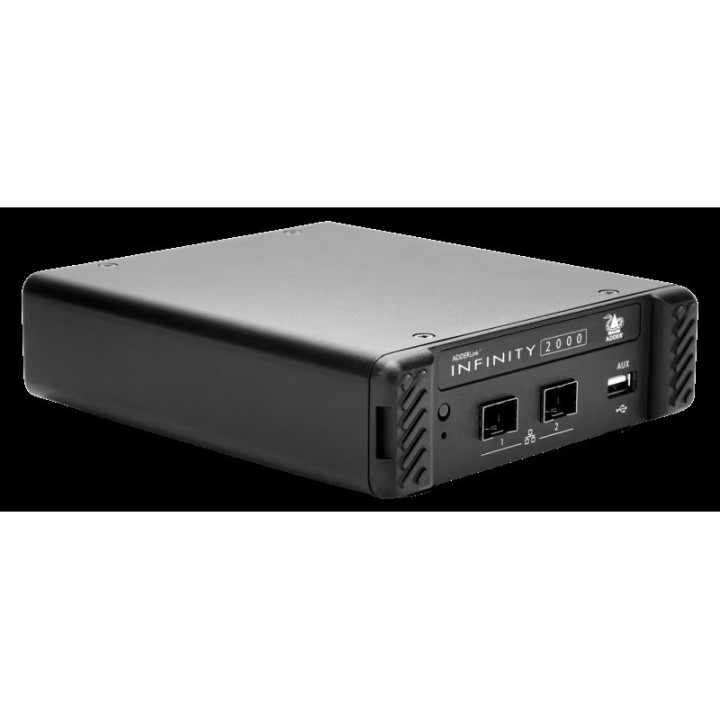

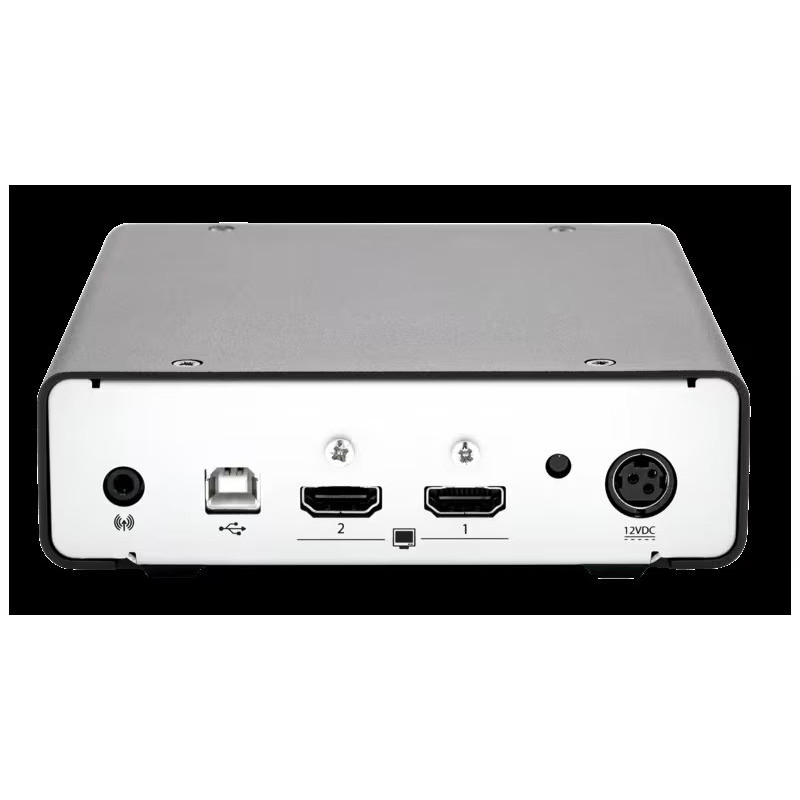

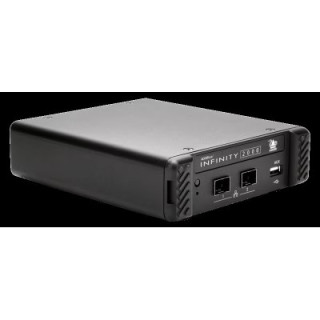

Adder - AdderLink Infinity 2000 Dual Head HDMI transmitter with Dual SFP cages
Adder ALIF2124T - AdderLink Infinity 2000 Dual Head HDMI transmitter with Dual SFP cages
1079711
Transmetteur AdderLink Infinity 2000 Dual Head HDMI avec double cage SFP
Prix Visuals
1 624,00 CHF
HT
1 755,54 CHF TTC
Sur commande
-
Livraison
- Expédié dans 2 à 3 semaines
-
Retrait en boutiques
- Disponible dans 2 à 3 semaines
|
|
Specifications |
|
| Video Information (For 1 Screen) | ||
| Maximum Resolution | 2560 x1600 | |
| Frame Rate | 60 | |
| Colour Depth | 8 bpc | |
| Video Information (For 2 Screens) | ||
| Maximum Resolution | 1920 x 1200 | |
| Frame Rate | 60 | |
| Colour Depth | 8 bpc | |
| Additional Video Information | ||
| Additional Information | The system supports up to 1x 2560x1600 @60Hz or 2x 1920x1200 @60Hz | |
| Computer Connections | ||
| USB B | 1× 2.0 True Emulation, High Speed | |
| USB A | 1× 2.0 True Emulation | |
| HDMI® | 2 | |
| Link Ports | ||
| SFP | 2× | |
| Serial Ports | ||
| Serial Standard | RS232 | |
| Maximum Baud Rate | 115,2 | |
| Serial Additional Information | RS232 or other serial standards can be passed between the units to a maximum baud rate of 115,200 by using serial to USB converters | |
| Audio Connections | ||
| Audio Type | Analog/Digital | |
| Channels | 2 | |
| Audio In Ports | 1× 3.5mm jack | |
| Audio Direction | Bi-directional | |
| Size (bit) | 16 | |
| Speed (kHz) | 48 | |
| Additional Information | Analog audio and audio via digital video connector is uni-directional. USB audio is bi-directional | |
| Network Support | ||
| Bandwidth | 1GbE | |
| 10/100 Support | No | |
| Network Additional Information | test | |
| Environmental | ||
| Operating Temperature | 0 - 40 °C / 32 - 104 °F | |
| Storage Temperature | 0 - 40 °C / 32 - 104 °F | |
| Operating Humidity (%) | 10% - 90% (non-condensing) | |
| Storage Humidity (%) | 10% - 90% (non-condensing) | |
| Altitude | 2000m / 6561.7ft | |
| Mean Time Between Failure (MTBF) | 210,000 h | |
| MTBF Standard | Telcordia SR332 Issue 4 March 2016 Calculated @ 55C | |
| Temperature Regulation | Fanless | |
| Power Source | ||
| 12V 3-pin | 1× | |
| Input Power Supply | External Power Supply Unit (see manual) | |
| Power Consumption | ||
| Maximum Power (Watts) | 18 | |
| Typical Power (Watts) | 7 | |
| Physical Design | ||
| Construction Material | Robust metal construction | |
| U size | 1 | |
| Width | 136mm / 5.4in | |
| Height | 39mm / 1.5in | |
| Depth | 150mm / 5.90in | |
| Weight | 0.8kg / 1.8lb | |
| Compatibility | ||
| OS Compatibility | All known operating systems | |
| System Requirements | Does not support HDCP or CEC control | |
| Approvals and Standards | ||
| Approvals | CE, cULus - E476334, FCC, ICES, RCM, UKCA | |
| Standards | ANSI 63.4, EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN61000-3-2, EN61000-3-3, EN63000, FCC pt15B, ICES003 | |
| Other | Cal Prop 65, China ROHS, EU REACH, UK REACH | |
| Ordering Information | ||
| Code | Description | |
| ALIF2124T-XX | ALIF2124 Transmitter | |
Transmetteur AdderLink Infinity 2000 Dual Head HDMI avec double cage SFP
