Datavideo - 5-Channel All-in-one Streaming Switcher

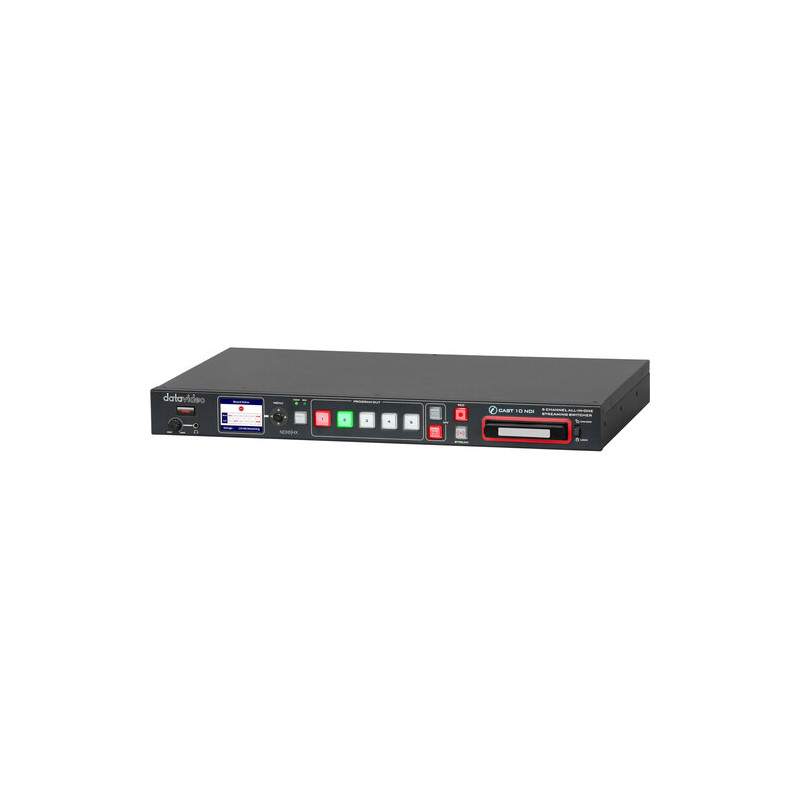

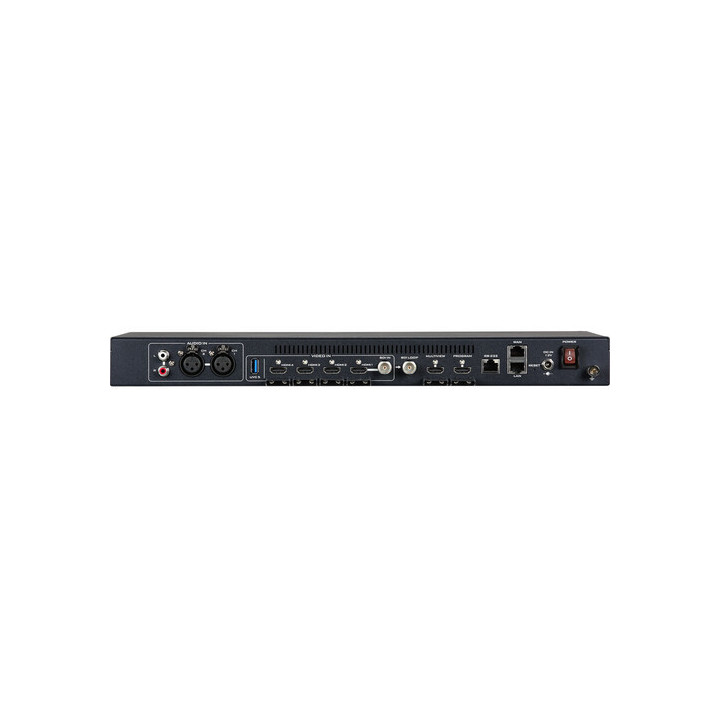

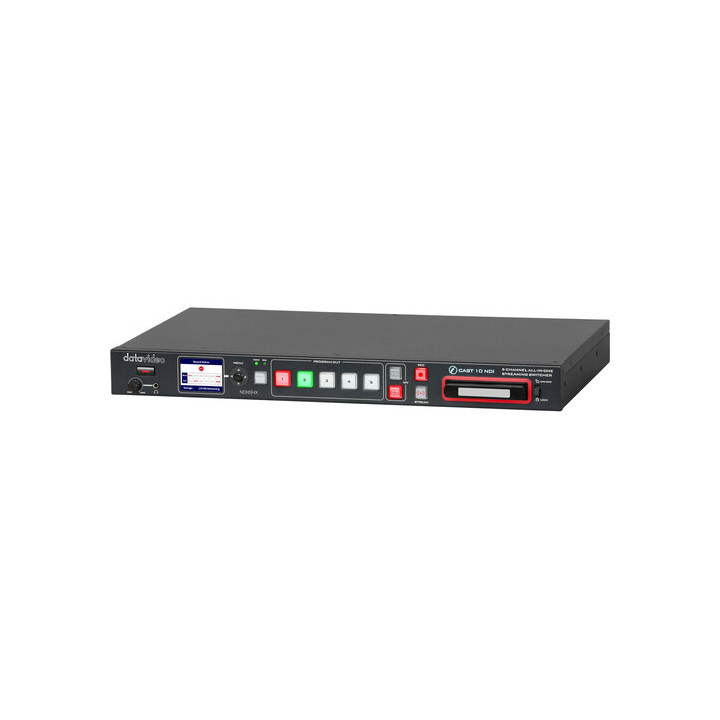

Datavideo iCast-10NDI - 5-Channel All-in-one Streaming Switcher
1057466
iCAST 10NDI is a new and innovative live production unit that houses a multi format switcher, camera controller, recorder and streaming encoder in one box. A variety of inputs can be connected to iCAST 10NDI to allow you to create an eye catching presentation. Supporting camera control and formats like SRT, RTSP, RTMP, NDI and HDMI ensures maximum connectivity.
Prix Visuals
2 854,98 CHF
HT
3 086,23 CHF TTC
Prix constructeur 3 358,80 CHF HT
Sur commande
-
Livraison
- Expédié dans 2 à 3 semaines
-
Retrait en boutiques
- Disponible dans 2 à 3 semaines
|
|
Specifications |
|
| Processing | ||
| Switching Type | Pushbutton, Touchscreen | |
| Processing Resolution | 1080p | |
| Input | ||
| Video Inputs | 1 x BNC (3G-SDI) 4 x HDMI (HDMI 1.4) 1 x USB-A (UVC) |
|
| Input Video Format | HDMI / SDI 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 59.94 fps 576i / 625 lines 50 fps |
|
| Audio Inputs | 2 x XLR 3-Pin Mono Analog Female 1 x 2RCA Stereo Analog |
|
| Embedded Audio Input | HDMI SDI |
|
| Output | ||
| Video Outputs | 1 x BNC (3G-SDI) (Loop Output) 1 x DisplayPort (HDMI 1.4) (Program) 1 x HDMI (HDMI 1.4) (Preview) |
|
| Audio Outputs | 1 x 1/8" / 3.5 mm TRS Analog | |
| Connectivity | ||
| Other I/O | 2 x RJ45 LAN Input/Output | |
| HDCP Support | None | |
| Hardware | ||
| Wi-Fi | None | |
| Bluetooth | None | |
| Power | ||
| Power I/O | 1 x Barrel (12 VDC) Input | |
| Power Consumption | 24 W | |
| Environmental | ||
| Operating Temperature | 32 to 104°F / 0 to 40°C | |
| General | ||
| Rack Form Factor | 1 RU | |
| Dimensions | 17.3 x 11.2 x 1.7" / 440 x 284 x 44 mm | |
| Weight | 6.4 lb / 2.9 kg | |
iCAST 10NDI is a new and innovative live production unit that houses a multi format switcher, camera controller, recorder and streaming encoder in one box. A variety of inputs can be connected to iCAST 10NDI to allow you to create an eye catching presentation. Supporting camera control and formats like SRT, RTSP, RTMP, NDI and HDMI ensures maximum connectivity.
