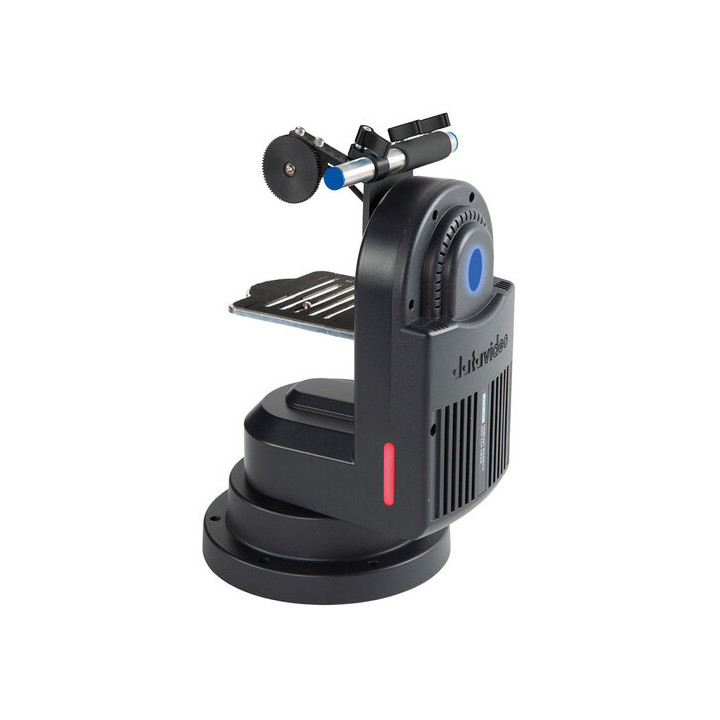

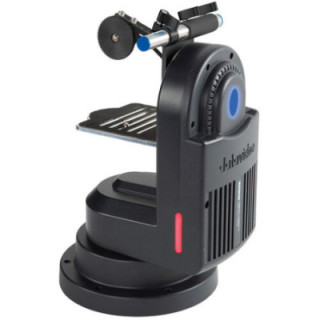

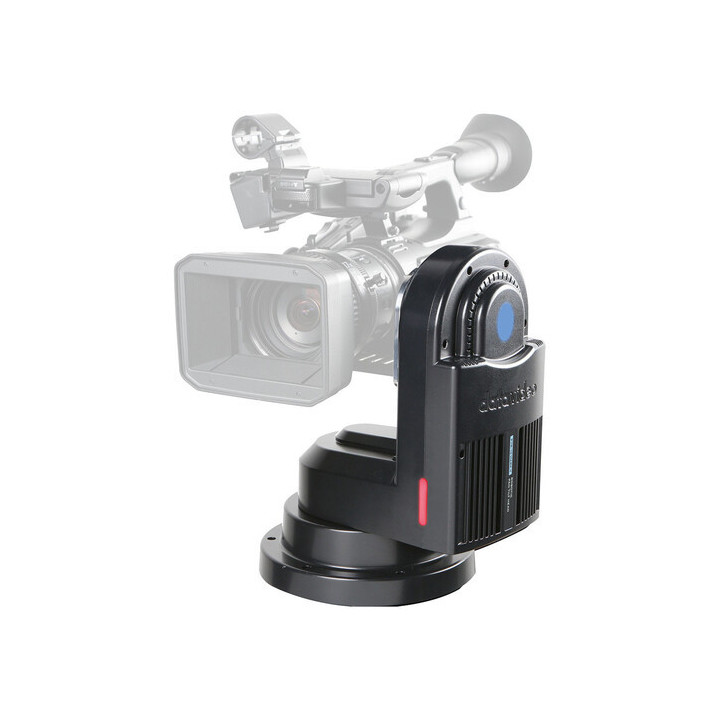

Datavideo - Mounting Kit to Motorize Lens (PTR-10)

Datavideo ZEK-2 - Mounting Kit to Motorize Lens (PTR-10)

1057465
Datavideo ZEK-2 - Mounting Kit to Motorize Lens (PTR-10)
Datavideo ZEK-2 - Mounting Kit to Motorize Lens (PTR-10)
Datavideo ZEK-2 - Mounting Kit to Motorize Lens (PTR-10)
Datavideo ZEK-2 - Mounting Kit to Motorize Lens (PTR-10)
Rotary encoder for Lens preset function PTR-10MKII and the PTR-10TMKII to be used with non-motorized lenses
... learn more
Visuals Price
466.80 CHF VAT excl.

504.61 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks



Specifications


Pan & Tilt Range Pan: 340°
Tilt: ±45°
Pan & Tilt Speed Pan: 0.12~15°/Sec
Tilt: 0.06~10°/Sec
Preset Positions Pan: 50
Tilt: 50
Load Capacity 8.82 lb / 4 kg
Supported Video Formats SDI: 6G
HDMI: 1.4
Control Protocols
Visca
DVIP

Units
IR
RMC-180 (Not Included)
RMC-300A (Not Included)

Output
RS-232
RS-422
BX-Lens
LANC
Connections Video
SDI Input: 1 x BNC
SDI Output: 1 x BNC
HDMI Input: 1 x Type-A
HDMI Output: 1 x Type-A

Control
Remote Port for Camera: 1 x 8-Pin Mini-DIN
RS-232/422 Input: 1 x RJ45
RS-232/422 Output: 1 x RJ45
TAlly: 1 x port
Zoom Sensor: 1 x 4-Pin Mini-DINDC Out: 1 x D-Tap
Power Input Voltage
12 to 18 VDC

Draw
With Camera: 5A
Without Camera: 3A

Output Voltage
12, 10, 8.4, 7.4

Output Power
24 W Max
Environmental Operating
Temp: 32 to 104°F / 0 to 40°C
Humidity: 10 to 80%

Storage
Temp: 14 to 140°F / -10 to 60°C
Humidity: 5 to 80%
Dimensions 11.81 x 9.06 x 7.48" / 30 x 23 x 19 cm
Weight 7.5 lb / 3.4 kg
Packaging Info
Package Weight 11.53 lb
Box Dimensions (LxWxH) 15 x 12.9 x 12.1"
Datavideo RMC-180 Mark II PTZ Camera Controller Specs
General
Number of Supported Cameras 4 Channels via RS-422
Supported Control Protocols RS-422
VISCA
Control I/O 4 x RJ45 (RS-422, VISCA)
Other I/O 1 x USB Type-A Input
1 x DE-15/DB-15 (Tally) Input
Controls 1 x Pan/Tilt, Zoom Joystick
2 x Gain Knobs
1 x Focus Knob
1 x Iris Adjustment, Shutter Speed Knob
Programmable, Multifunction, Iris Adjustment, Shutter Speed, Focus, Auto-Focus, Camera Selection Buttons
Presets 16
Display
Touchscreen No
Power
PoE Support None
Power Connectors 1 x Barrel / Coaxial
DC Input Power 12 VDC at 1 A
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -40 to 140°F / -40 to 60°C
Physical
Security Lock Support None
Dimensions 12.2 x 6.7 x 4.9" / 310 x 170 x 125 mm
Weight 3.3 lb / 1.5 kg
Packaging Info
Package Weight 4.98 lb
Box Dimensions (LxWxH) 15.1 x 10.4 x 7.9"
Rotary encoder for Lens preset function PTR-10MKII and the PTR-10TMKII to be used with non-motorized lenses
