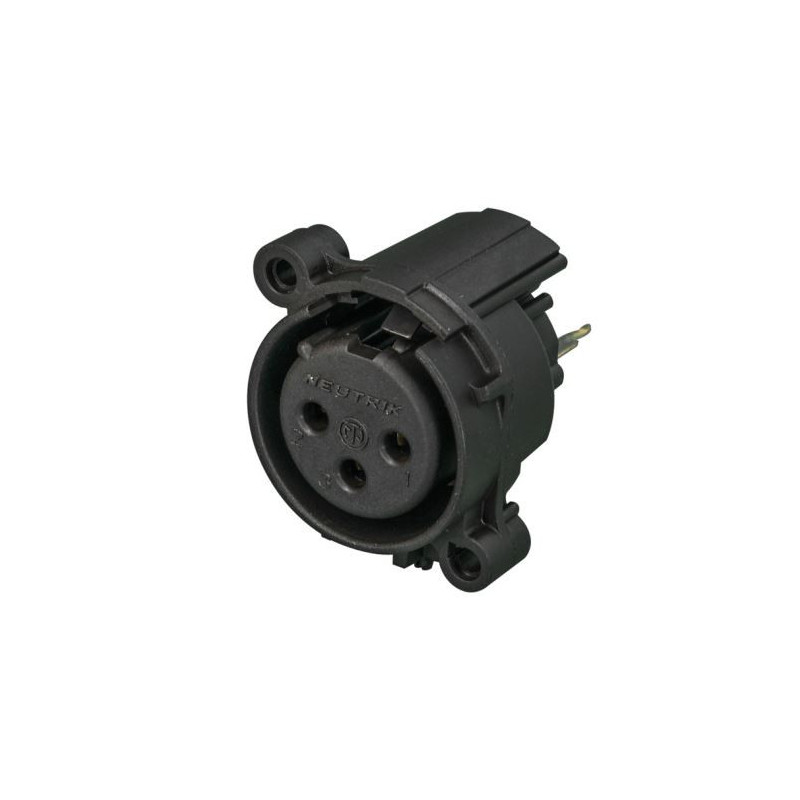

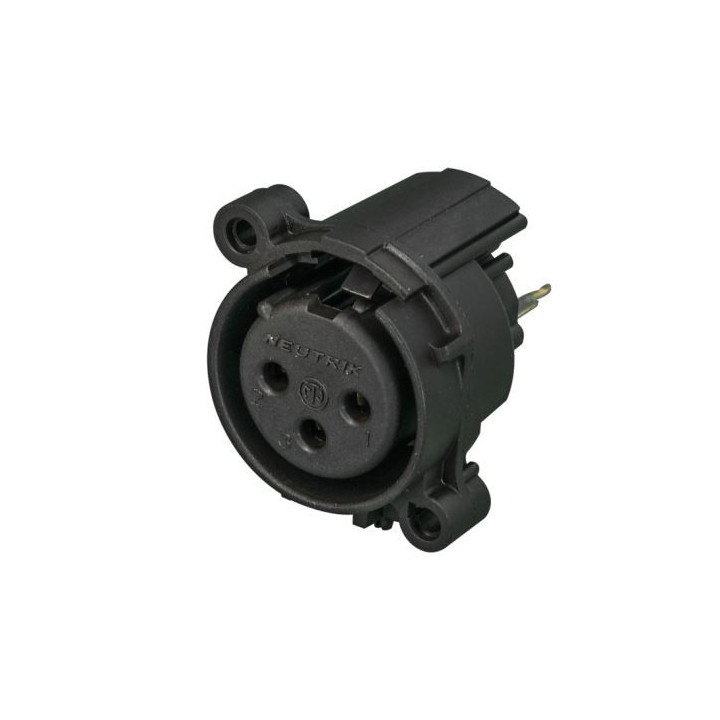

Contrik NC3FAV-0 - 3 pole female XLR receptacle without ground / shell contact
1029833
3 pole female XLR receptacle, grounding: without ground / shell contact, vertical PCB mount, Retention spring instead of latch
Visuals Price
1.12 CHF
VAT excl.
1.21 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
3-pole female XLR receptacle Neutrik without earth/shell contact
The “state of the art” receptacle. PCB-mounted XLR panel connector with round plastic body. These connectors have the smallest size and the highest mounting density (23 mm between centres). New tulip-type contacts with hard gold plating and polished contact areas. UL-recognised component.
Features
- Smallest XLR receptacles, maximum mounting density
- Plastic housing, steel retention spring
- Tulip-type female contact
- Polished contact areas and hard gold plating
- Housing flammability UL94V-0
The “state of the art” receptacle. PCB-mounted XLR panel connector with round plastic body. These connectors have the smallest size and the highest mounting density (23 mm between centres). New tulip-type contacts with hard gold plating and polished contact areas. UL-recognised component.
Features
- Smallest XLR receptacles, maximum mounting density
- Plastic housing, steel retention spring
- Tulip-type female contact
- Polished contact areas and hard gold plating
- Housing flammability UL94V-0
3 pole female XLR receptacle, grounding: without ground / shell contact, vertical PCB mount, Retention spring instead of latch
