Contrik NC3FBV2-SW - 3 pole female XLR receptacle
1029846
3 pole female XLR receptacle, switching contacts, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount
Visuals Price
8.87 CHF
VAT excl.
9.59 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

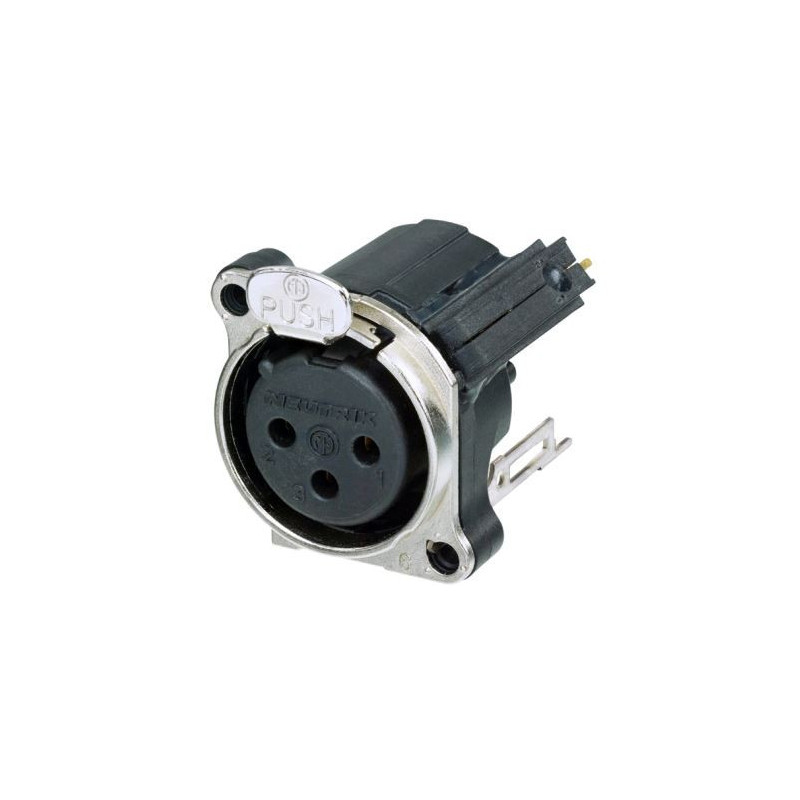

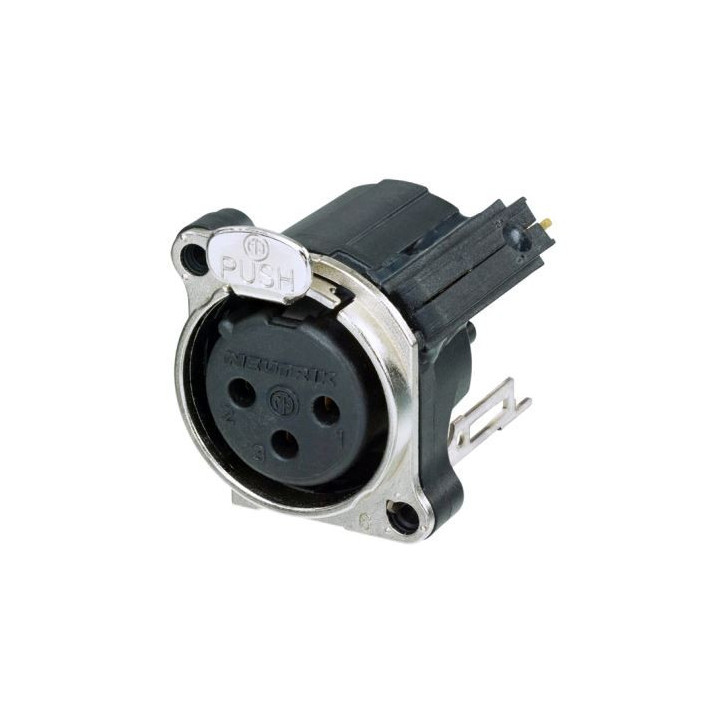

Contrik 3-pole XLR female receptacle
3-pole XLR female receptacle, switching contacts, earthing: separate earth contact to mating connector housing and front panel, vertical PCB mounting.
The switching contacts are activated by the mating connector, offering the possibility to indicate, monitor and control the mated connection. The switch provides a normally open and normally closed contact.
Identical to the A series except for a metal mounting flange featuring a continuous circumferential earth contact to the chassis for best EMC practices. UL approved component.
Features
- Metal mounting flange featuring a continuous circumferential earth contact to the chassis for improved EMC and RF protection
- Fork-type female contact
- Equipped with a rocker switch
- Normally open, normally closed contact (NO - NC)
- Switch activated by cable connector insertion
3-pole XLR female receptacle, switching contacts, earthing: separate earth contact to mating connector housing and front panel, vertical PCB mounting.
The switching contacts are activated by the mating connector, offering the possibility to indicate, monitor and control the mated connection. The switch provides a normally open and normally closed contact.
Identical to the A series except for a metal mounting flange featuring a continuous circumferential earth contact to the chassis for best EMC practices. UL approved component.
Features
- Metal mounting flange featuring a continuous circumferential earth contact to the chassis for improved EMC and RF protection
- Fork-type female contact
- Equipped with a rocker switch
- Normally open, normally closed contact (NO - NC)
- Switch activated by cable connector insertion
3 pole female XLR receptacle, switching contacts, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount
