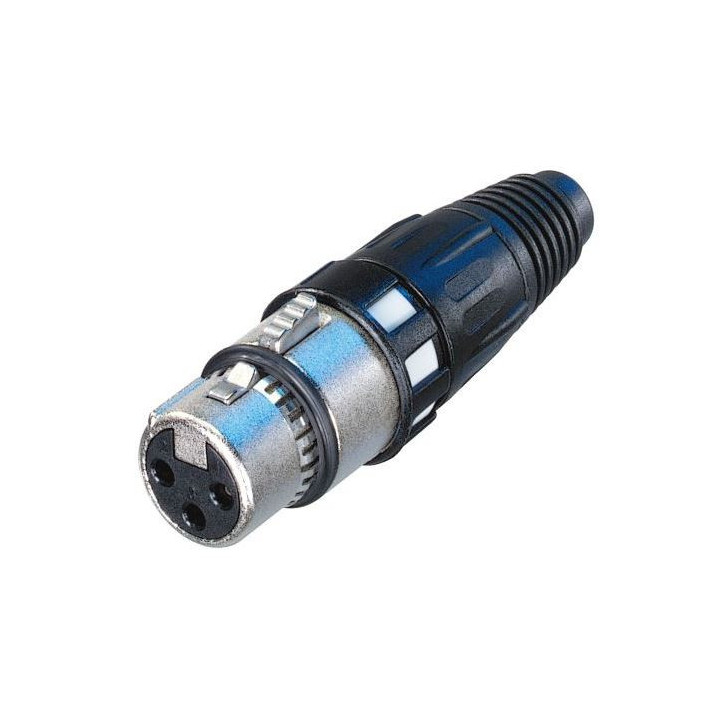

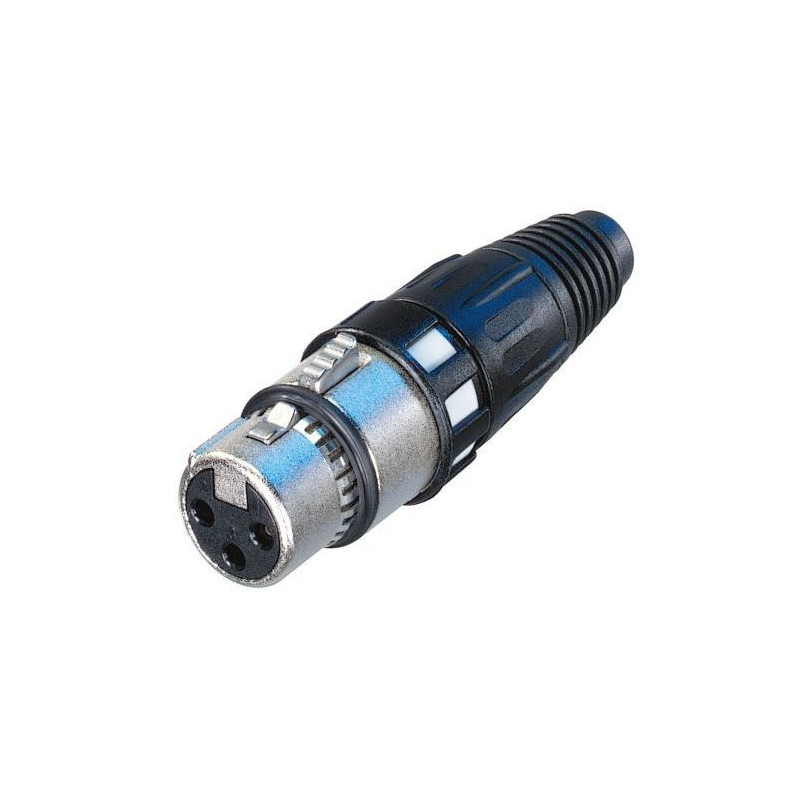

Contrik NC3FXCC - 3 pole female cable connector
1029929
3 pole female cable connector, RF-protected, gold contacts
Visuals Price
12.27 CHF
VAT excl.
13.26 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
3-pole female Contrik cable connector
3-pole female cable connector, RF protection, gold-plated contacts.
- Cable outer diameter: 5.4 - 6.2 mm
- Shield crimp size: 6.5 mm (hexagonal)
The XCC XLR connector series with peripheral shield contact provides excellent RF protection for efficient and reliable transmission of digital audio signals. This XLR is equipped with a coaxial ground spring and a coaxial hexagonal crimp ring at the cable entry for proper and reliable transition of the shield to the housing.
Features
- 3-pole cable connector with peripheral shield contact for enhanced EMI protection
- XCCR coding ring to indicate AES digital signals included
- Robust die-cast zinc housing, durable and resistant
- Collet-type cable clamp system for secure cable fixing
- Boot with rubber gasket providing high protection against bending stress
3-pole female cable connector, RF protection, gold-plated contacts.
- Cable outer diameter: 5.4 - 6.2 mm
- Shield crimp size: 6.5 mm (hexagonal)
The XCC XLR connector series with peripheral shield contact provides excellent RF protection for efficient and reliable transmission of digital audio signals. This XLR is equipped with a coaxial ground spring and a coaxial hexagonal crimp ring at the cable entry for proper and reliable transition of the shield to the housing.
Features
- 3-pole cable connector with peripheral shield contact for enhanced EMI protection
- XCCR coding ring to indicate AES digital signals included
- Robust die-cast zinc housing, durable and resistant
- Collet-type cable clamp system for secure cable fixing
- Boot with rubber gasket providing high protection against bending stress
3 pole female cable connector, RF-protected, gold contacts
