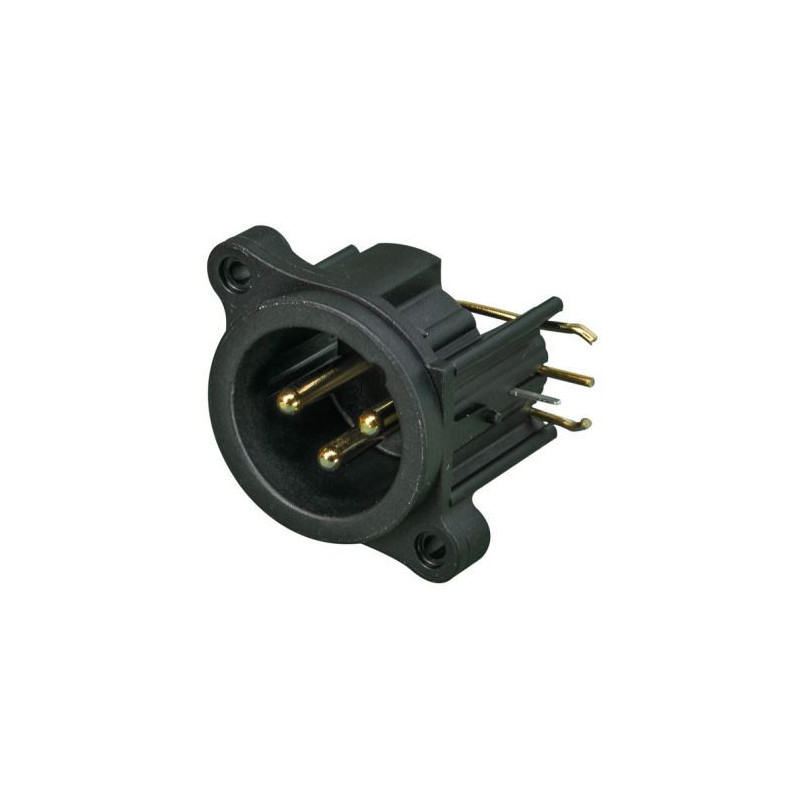

Contrik NC3MAHR - 3 pole male XLR receptacle
1029947
3 pole male XLR receptacle, grounding: ground contact connected to shell ground, but not to front panel and Pin 1, lateral right PCB mount
Visuals Price
1.52 CHF
VAT excl.
1.64 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
XLR Male 3-Pin Socket Contrik
XLR male 3-pin socket, earthing: earth contact connected to shield, but not to front panel and pin 1, right-angle PCB mounting.
The 'State of the Art' socket. XLR connector for PCB panel mounting with round plastic body. These connectors have the smallest size and highest mounting density (23 mm between centres). New fork contacts with hard gold plating and polished contact areas. UL approved component.
Features
- Smallest XLR sockets, highest mounting density
- Plastic housing, steel locking
- Polished contact areas and hard gold plating
- Housing flammability UL94V-0
XLR male 3-pin socket, earthing: earth contact connected to shield, but not to front panel and pin 1, right-angle PCB mounting.
The 'State of the Art' socket. XLR connector for PCB panel mounting with round plastic body. These connectors have the smallest size and highest mounting density (23 mm between centres). New fork contacts with hard gold plating and polished contact areas. UL approved component.
Features
- Smallest XLR sockets, highest mounting density
- Plastic housing, steel locking
- Polished contact areas and hard gold plating
- Housing flammability UL94V-0
3 pole male XLR receptacle, grounding: ground contact connected to shell ground, but not to front panel and Pin 1, lateral right PCB mount
