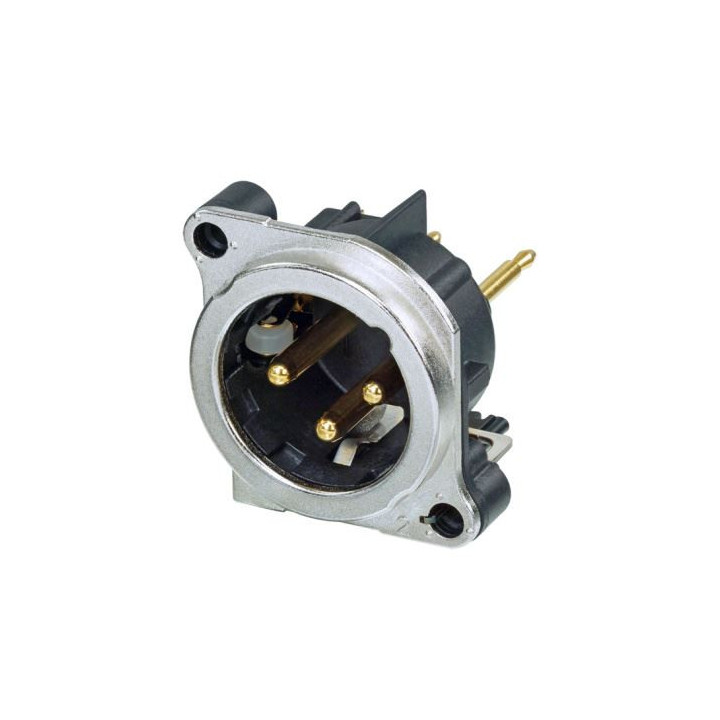

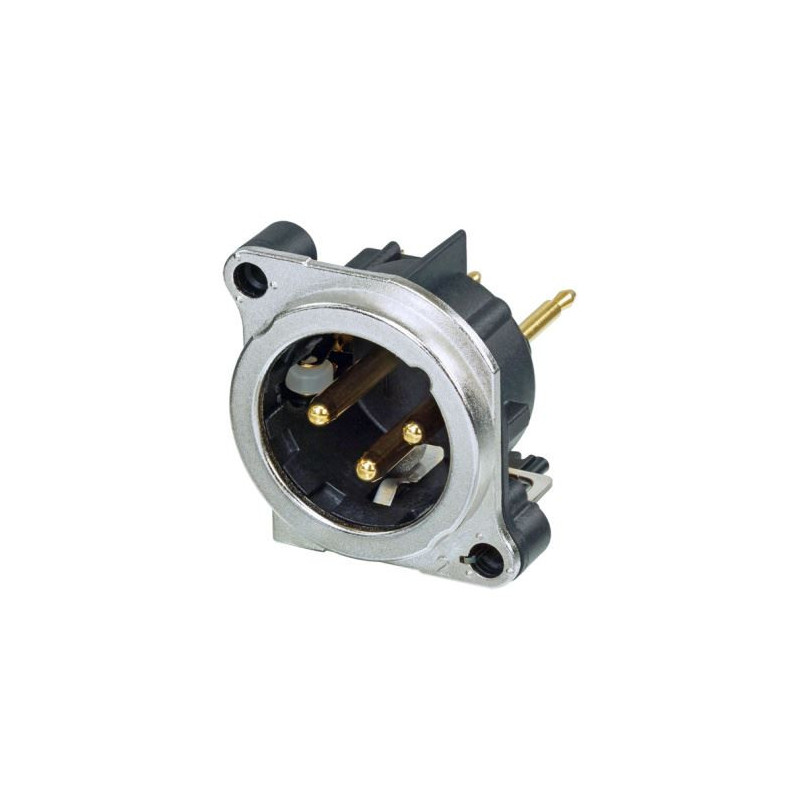

Contrik NC3MBV-SW - 3 pole male XLR receptacle
1029960
3 pole male XLR receptacle, switching contacts, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount
Visuals Price
8.62 CHF
VAT excl.
9.32 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
3-pole male XLR receptacle Contrik
3-pole male XLR receptacle, switchable contacts, earthing: separate earth contact to the mating connector housing and front panel, vertical PCB mounting. The switchable contacts are activated by the mating connector, providing the possibility to indicate, monitor and control the mated connection. The switch provides normally open and normally closed contact. Identical to the A series, except for a metal mounting flange providing continuous circumferential earthing contact with the chassis for improved EMC practice. UL recognised component. Features - Metal mounting flange providing continuous circumferential earthing contact with the chassis for improved EMC and RF protection - Equipped with a changeover switch - Normally open, normally closed contact (NO - NC) - Switch activated by cable connector insertion
3-pole male XLR receptacle, switchable contacts, earthing: separate earth contact to the mating connector housing and front panel, vertical PCB mounting. The switchable contacts are activated by the mating connector, providing the possibility to indicate, monitor and control the mated connection. The switch provides normally open and normally closed contact. Identical to the A series, except for a metal mounting flange providing continuous circumferential earthing contact with the chassis for improved EMC practice. UL recognised component. Features - Metal mounting flange providing continuous circumferential earthing contact with the chassis for improved EMC and RF protection - Equipped with a changeover switch - Normally open, normally closed contact (NO - NC) - Switch activated by cable connector insertion
3 pole male XLR receptacle, switching contacts, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount
