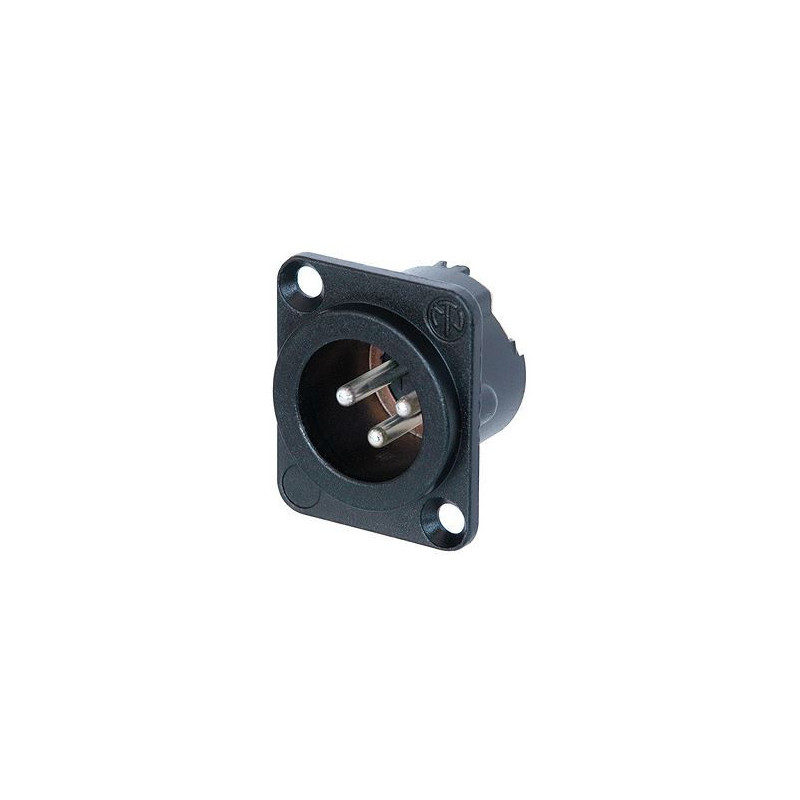

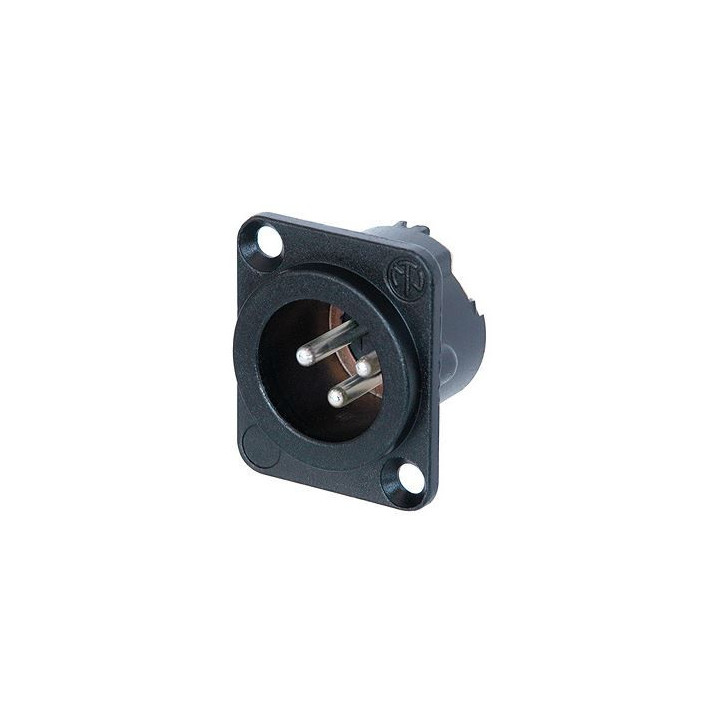

Contrik NC3MD-LX-HA-BAG - 3 pole male receptacle
1029971
3 pole male receptacle, crimp termination (Standard B-Crimp), black metal housing, silver contacts
Visuals Price
5.17 CHF
VAT excl.
5.59 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Male connector Contrik 3-pole
Male connector 3-pole, crimp connection (standard type B), black metal housing, silver-plated contacts.
The DLX series features a compact all-metal housing with an ingenious duplex ground contact, providing excellent RF protection and optimal shielding. It is the ideal partner for Neutrik's EMC XLR connector.
Features
- All-metal housing providing best overall RF protection and electromagnetic shielding
- Crimp connection with standard type B crimping tool (B-crimp according to IEC 60352-2)
- Gas-tight and solder-free connection (RoHS compliant)
- New duplex ground contact for excellent contact integrity between chassis and cable connector
- The male connector retention bar replaces the plastic design with an all-metal version improving pull-out strength
- Optional connection for easy linking of pin 1 to chassis ground
- D-type housing ensuring installation compatibility with industry-standard mounting dimensions
Male connector 3-pole, crimp connection (standard type B), black metal housing, silver-plated contacts.
The DLX series features a compact all-metal housing with an ingenious duplex ground contact, providing excellent RF protection and optimal shielding. It is the ideal partner for Neutrik's EMC XLR connector.
Features
- All-metal housing providing best overall RF protection and electromagnetic shielding
- Crimp connection with standard type B crimping tool (B-crimp according to IEC 60352-2)
- Gas-tight and solder-free connection (RoHS compliant)
- New duplex ground contact for excellent contact integrity between chassis and cable connector
- The male connector retention bar replaces the plastic design with an all-metal version improving pull-out strength
- Optional connection for easy linking of pin 1 to chassis ground
- D-type housing ensuring installation compatibility with industry-standard mounting dimensions
3 pole male receptacle, crimp termination (Standard B-Crimp), black metal housing, silver contacts
