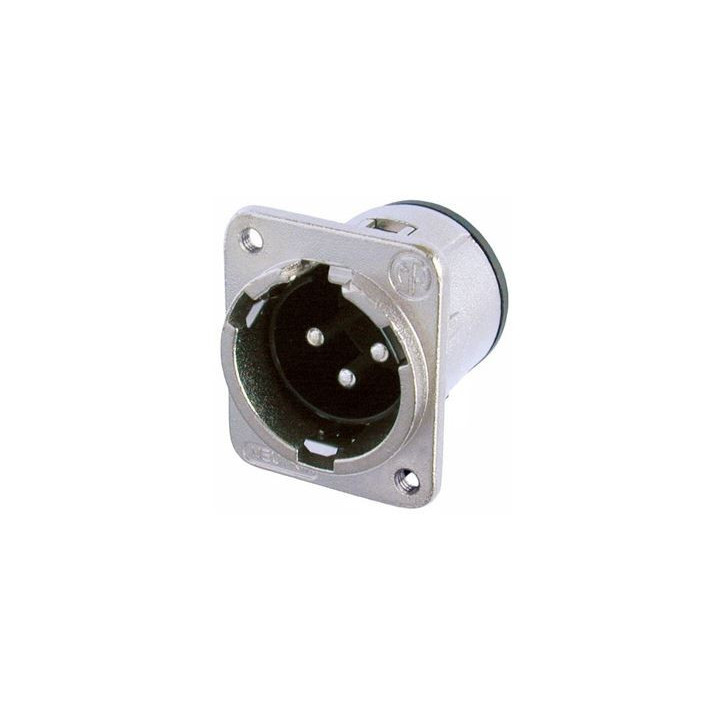

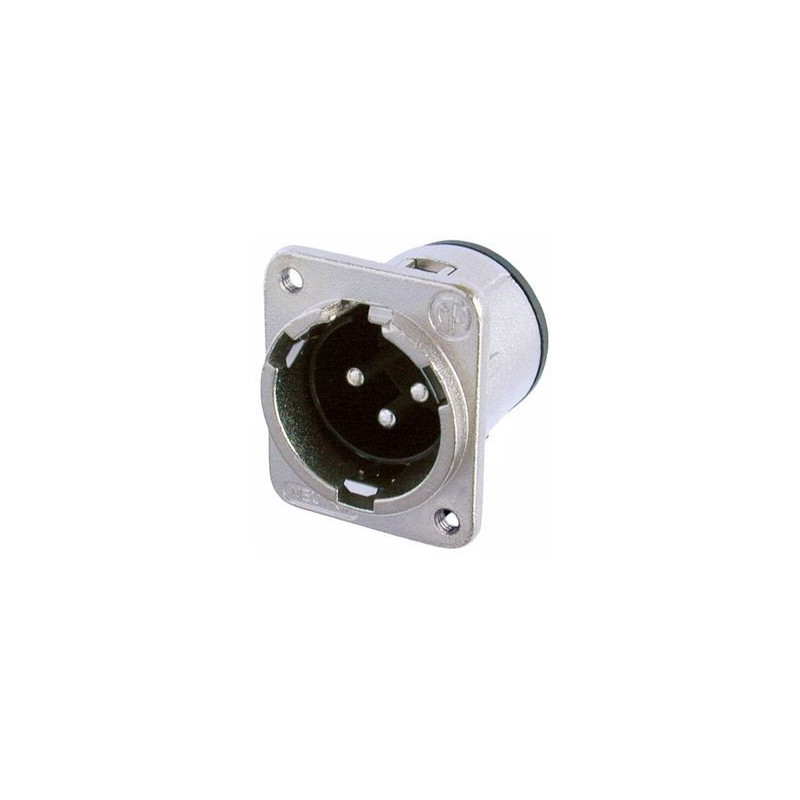

Contrik NC3MDM3-V - 3 pole male receptacle
1029981
3 pole male receptacle, vertical PCB mount, nickel housing, silver contacts, M3 mounting holes
Visuals Price
5.21 CHF
VAT excl.
5.63 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Contrik male socket 3-pole
Male socket 3-pole, vertical PCB mount, nickel-plated housing, silver-plated contacts, M3 mounting holes.
Universal series of XLR sockets for panel mounting with D-size metal body for printed circuit board mounting applications. The insert is removable from the housing for easy assembly. UL recognised component.
Features
- D-shaped metal housing
- Optimal RF protection thanks to 3 shielding contacts
- The insert is removable from the rear of the connector and locked in place by an internal latch - allowing assembly and testing of the printed circuit board before housing assembly
- Front or rear panel mounting
Male socket 3-pole, vertical PCB mount, nickel-plated housing, silver-plated contacts, M3 mounting holes.
Universal series of XLR sockets for panel mounting with D-size metal body for printed circuit board mounting applications. The insert is removable from the housing for easy assembly. UL recognised component.
Features
- D-shaped metal housing
- Optimal RF protection thanks to 3 shielding contacts
- The insert is removable from the rear of the connector and locked in place by an internal latch - allowing assembly and testing of the printed circuit board before housing assembly
- Front or rear panel mounting
3 pole male receptacle, vertical PCB mount, nickel housing, silver contacts, M3 mounting holes
