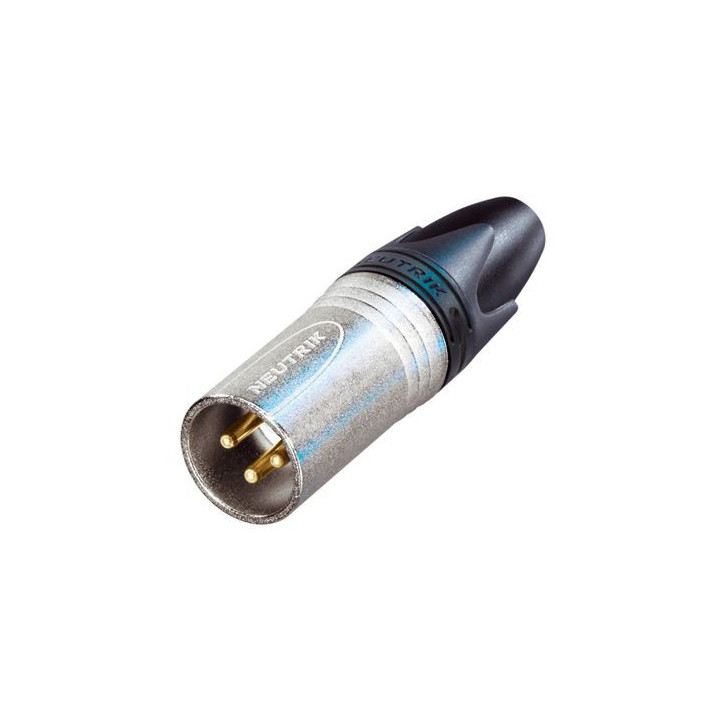

Contrik NC3MXX-EMC - 3 pole male EMC-XLR cable connector
1030001
3 pole male EMC-XLR cable connector
Visuals Price
11.70 CHF
VAT excl.
12.65 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

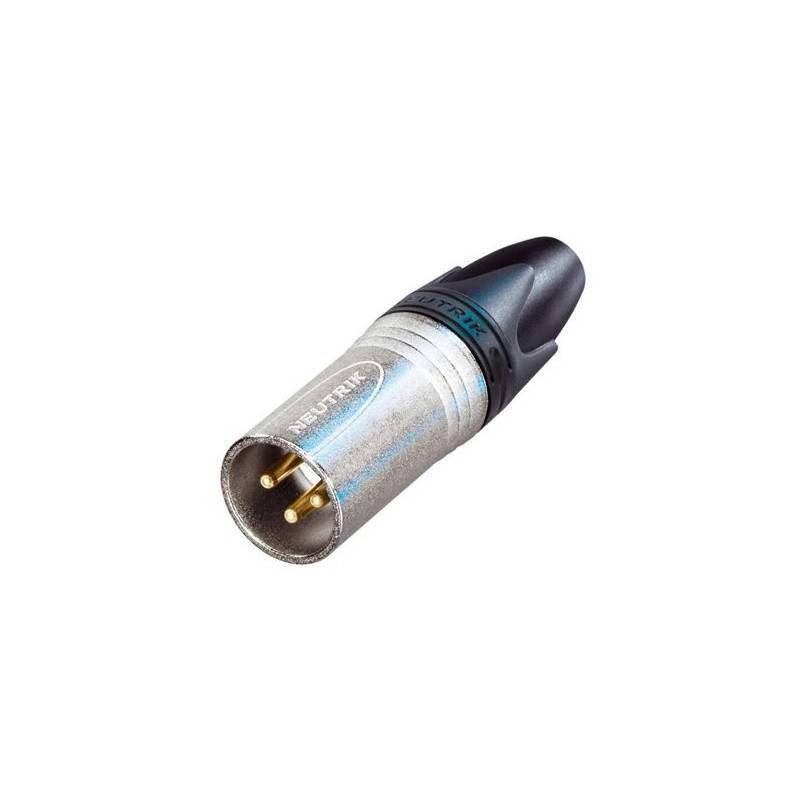

3-pole male XLR cable connector EMC Contrik
The EMC-XLR series is a specially designed version of the XX series to provide enhanced RF shielding for critical live performance and recording applications where there are particular issues with radio transmission or mobile phones. The design ensures continuous RF shielding connection from the cable to the chassis connector housing via a circular capacitor around the cable shield. The circular capacitors act as a high-pass filter with a cut-off frequency around 10 MHz., An EMI suppression ferrite bead with 24 Ohm at 1 MHz between pin 1 and the cable screen provides a low-pass filter for better RF rejection., Features, - 3-pole male and female XLR cable connector with integrated capacitive connection of the shield to the housing, - The circular capacitor around the cable shield enables a low-inductance shield connection to the connector housing, - The cable shield - pin 1 connection includes an EMI suppression bead to block high frequencies, - Avoids ground loops as there is no LF shield connection to ground, - Robust die-cast zinc housing, durable and resistant, - Chuck-type cable clamp system for secure cable clamping, - The sleeve with rubber seal offers high protection against bending stress, - Marked with a unique hologram - guarantees an authentic and original Neutrik product
The EMC-XLR series is a specially designed version of the XX series to provide enhanced RF shielding for critical live performance and recording applications where there are particular issues with radio transmission or mobile phones. The design ensures continuous RF shielding connection from the cable to the chassis connector housing via a circular capacitor around the cable shield. The circular capacitors act as a high-pass filter with a cut-off frequency around 10 MHz., An EMI suppression ferrite bead with 24 Ohm at 1 MHz between pin 1 and the cable screen provides a low-pass filter for better RF rejection., Features, - 3-pole male and female XLR cable connector with integrated capacitive connection of the shield to the housing, - The circular capacitor around the cable shield enables a low-inductance shield connection to the connector housing, - The cable shield - pin 1 connection includes an EMI suppression bead to block high frequencies, - Avoids ground loops as there is no LF shield connection to ground, - Robust die-cast zinc housing, durable and resistant, - Chuck-type cable clamp system for secure cable clamping, - The sleeve with rubber seal offers high protection against bending stress, - Marked with a unique hologram - guarantees an authentic and original Neutrik product
3 pole male EMC-XLR cable connector
