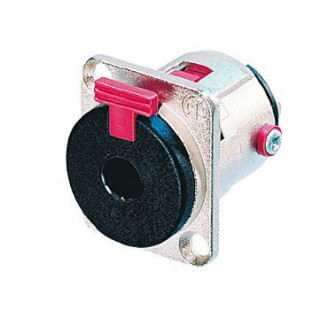

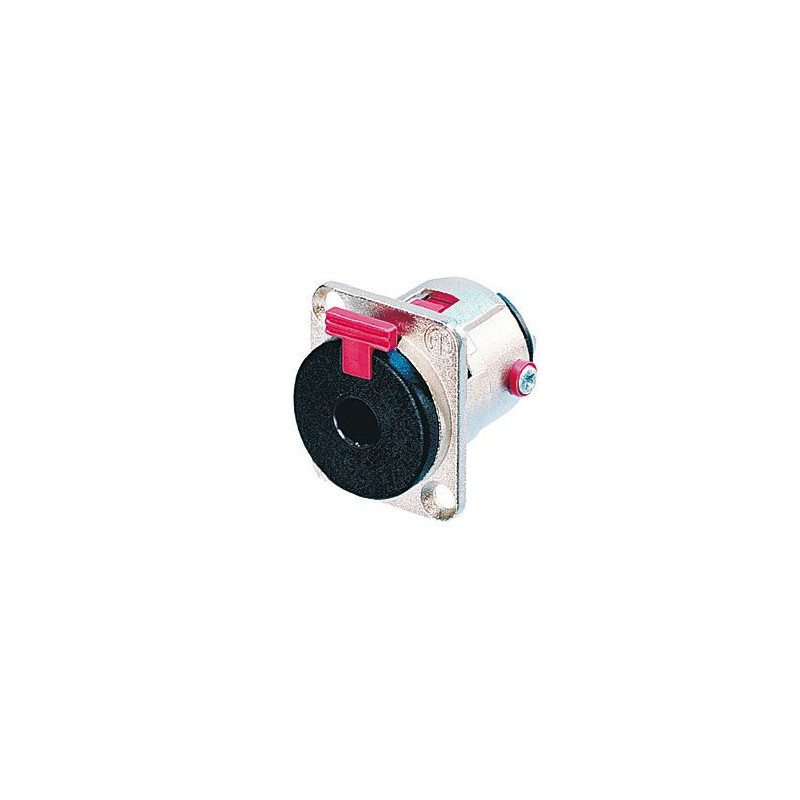

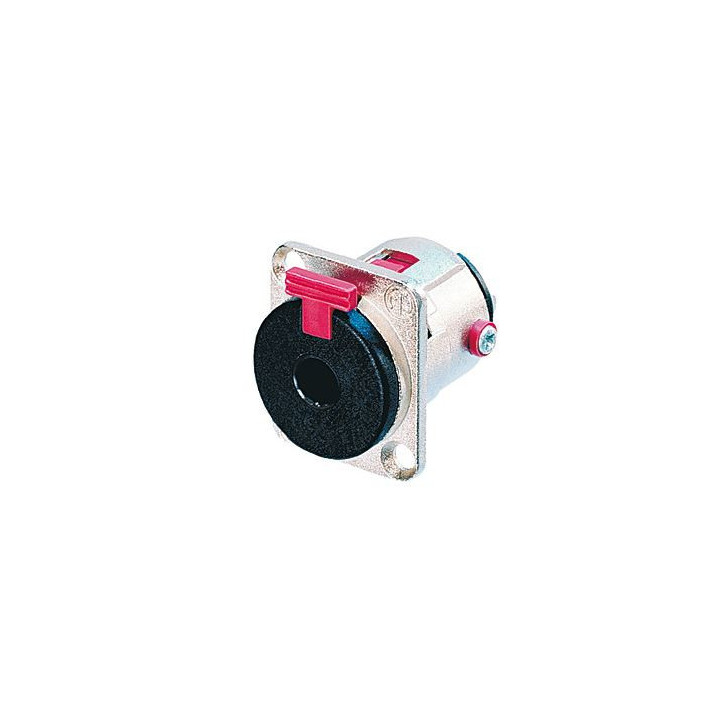

Contrik NJ3FP6C - Locking 1/4 inches phone jack
1030510
Locking 1/4 inches phone jack, D-size shell, nickel metal housing and silver contacts. The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab.
Visuals Price
8.45 CHF
VAT excl.
9.13 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Lockable Contrik 1/4 inch Jack
Lockable jack 6.35 mm, D-size housing, nickel-plated metal body and silver contacts.
The panel-mount version of the 3-pole jack offers stable and secure connections where accidental disconnection or shocks and vibrations may occur. It locks with standard mono or stereo plugs of gauge A. The plug locks automatically upon insertion and only unlocks by pressing the red release tab. Standard D-size front panel appearance. Selectable grounding options.
Features
- Secure locking chassis jack
- Compatible with all mono and stereo plugs conforming to EIA RS-453 standard (gauge A)
- Selectable grounding options: standard isolation, to obtain a sleeve/panel connection, the red insulator on the side screw must be removed
- D-series compatible dimensions (31 x 26 mm)
- Solder terminals
Lockable jack 6.35 mm, D-size housing, nickel-plated metal body and silver contacts.
The panel-mount version of the 3-pole jack offers stable and secure connections where accidental disconnection or shocks and vibrations may occur. It locks with standard mono or stereo plugs of gauge A. The plug locks automatically upon insertion and only unlocks by pressing the red release tab. Standard D-size front panel appearance. Selectable grounding options.
Features
- Secure locking chassis jack
- Compatible with all mono and stereo plugs conforming to EIA RS-453 standard (gauge A)
- Selectable grounding options: standard isolation, to obtain a sleeve/panel connection, the red insulator on the side screw must be removed
- D-series compatible dimensions (31 x 26 mm)
- Solder terminals
Locking 1/4 inches phone jack, D-size shell, nickel metal housing and silver contacts. The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab.
