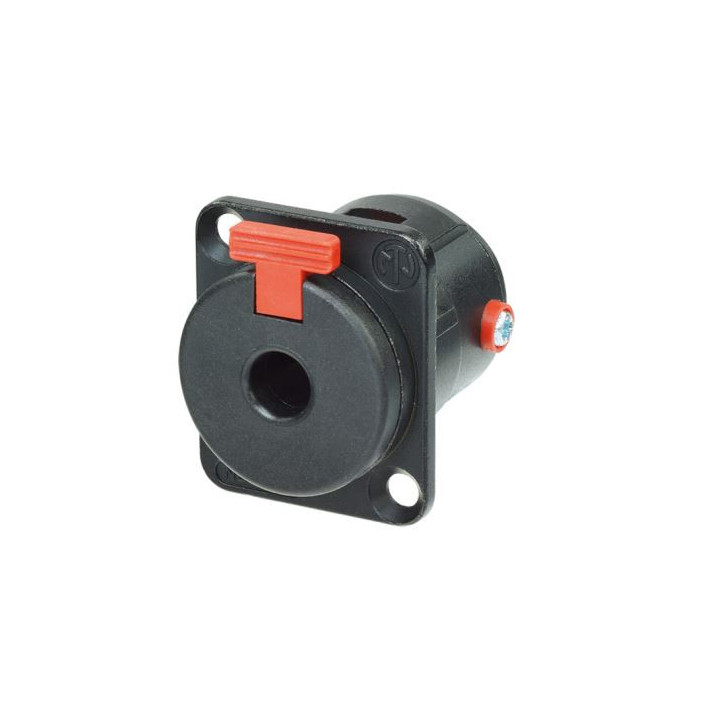

Contrik NJ3FP6C-BAG - Locking 1/4 inches phone jack
1030512
Locking 1/4 inches phone jack, D-size shell, black metal housing and silver contacts. The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab.
Visuals Price
8.68 CHF
VAT excl.
9.38 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
6.35 mm lockable jack Contrik
6.35 mm lockable jack, black metal housing in D format and silver-plated contacts.
The panel-mount version of the 3-pole jack offers stable and secure connections where accidental disconnections or shocks and vibrations may occur. It locks with standard mono or stereo plugs of gauge A. The plug locks automatically when mating and only unlocks when pressing the red tab. Standard D-size front panel appearance. Selectable earthing options.
Features
- Lockable chassis jack
- Compatible with all mono and stereo plugs according to EIA RS-453 standard (gauge A)
- Selectable earthing options: standard isolation, to obtain a sleeve/panel connection, the red insulator on the side screw must be removed
- Dimensions compatible with D series (31 x 26 mm)
- Solder terminals
6.35 mm lockable jack, black metal housing in D format and silver-plated contacts.
The panel-mount version of the 3-pole jack offers stable and secure connections where accidental disconnections or shocks and vibrations may occur. It locks with standard mono or stereo plugs of gauge A. The plug locks automatically when mating and only unlocks when pressing the red tab. Standard D-size front panel appearance. Selectable earthing options.
Features
- Lockable chassis jack
- Compatible with all mono and stereo plugs according to EIA RS-453 standard (gauge A)
- Selectable earthing options: standard isolation, to obtain a sleeve/panel connection, the red insulator on the side screw must be removed
- Dimensions compatible with D series (31 x 26 mm)
- Solder terminals
Locking 1/4 inches phone jack, D-size shell, black metal housing and silver contacts. The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab.
