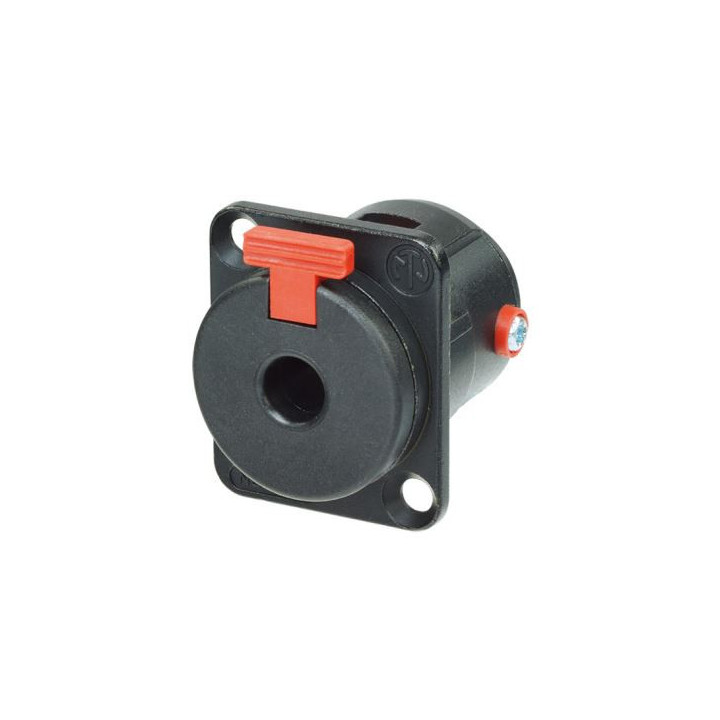

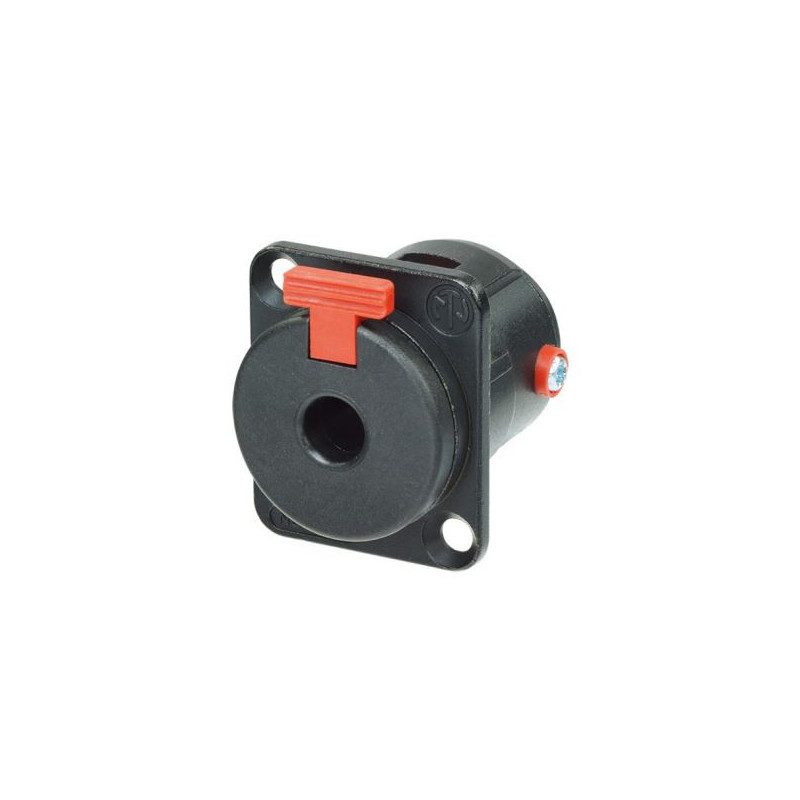

Contrik NJ3FP6P-BAG - Locking 1/4 inches phone jack
1030513
Locking 1/4 inches phone jack, D-size shell, black plastic housing and silver contacts. The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab.
Visuals Price
5.87 CHF
VAT excl.
6.35 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
6.35 mm lockable jack socket Contrik
6.35 mm lockable jack socket, black plastic housing in D format with silver-plated contacts.
The panel-mount version of the 3-pole jack socket offers stable and secure connections where accidental disconnections or shocks and vibrations may occur. It locks with standard mono or stereo type A plugs. The plug locks automatically during coupling and only unlocks by pressing the red button. Standard D format front appearance. Selectable earthing options.
Features
- Chassis socket with secure locking
- Compatible with all mono and stereo plugs according to EIA RS-453 standard (type A)
- Selectable earthing options: standard isolation, to obtain a sleeve/panel connection, the red insulator on the side screw must be removed
- Dimensions compatible with D series (31 x 26 mm)
- Solder terminals
6.35 mm lockable jack socket, black plastic housing in D format with silver-plated contacts.
The panel-mount version of the 3-pole jack socket offers stable and secure connections where accidental disconnections or shocks and vibrations may occur. It locks with standard mono or stereo type A plugs. The plug locks automatically during coupling and only unlocks by pressing the red button. Standard D format front appearance. Selectable earthing options.
Features
- Chassis socket with secure locking
- Compatible with all mono and stereo plugs according to EIA RS-453 standard (type A)
- Selectable earthing options: standard isolation, to obtain a sleeve/panel connection, the red insulator on the side screw must be removed
- Dimensions compatible with D series (31 x 26 mm)
- Solder terminals
Locking 1/4 inches phone jack, D-size shell, black plastic housing and silver contacts. The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab.
