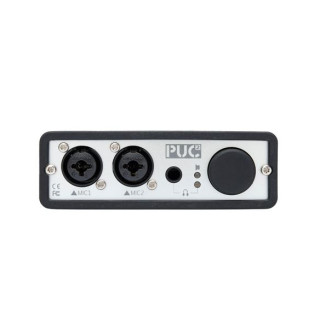

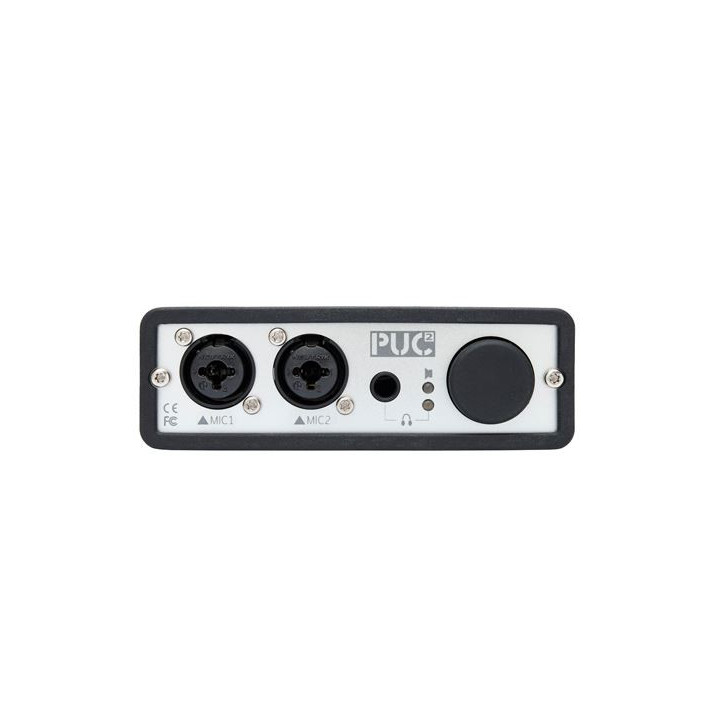

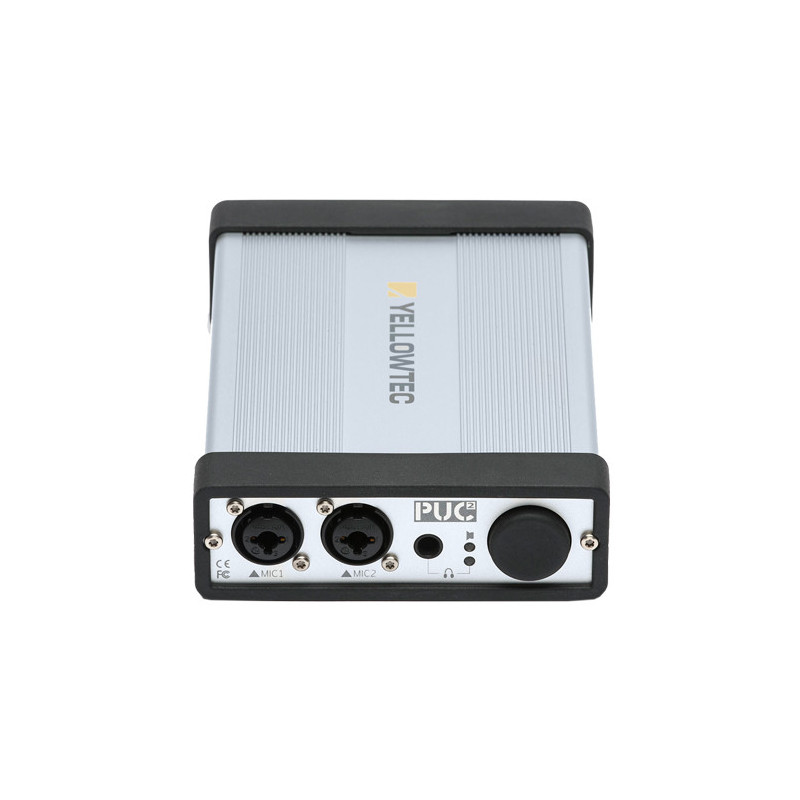

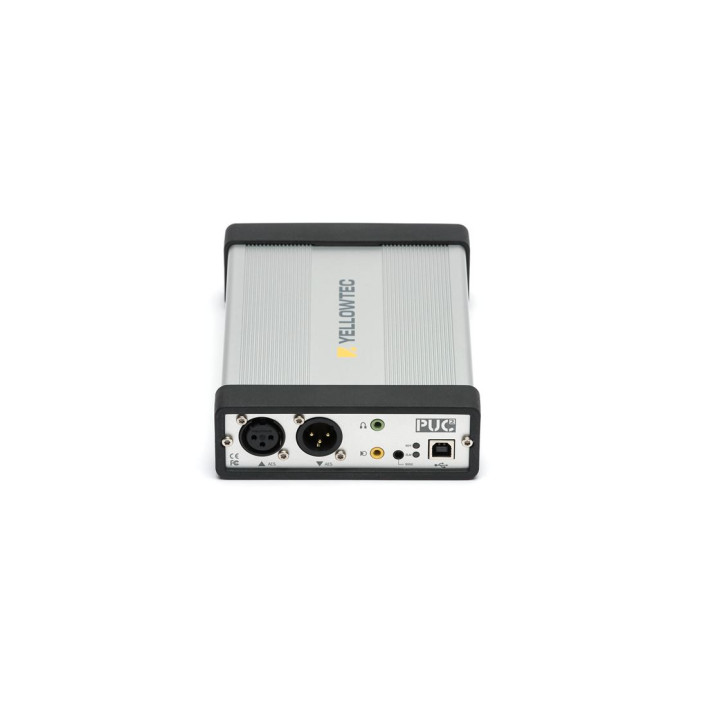

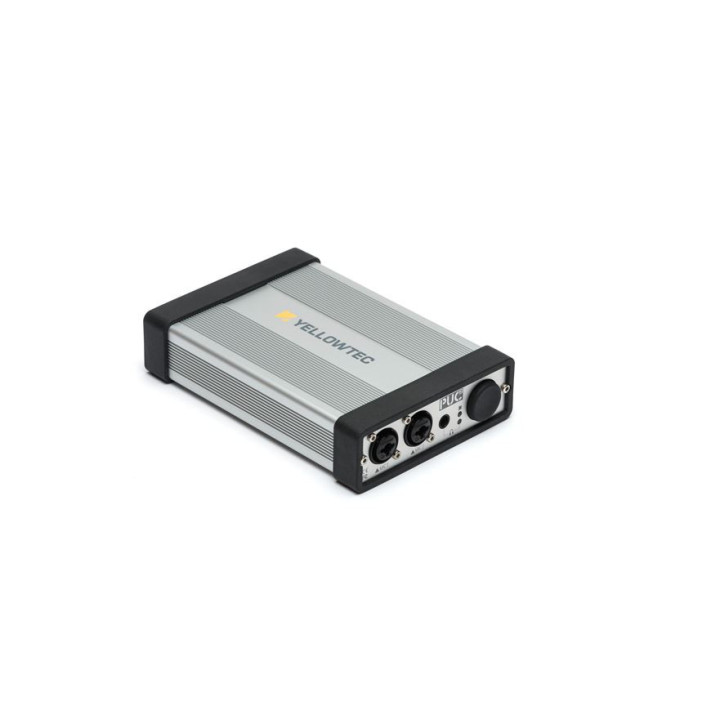

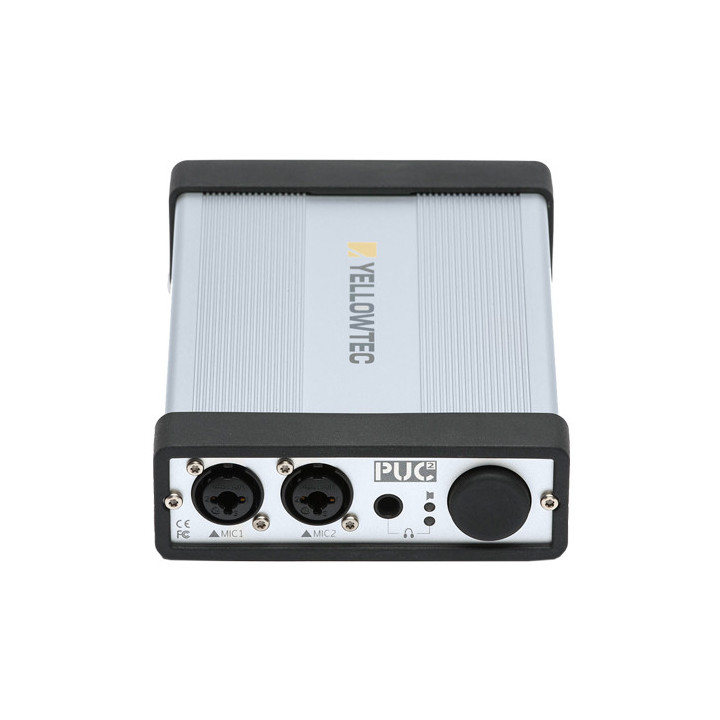

Yellowtec YT4221 - PUC2 LEA - Microphone USB soundcard
187705
PUC2 LEA - Microphone USB soundcard with LEA DSP Engine for automatic level control, USB 2.0 Full Speed, 24bit/192kHz, ASIO+WDM driver, AES-3 in/out, Mic In with phantom, external power supply YT4290 included
Visuals Price
891.36 CHF
VAT excl.
963.56 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Yellowtec PUC2 LEA – USB sound card for microphone
The PUC2 Mic LEA integrates the real-time LEA DSP engine from Yellowtec's iXm recording microphone into a high-end USB audio interface. LEA technology provides perfectly levelled recordings without tedious post-processing. Equipped with one of the highest quality microphone preamplifiers available, the PUC2 Mic LEA guarantees impeccable audio quality with zero latency for your microphone signal. Use it to stream two channels of microphone recordings via USB or use it as a standalone A/D converter with its preamplifier and LEA engine.
Journalists, commentators and radio presenters know how many vocal recordings suffer from poor levelling and therefore poor voice recognition and mediocre sound. With LEA, that is a thing of the past. Whether you whisper or shout, the PUC2 Mic LEA delivers perfect audio levels – regardless of the environment or ambient noise. It offers real-time audio processing and captures perfect levels without clipping. Compared to standard AGCs and limiters, the LEA engine stands out by not creating common artefacts or noise pumping. Even with very low levels or high ambient noise, the LEA engine works perfectly and levels smoothly.
According to your preferences, you can achieve perfect levels without having to interact by using the installed LEA presets, or benefit from a wide range of controls to define your individual preferences. The USB PUC2 Mic LEA audio interface comes with PC and Mac software for this purpose.
Features
High-definition USB audio interface
Perfect choice for all vocal recordings by journalists, commentators and radio presenters
Integrates the real-time LEA DSP engine from the iXm recording microphone into an audio interface
Perfectly levelled recordings without tedious post-processing
Ability to set individual preferences in the included PUC2 software
Perfect audio levels regardless of the environment or ambient noise
LEA excels without creating common artefacts or noise pumping
Plug'n'play concept enabling quick setup
Streaming of two channels of microphone recordings via USB
Can also be used as a standalone A/D converter
Offers the highest available audio standards
Zero latency for your microphone signal
Enables latency-free listening
Robust single-piece aluminium housing acting as a conductor and heat sink
* The PUC2 Mic LEA cannot be used without mains power
Specifications
Power supply: Via dual USB + mains power supply < 1000 mA
* The PUC2 Mic LEA cannot be used without mains power
Clock: Jitter < 15 mUI peak, frequency accuracy +/-10 ppm
Input selection: Automatic with AES detection
Digital input:
Format: AES3 + SPF/DIF
Connectors: XLR
Module SUB-D connections: SUB-D 25-pin
Sampling frequency: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit depth: 24 bits
Digital output:
Format: AES3
Connectors: XLR
Module SUB-D connections: SUB-D 25-pin
Sampling frequency: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit depth: 24 bits
Analogue input:
Electronic balancing
Input level 1: -∞… +18 dBu
Impedance: Mic typ. 1.2 kOhm, line typ. 10 kOhm
Analogue output:
Unbalanced
Adjustable volume
Impedance: < 16 Ohm
Compatible with headphones up to 600 Ohm
USB connector: USB 2.0 Type B
Phantom power: Switchable, voltage: 48 V, current: 5 mA
Headphone output:
6.3 mm jack socket: Adjustable volume
Impedance: < 16 Ohm
Compatible with headphones up to 600 Ohm
Microphone input:
Electronic balancing
GAIN: 0.05%
Equivalent input noise: -127 dBu @150 Ohm
Impedance: 1.2 kOhm
AD/DA converter:
Dynamic range: 108 dB
THD+N DAC: -107 dB THD+N
THD+N ADC: -103 dB THD+N
DAC sampling frequency: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit depth: 24 bits
Dimensions: 185 mm x 127 mm x 41.5 mm
Weight: 600 g
PUC2 LEA - Microphone USB soundcard with LEA DSP Engine for automatic level control, USB 2.0 Full Speed, 24bit/192kHz, ASIO+WDM driver, AES-3 in/out, Mic In with phantom, external power supply YT4290 included
