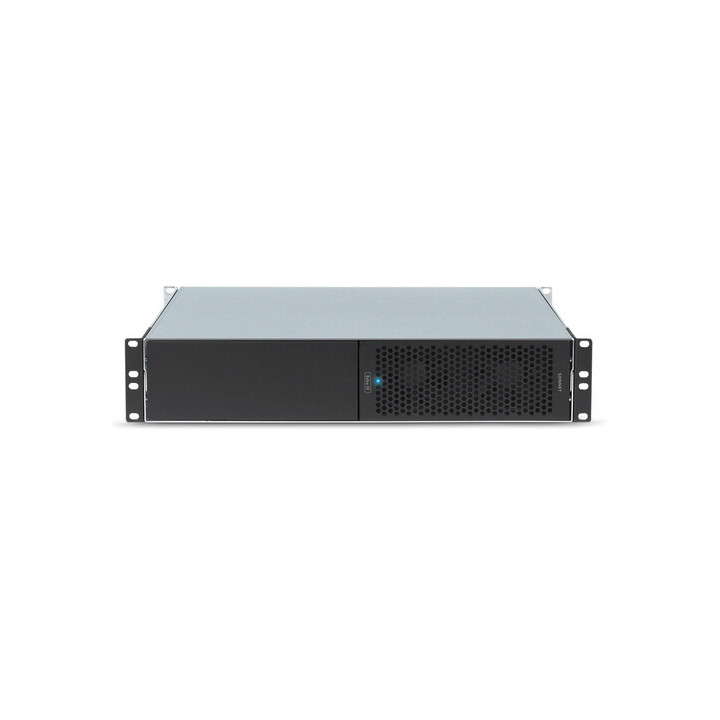

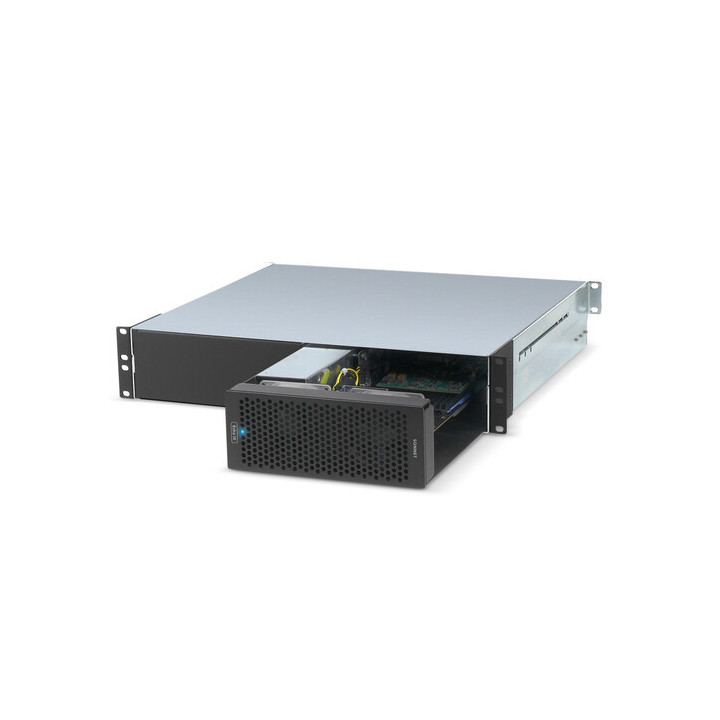

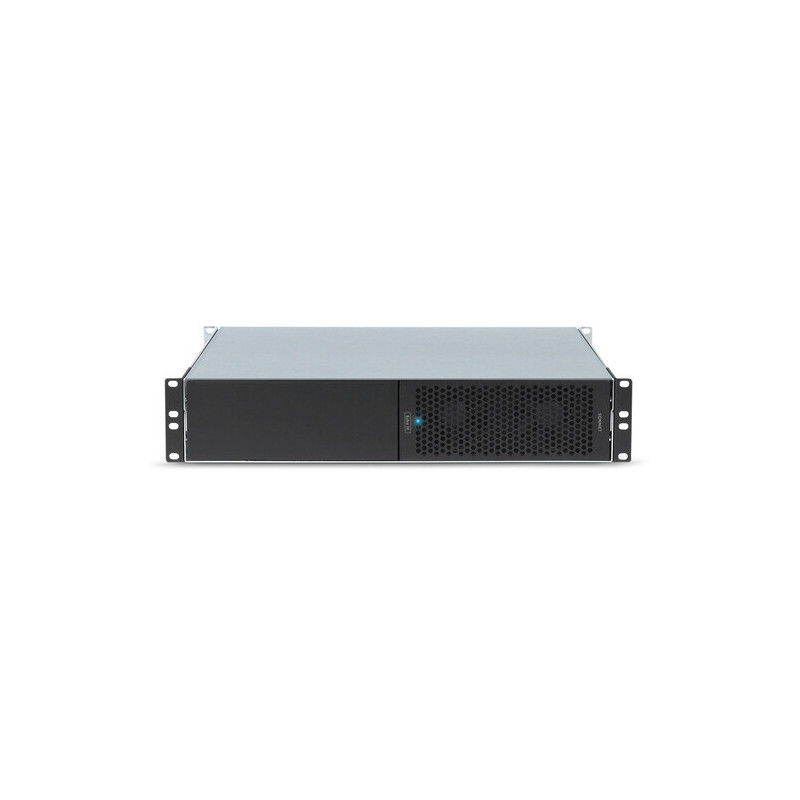

Sonnet Echo III Rackmount PCIe Thunderbolt 3 Expansion Chassis, 19" Rack
... learn more
Visuals Price
1,321.00 CHF VAT excl.

1,428.00 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

Sonnet Echo III Thunderbolt 3 to PCIe Rack Expansion System

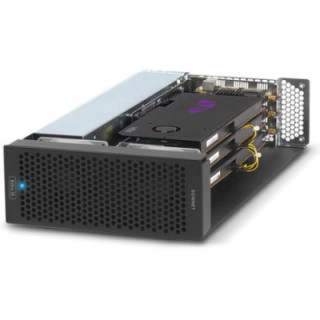

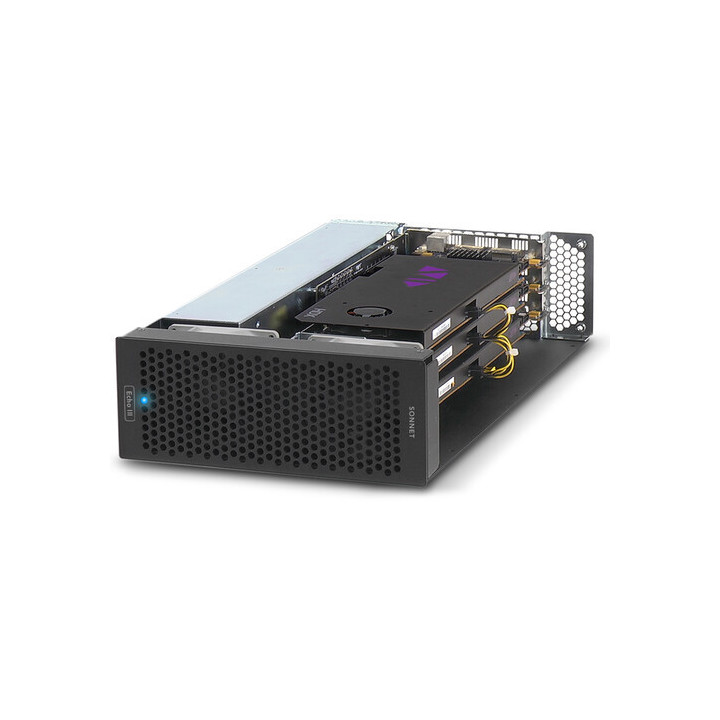

Enhance your Thunderbolt 3-compatible desktop computer with the Sonnet Echo III Thunderbolt 3 to PCIe Rack Expansion System. This external rack enclosure features one PCIe 3.0 x16 slot and two x8 slots, supporting full-height and full-length non-GPU expansions such as network cards, SSD cards, USB port cards, and more. Configurations include either one double-width and one single-width card, or three single-width cards, powered by a 400W internal power supply. An internal 6-pin power connector is available, providing up to 75W of additional power to compatible expansion cards. With its two Thunderbolt 3 ports, you can connect your computer to the Echo III using the included cable and daisy-chain multiple devices in series, transferring data at up to 40 Gb/s with your Windows 10, macOS 10.12.6 or later, and Linux 5.0 or later system.
Thunderbolt 3
Thunderbolt 3 is a hardware interface that uses the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 provides a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 up to 10 Gb/s, and the dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy-chain up to six devices from a single Thunderbolt 3 port.



Specifications



General


Expansion Slots 1 x PCIe 3.0 x16 (mode x8)
1 x PCIe 3.0 x8 (mode x8)
1 x PCIe 3.0 x8 (mode x4)
GPU None
Supported PCI Card Sizes Full Height, Full Length
Host Connection Thunderbolt 3
Ports 2 x USB Type-C Thunderbolt 3
Data Transfer Rate Thunderbolt 3: 40 Gb/s
Supported Operating Systems Linux, Windows, macOS/OS X
Power
Power Source Type 400W Internal Power Supply
PCIe Connectors 1 x 6-pin
AC Power 115 to 230 VAC, 50 / 60 Hz
AC Power VAC50 / 60 Hz

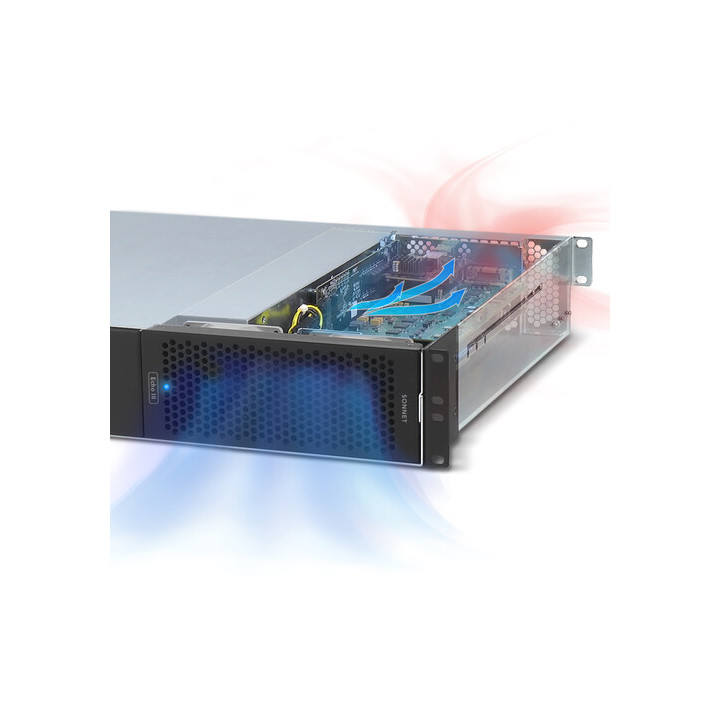

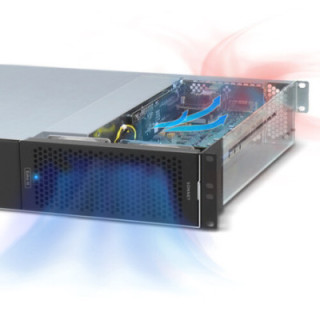

Cooling


Fans 2
Environment
Operating Temperature 32 to 95°F / 0 to 35°C
Physical Characteristics
Format Rack Mounting
Audio Alarm No
Status Monitoring LED Indicator
Host Cable Length 2.3' / 0.7 m
Dimensions 19 x 3.6 x 16.5" / 48.3 x 9.1 x 41.9 cm
Weight 23.15 lb / 10.5 kg
Packaging Information
Package Weight 23.12 lb
Carton Dimensions (LxWxH) 22.9 x 22 x 8.3"
