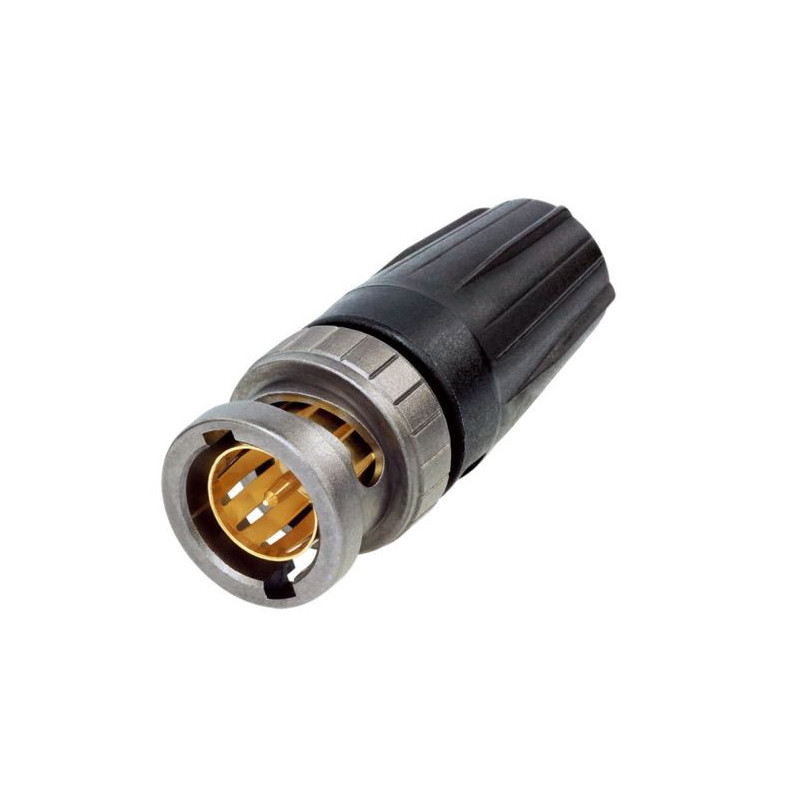

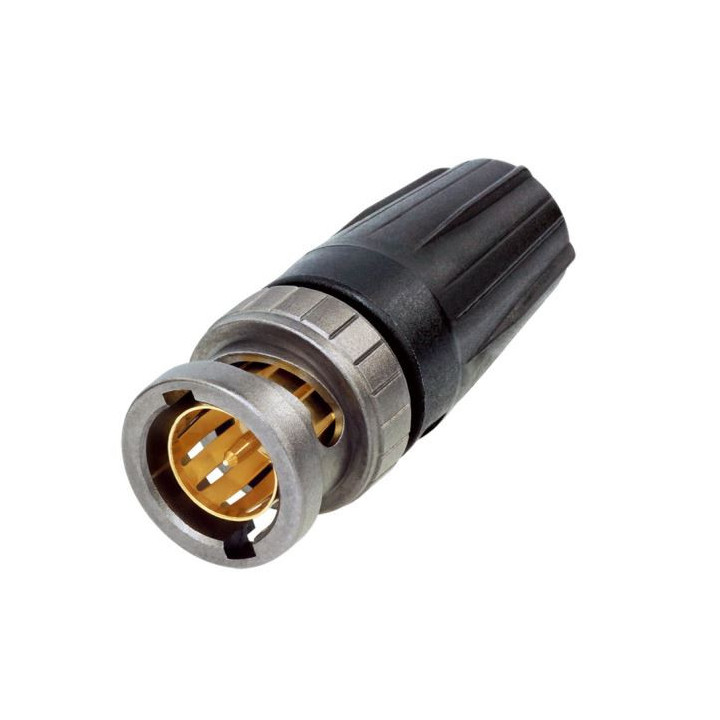

Contrik NBNC75BDD6X - rearTWIST UHD BNC connectors
1029774
The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals
Visuals Price
4.51 CHF
VAT excl.
4.88 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Contrik RearTWIST UHD BNC Connectors
The rearTWIST UHD BNC connectors are specifically designed for high-resolution video signal transmissions. Thanks to the unique design of the insulator and contact pin, the connectors feature low return loss values for 4K and 8K signals.
Optimized return loss
Thanks to an optimized insulator design and reduced crimp diameter of the center pin, Neutrik's rearTWIST UHD BNC connector provides increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly, or faulty connection interfaces, without signal interruption.
Crimp dimensions
To achieve optimal return loss values at high frequencies, the crimp dimension of the contact pin has been reduced.
- Pin: 1.07 mm
- Shield: 4.53 mm
- Crimp die: DIE-R-BNCX-PDG
Approved cables
To ensure high performance for each cable-connector combination at high frequencies, Neutrik has measured common COAX cables specifically designed for Ultra High Definition (UHD) transmission.
- Suitable cables: Belden 1855A, CommScope 7538
- UHD optimized cables: Belden 4855R, Clark Wire CD7523, Gepco VDM230
Features
- Optimized contact pin and insulator design for UHD data transmissions
- Proven rearTWIST technology
- Swiss antraloy plating
- Fully compatible with conventional BNC chassis connectors
- Improved return loss values at high frequencies
The rearTWIST UHD BNC connectors are specifically designed for high-resolution video signal transmissions. Thanks to the unique design of the insulator and contact pin, the connectors feature low return loss values for 4K and 8K signals.
Optimized return loss
Thanks to an optimized insulator design and reduced crimp diameter of the center pin, Neutrik's rearTWIST UHD BNC connector provides increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly, or faulty connection interfaces, without signal interruption.
Crimp dimensions
To achieve optimal return loss values at high frequencies, the crimp dimension of the contact pin has been reduced.
- Pin: 1.07 mm
- Shield: 4.53 mm
- Crimp die: DIE-R-BNCX-PDG
Approved cables
To ensure high performance for each cable-connector combination at high frequencies, Neutrik has measured common COAX cables specifically designed for Ultra High Definition (UHD) transmission.
- Suitable cables: Belden 1855A, CommScope 7538
- UHD optimized cables: Belden 4855R, Clark Wire CD7523, Gepco VDM230
Features
- Optimized contact pin and insulator design for UHD data transmissions
- Proven rearTWIST technology
- Swiss antraloy plating
- Fully compatible with conventional BNC chassis connectors
- Improved return loss values at high frequencies
The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals
