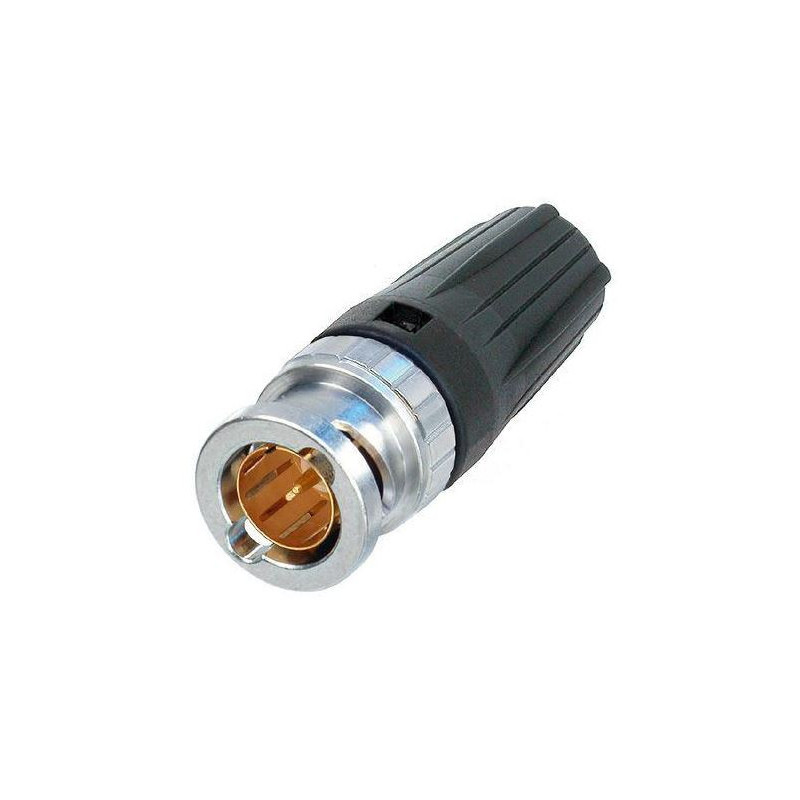

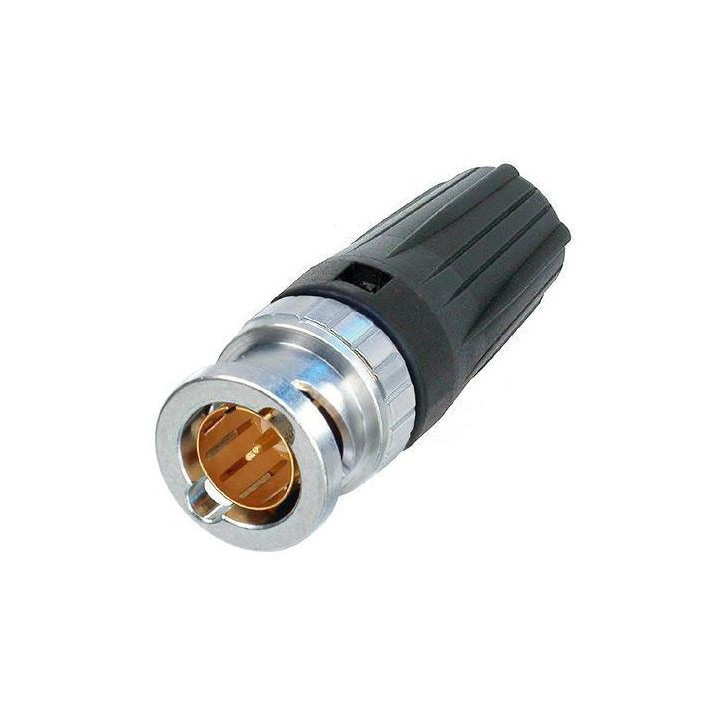

Contrik NBNC75BFG7 - rearTWIST HD BNC cable connector
1029775
The rearTWIST HD BNC cable connector offers a true 75 Ohm design and is perfectly suitable for HD applications.
Visuals Price
3.69 CHF
VAT excl.
3.99 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Contrik RearTWIST HD BNC Cable Connector
The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suited for HD applications.
The patented rearTWIST system ensures easy access even in high-density applications and features colour coding.
- Compatible cables: Argosy Image 360, Belden 1855ENH, Bryant BD SD01, CAE HD0628LSZH, Canford SDV, Canford SDV-LFH, Canford SDV-X-LFH, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9 02YS(ST)CH, Percon VK5, Quadtronics CABPGHD70MW-500, Sommer 600-0101M, Sommer 600-0104M, Tesca Supra
- Crimp size: Pin: 1.6 mm (square)
Shield: 5.0 mm (hexagonal)
Features
- "rearTWIST" principle for locking/unlocking using the easily accessible flexible sleeve (Patent DE 100 48507)
- Ideal for recessed panels where access to the connector "head" may be problematic. These connectors rotate from the rear rather than from the front.
- True 75 Ω design meets strict HDTV / DVD requirements
- Guide zone: Prevents tilting due to lateral forces to protect contacts from deformation. Guarantees a minimum service life of 1000 mating cycles!
- The fitted centre pin insert provides tactile feedback
- Shield and jacket crimp technology avoids the problem of exposed earth braid on cable assemblies
- Excellent cable protection and retention
- Precision Swiss machined brass parts for exceptional durability
- Accessories include colour-coded sleeves in 10 standard colours, crimping tool and dies
The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suited for HD applications.
The patented rearTWIST system ensures easy access even in high-density applications and features colour coding.
- Compatible cables: Argosy Image 360, Belden 1855ENH, Bryant BD SD01, CAE HD0628LSZH, Canford SDV, Canford SDV-LFH, Canford SDV-X-LFH, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9 02YS(ST)CH, Percon VK5, Quadtronics CABPGHD70MW-500, Sommer 600-0101M, Sommer 600-0104M, Tesca Supra
- Crimp size: Pin: 1.6 mm (square)
Shield: 5.0 mm (hexagonal)
Features
- "rearTWIST" principle for locking/unlocking using the easily accessible flexible sleeve (Patent DE 100 48507)
- Ideal for recessed panels where access to the connector "head" may be problematic. These connectors rotate from the rear rather than from the front.
- True 75 Ω design meets strict HDTV / DVD requirements
- Guide zone: Prevents tilting due to lateral forces to protect contacts from deformation. Guarantees a minimum service life of 1000 mating cycles!
- The fitted centre pin insert provides tactile feedback
- Shield and jacket crimp technology avoids the problem of exposed earth braid on cable assemblies
- Excellent cable protection and retention
- Precision Swiss machined brass parts for exceptional durability
- Accessories include colour-coded sleeves in 10 standard colours, crimping tool and dies
The rearTWIST HD BNC cable connector offers a true 75 Ohm design and is perfectly suitable for HD applications.
