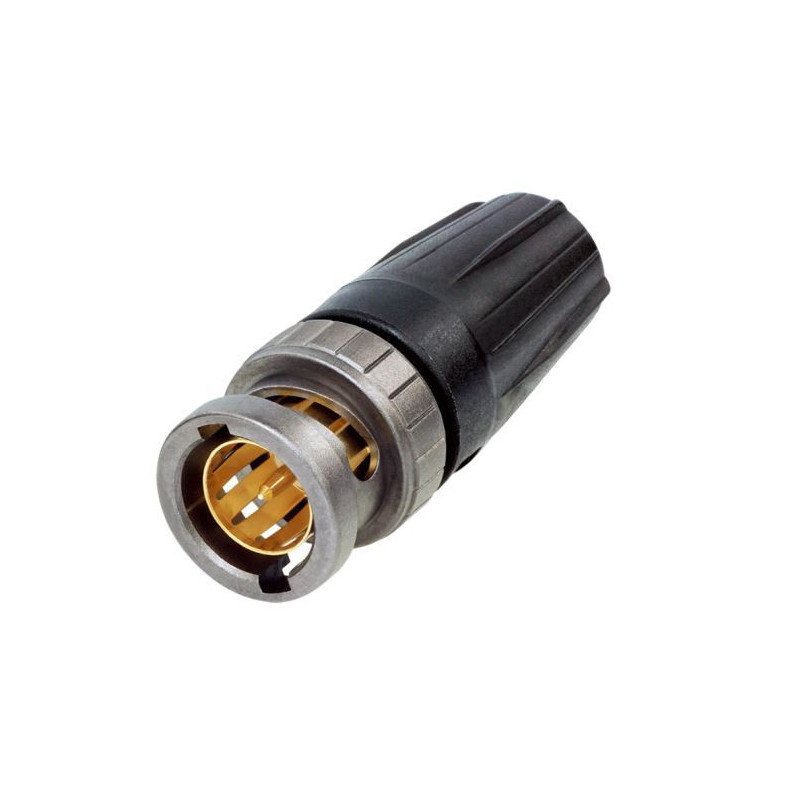

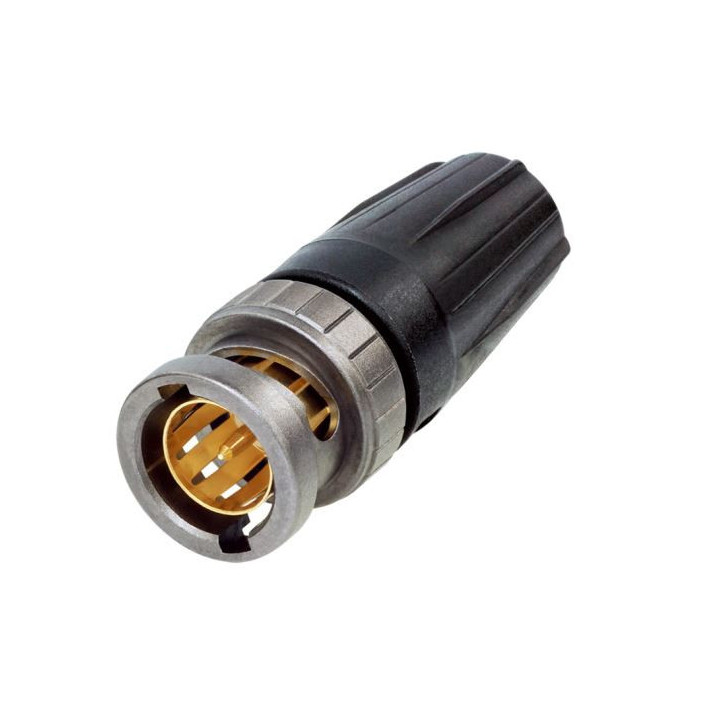

Contrik NBNC75BFG7X - rearTWIST UHD BNC connectors
1029776
The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.
Visuals Price
4.60 CHF
VAT excl.
4.97 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Neutrik BNC RearTWIST UHD Connectors
The BNC rearTWIST UHD connectors are specially designed for high-resolution video signal transmissions. Thanks to the unique design of the insulator and contact pin, the connectors exhibit low return loss values for 4K and 8K signals.
Optimised Return Loss
Thanks to the optimised design of the insulator and the reduced crimp diameter of the centre pin, Neutrik's BNC rearTWIST UHD connector offers increased headroom compared to conventional BNC connectors and provides additional return loss margin for potential impedance deviations resulting from cable flexing, incorrect connector assembly or faulty connection interfaces without signal interruption.
Crimp Dimensions
In order to achieve optimal return loss values at high frequencies, the crimp dimension of the contact pin has been reduced.
- Pin: 1.07 mm
- Shield: 5.00 mm
- Crimp die: DIE-R-BNCX-PDG
Approved Cables
To ensure high performance for every cable-connector combination at high frequencies, Neutrik has measured common COAX cables specially designed for ultra high definition (UHD) transmission. Find all approved cables listed below.
- Suitable cables: Bryant BD SD01, CAE HD0628LSZH, Canford SDV, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9 02YS(ST)CH, Percon VK5, Sommer 600-0101M, Sommer 600-0104M, Tesca Supra
- UHD optimised cables: Argosy Image 360, Belden 1855ENH, Belden 1855ECH, Belden 1855DNH, Belden 70080, Belden 70080NH, Belden 70080CH, Canford SDV-X-LFH, Draka HD Pro 0.6/2.8 AF, Draka Ultra HD PRO 50 UHD, Klotz V062SH
Features
- Optimised contact pin and insulator design for UHD data transmissions
- Proven rearTWIST technology
- Swiss antraloy plating
- Fully compatible with conventional BNC connectors
- Enhanced return loss values at high frequencies
The BNC rearTWIST UHD connectors are specially designed for high-resolution video signal transmissions. Thanks to the unique design of the insulator and contact pin, the connectors exhibit low return loss values for 4K and 8K signals.
Optimised Return Loss
Thanks to the optimised design of the insulator and the reduced crimp diameter of the centre pin, Neutrik's BNC rearTWIST UHD connector offers increased headroom compared to conventional BNC connectors and provides additional return loss margin for potential impedance deviations resulting from cable flexing, incorrect connector assembly or faulty connection interfaces without signal interruption.
Crimp Dimensions
In order to achieve optimal return loss values at high frequencies, the crimp dimension of the contact pin has been reduced.
- Pin: 1.07 mm
- Shield: 5.00 mm
- Crimp die: DIE-R-BNCX-PDG
Approved Cables
To ensure high performance for every cable-connector combination at high frequencies, Neutrik has measured common COAX cables specially designed for ultra high definition (UHD) transmission. Find all approved cables listed below.
- Suitable cables: Bryant BD SD01, CAE HD0628LSZH, Canford SDV, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9 02YS(ST)CH, Percon VK5, Sommer 600-0101M, Sommer 600-0104M, Tesca Supra
- UHD optimised cables: Argosy Image 360, Belden 1855ENH, Belden 1855ECH, Belden 1855DNH, Belden 70080, Belden 70080NH, Belden 70080CH, Canford SDV-X-LFH, Draka HD Pro 0.6/2.8 AF, Draka Ultra HD PRO 50 UHD, Klotz V062SH
Features
- Optimised contact pin and insulator design for UHD data transmissions
- Proven rearTWIST technology
- Swiss antraloy plating
- Fully compatible with conventional BNC connectors
- Enhanced return loss values at high frequencies
The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.
