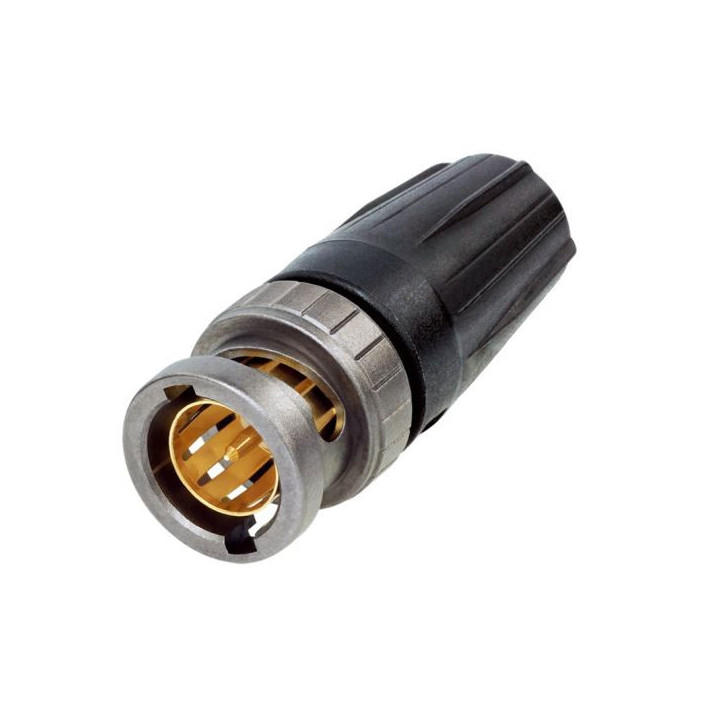

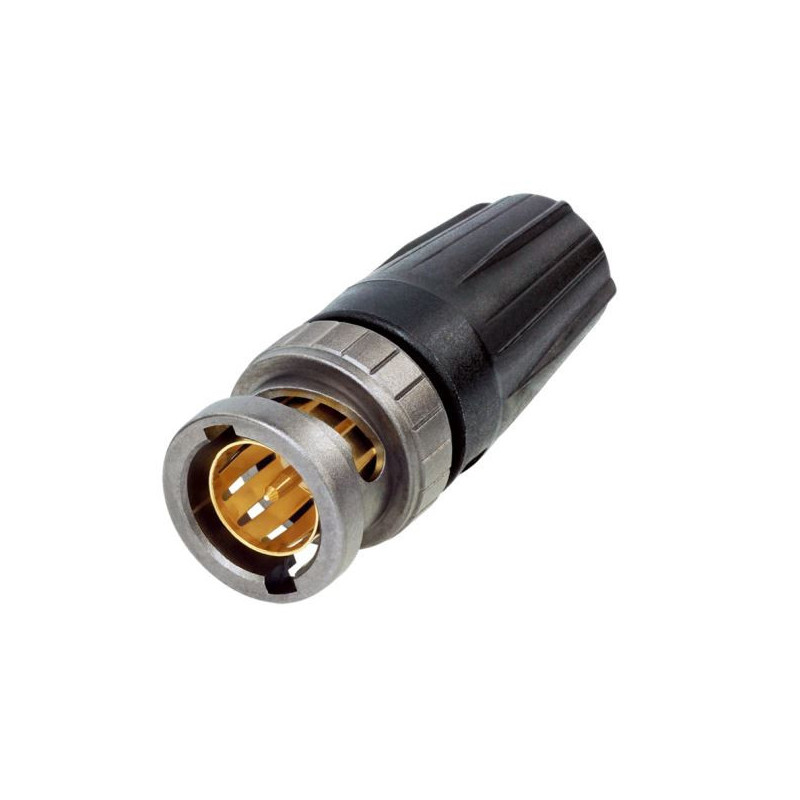

Contrik NBNC75BFH6X - rearTWIST UHD BNC connectors
1029777
The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.
Visuals Price
4.51 CHF
VAT excl.
4.88 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Contrik RearTWIST UHD BNC Connectors
The rearTWIST UHD BNC connectors are specially designed for high-resolution video signal transmissions. Thanks to the unique design of the insulator and contact pin, the connectors feature low return loss values for 4K and 8K signals.
Optimised Return Loss
Thanks to the optimised insulator design and reduced crimp diameter of the centre pin, the Neutrik rearTWIST UHD BNC connector offers increased headroom compared to conventional BNC connectors and provides additional return loss margin for potential impedance deviations resulting from cable flexing, incorrect connector assembly or faulty connection interfaces without signal interruption.
Crimp Dimensions
In order to achieve optimal return loss values at high frequencies, the crimp dimension of the contact pin has been reduced.
- Pin: 1.07 mm (square)
- Shield: 5.00 mm (hexagonal)
- Crimp die: DIE-R-BNCX-PDG
Approved Cables
To ensure high performance for each cable-connector combination at high frequencies, Neutrik has measured common COAX cables specially designed for ultra-high definition (UHD) transmission. Find all approved cables listed below.
- Compatible cables: Kansai 3C-5S, Proel HPC 820
Features
- Optimised contact pin and insulator design for UHD data transmissions
- Proven rearTWIST technology
- Swiss antraloy plating
- Fully compatible with conventional BNC connectors
- Improved return loss values at high frequencies
The rearTWIST UHD BNC connectors are specially designed for high-resolution video signal transmissions. Thanks to the unique design of the insulator and contact pin, the connectors feature low return loss values for 4K and 8K signals.
Optimised Return Loss
Thanks to the optimised insulator design and reduced crimp diameter of the centre pin, the Neutrik rearTWIST UHD BNC connector offers increased headroom compared to conventional BNC connectors and provides additional return loss margin for potential impedance deviations resulting from cable flexing, incorrect connector assembly or faulty connection interfaces without signal interruption.
Crimp Dimensions
In order to achieve optimal return loss values at high frequencies, the crimp dimension of the contact pin has been reduced.
- Pin: 1.07 mm (square)
- Shield: 5.00 mm (hexagonal)
- Crimp die: DIE-R-BNCX-PDG
Approved Cables
To ensure high performance for each cable-connector combination at high frequencies, Neutrik has measured common COAX cables specially designed for ultra-high definition (UHD) transmission. Find all approved cables listed below.
- Compatible cables: Kansai 3C-5S, Proel HPC 820
Features
- Optimised contact pin and insulator design for UHD data transmissions
- Proven rearTWIST technology
- Swiss antraloy plating
- Fully compatible with conventional BNC connectors
- Improved return loss values at high frequencies
The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.
