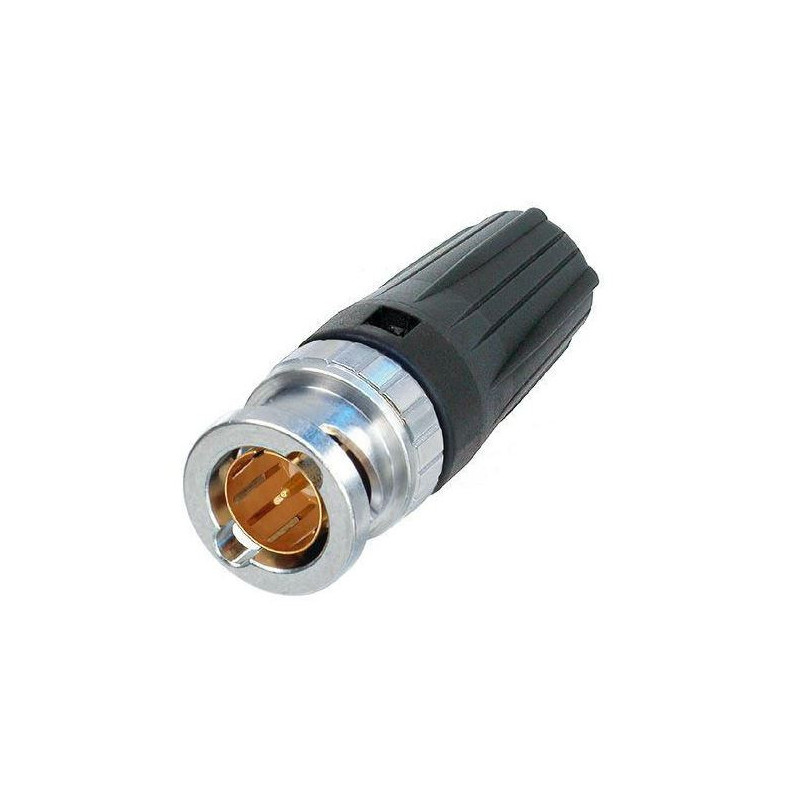

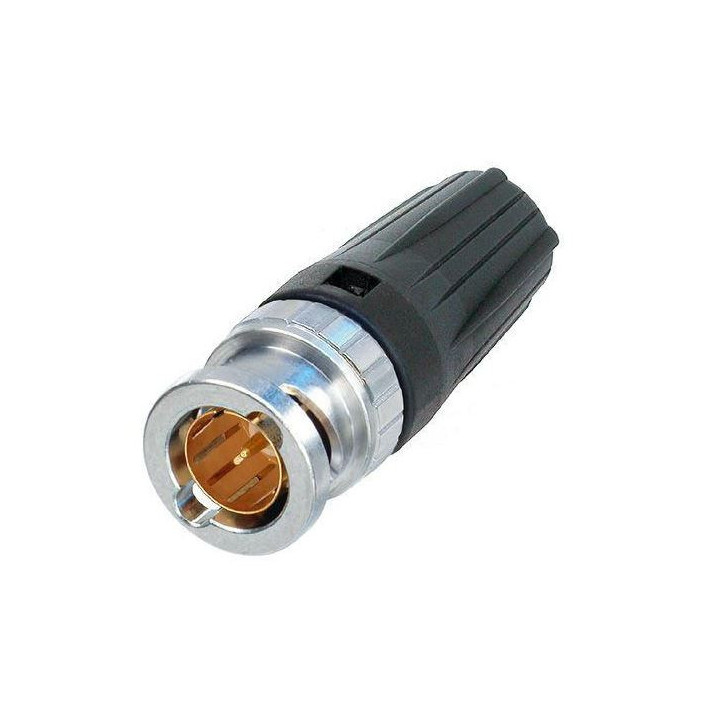

Contrik NBNC75BRU11 - rearTWIST HD BNC cable connector
1029789
The rearTWIST HD BNC cable connector offers a true 75 Ohm design and is perfectly suitable for HD applications.
Visuals Price
3.80 CHF
VAT excl.
4.11 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Contrik RearTWIST HD BNC Cable Connector
The BNC rearTWIST HD cable connector offers a true 75 Ω design and is perfectly suited for HD applications.
The patented rearTWIST boot ensures easy access even in high-density applications and enables colour coding.
- Compatible cables: Belden 1694F, Clark Wire CD7506F-0, Kabeltronik HFV 1.0/4.8 AF-FRNC
- Crimp dimensions: Pin: 1.6 mm (square)
Shield: 7.36 mm (hex)
Features
- "rearTWIST" locking/unlocking principle using the easily accessible flexible boot (Patent DE 100 48507)
- Ideal for recessed bulkheads where access to the connector "head" may be problematic. These connectors turn at the rear rather than the front.
- True 75 Ω design meeting strict HDTV / DVD requirements
- Guide zone: Prevents tilting due to lateral forces to protect contacts from deformation. Guarantees a lifetime of at least 1000 mating cycles!
- Fitted centre pin insert provides tactile feedback
- Shield and jacket crimp technology avoids the problem of exposed earth braid on assembled cables
- Excellent cable protection and retention
- Precision-machined brass parts made in Switzerland for exceptional durability
- Accessories include colour-coded boots in 10 standard colours, crimping tool and dies
The BNC rearTWIST HD cable connector offers a true 75 Ω design and is perfectly suited for HD applications.
The patented rearTWIST boot ensures easy access even in high-density applications and enables colour coding.
- Compatible cables: Belden 1694F, Clark Wire CD7506F-0, Kabeltronik HFV 1.0/4.8 AF-FRNC
- Crimp dimensions: Pin: 1.6 mm (square)
Shield: 7.36 mm (hex)
Features
- "rearTWIST" locking/unlocking principle using the easily accessible flexible boot (Patent DE 100 48507)
- Ideal for recessed bulkheads where access to the connector "head" may be problematic. These connectors turn at the rear rather than the front.
- True 75 Ω design meeting strict HDTV / DVD requirements
- Guide zone: Prevents tilting due to lateral forces to protect contacts from deformation. Guarantees a lifetime of at least 1000 mating cycles!
- Fitted centre pin insert provides tactile feedback
- Shield and jacket crimp technology avoids the problem of exposed earth braid on assembled cables
- Excellent cable protection and retention
- Precision-machined brass parts made in Switzerland for exceptional durability
- Accessories include colour-coded boots in 10 standard colours, crimping tool and dies
The rearTWIST HD BNC cable connector offers a true 75 Ohm design and is perfectly suitable for HD applications.
