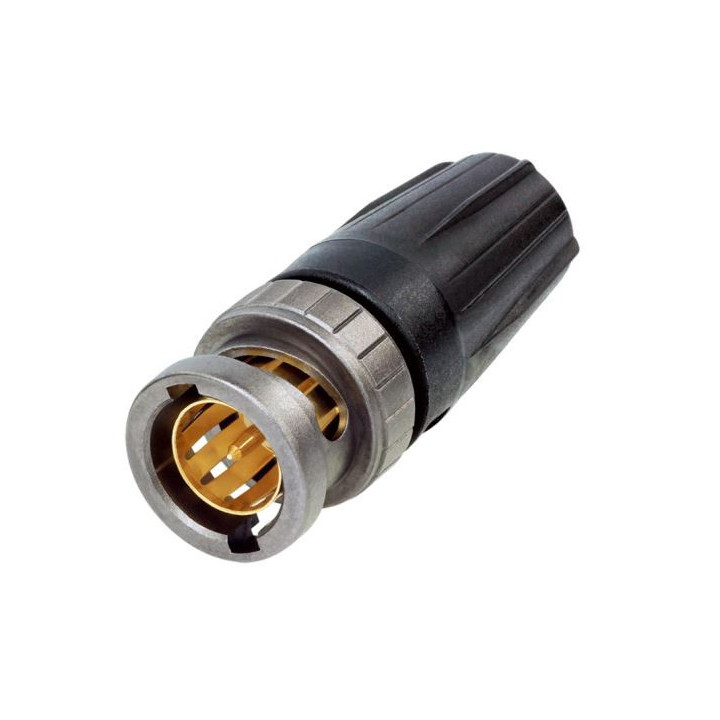

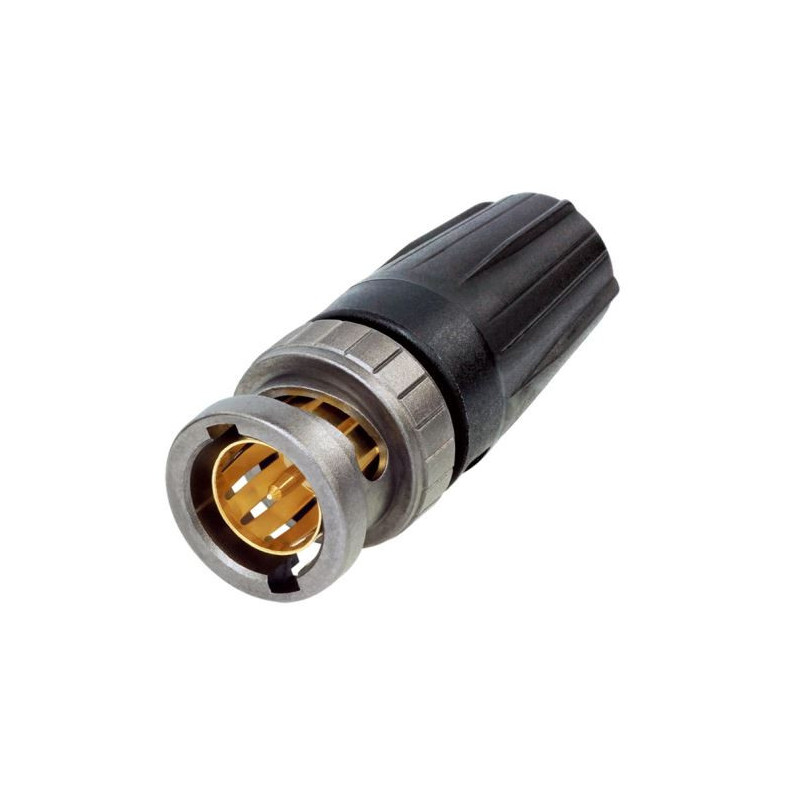

Contrik NBNC75BTU11X - rearTWIST UHD BNC connectors
1029793
The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.
Visuals Price
4.83 CHF
VAT excl.
5.22 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Contrik RearTWIST UHD BNC Connectors
The BNC rearTWIST UHD connectors are specially designed for high-resolution video signal transmissions. Thanks to the unique insulator and contact pin design, the connectors exhibit low return loss values for 4K and 8K signals.
Optimised Return Loss
Thanks to the optimised insulator design and reduced centre pin crimp diameter, the Neutrik BNC rearTWIST UHD connector offers increased headroom compared to conventional BNC connectors and provides additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.
Crimp Dimensions
In order to achieve optimal return loss values at high frequencies, the crimp dimension of the contact pin has been reduced.
- Pin: 1.07 mm
- Shield: 7.36 mm
- Crimp die: DIE-R-BNCX-PU
Approved Cables
To ensure high performance for each cable-connector combination at high frequencies, Neutrik has measured common COAX cables specially designed for ultra-high definition (UHD) transmission. All approved cables are listed below.
- Compatible cables: CommScope 5765, Gepco VSD2001, Suhner S05163-02, Suhner S05133-07, Percon VK77
- UHD optimised cables: Belden 1694A, Belden 1694ANH, Belden 1694DNH, Belden 4694R, Belden 70082, Belden 70082NH, Belden 70082CH, Bryant SD11, Bryant SD10F, Canare L-4.5CHWS, Canare L-4.5CHD, Clark Wire CD7506
Features
- Optimised contact pin and insulator design for UHD data transmissions
- Proven rearTWIST technology
- Swiss antraloy plating
- Fully compatible with conventional chassis-mount BNC connectors
- Improved return loss values at high frequencies
The BNC rearTWIST UHD connectors are specially designed for high-resolution video signal transmissions. Thanks to the unique insulator and contact pin design, the connectors exhibit low return loss values for 4K and 8K signals.
Optimised Return Loss
Thanks to the optimised insulator design and reduced centre pin crimp diameter, the Neutrik BNC rearTWIST UHD connector offers increased headroom compared to conventional BNC connectors and provides additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.
Crimp Dimensions
In order to achieve optimal return loss values at high frequencies, the crimp dimension of the contact pin has been reduced.
- Pin: 1.07 mm
- Shield: 7.36 mm
- Crimp die: DIE-R-BNCX-PU
Approved Cables
To ensure high performance for each cable-connector combination at high frequencies, Neutrik has measured common COAX cables specially designed for ultra-high definition (UHD) transmission. All approved cables are listed below.
- Compatible cables: CommScope 5765, Gepco VSD2001, Suhner S05163-02, Suhner S05133-07, Percon VK77
- UHD optimised cables: Belden 1694A, Belden 1694ANH, Belden 1694DNH, Belden 4694R, Belden 70082, Belden 70082NH, Belden 70082CH, Bryant SD11, Bryant SD10F, Canare L-4.5CHWS, Canare L-4.5CHD, Clark Wire CD7506
Features
- Optimised contact pin and insulator design for UHD data transmissions
- Proven rearTWIST technology
- Swiss antraloy plating
- Fully compatible with conventional chassis-mount BNC connectors
- Improved return loss values at high frequencies
