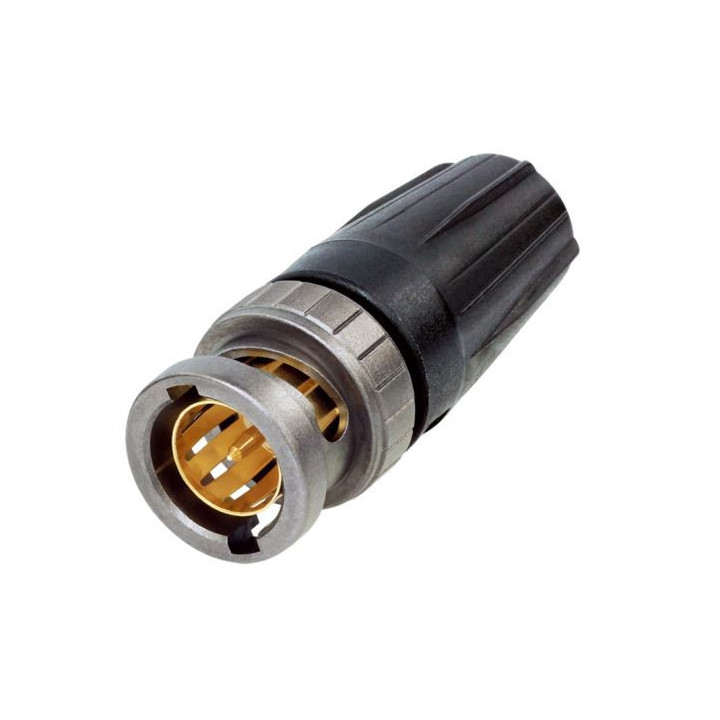

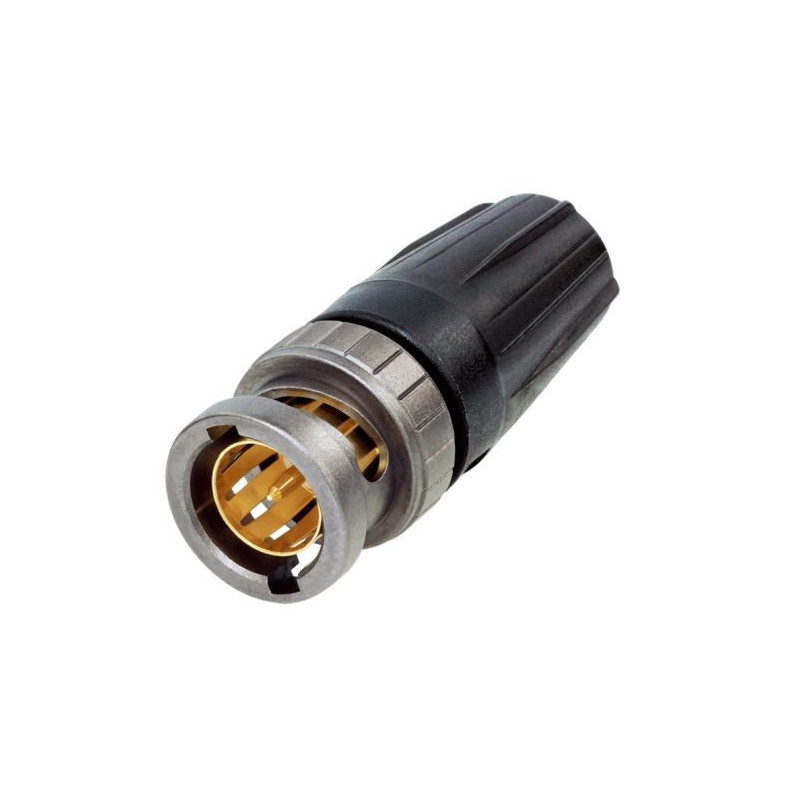

Contrik NBNC75BUU11X - rearTWIST UHD BNC connectors
1029795
The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.
Visuals Price
4.83 CHF
VAT excl.
5.22 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Contrik RearTWIST UHD BNC Connectors
The BNC rearTWIST UHD connectors are specifically designed for high-resolution video signal transmission. Thanks to the unique design of the insulator and contact pin, the connectors exhibit low return loss values for 4K and 8K signals.
Optimised Return Loss
Thanks to an optimised insulator design and reduced crimp diameter of the centre pin, the Neutrik rearTWIST UHD BNC connector offers increased margin compared to conventional BNC connectors and provides additional return loss margin for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces, without signal interruption.
Crimp Dimensions
To achieve optimal return loss values at high frequencies, the crimp dimension of the contact pin has been reduced.
- Pin: 1.07 mm
- Shield: 7.36 mm
- Crimp die: DIE-R-BNCX-PU
Approved Cables
To ensure high performance for each cable-connector combination at high frequencies, Neutrik has measured common COAX cables specifically designed for ultra-high definition (UHD) transmission. All approved cables are listed below.
- Compatible cables: Cordial CVI 10-48 HD, Draka 1.0/4.8 AF, Draka 755-901/5, Percon VK7
- UHD-optimised cables: Argosy Image 1000, Klotz V10/48, Klotz V10/48H
Features
- Optimised contact pin and insulator design for UHD data transmission
- Proven rearTWIST technology
- Swiss antraloy coating
- Fully compatible with conventional chassis BNC connectors
- Improved return loss values at high frequencies
The BNC rearTWIST UHD connectors are specifically designed for high-resolution video signal transmission. Thanks to the unique design of the insulator and contact pin, the connectors exhibit low return loss values for 4K and 8K signals.
Optimised Return Loss
Thanks to an optimised insulator design and reduced crimp diameter of the centre pin, the Neutrik rearTWIST UHD BNC connector offers increased margin compared to conventional BNC connectors and provides additional return loss margin for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces, without signal interruption.
Crimp Dimensions
To achieve optimal return loss values at high frequencies, the crimp dimension of the contact pin has been reduced.
- Pin: 1.07 mm
- Shield: 7.36 mm
- Crimp die: DIE-R-BNCX-PU
Approved Cables
To ensure high performance for each cable-connector combination at high frequencies, Neutrik has measured common COAX cables specifically designed for ultra-high definition (UHD) transmission. All approved cables are listed below.
- Compatible cables: Cordial CVI 10-48 HD, Draka 1.0/4.8 AF, Draka 755-901/5, Percon VK7
- UHD-optimised cables: Argosy Image 1000, Klotz V10/48, Klotz V10/48H
Features
- Optimised contact pin and insulator design for UHD data transmission
- Proven rearTWIST technology
- Swiss antraloy coating
- Fully compatible with conventional chassis BNC connectors
- Improved return loss values at high frequencies
The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.
