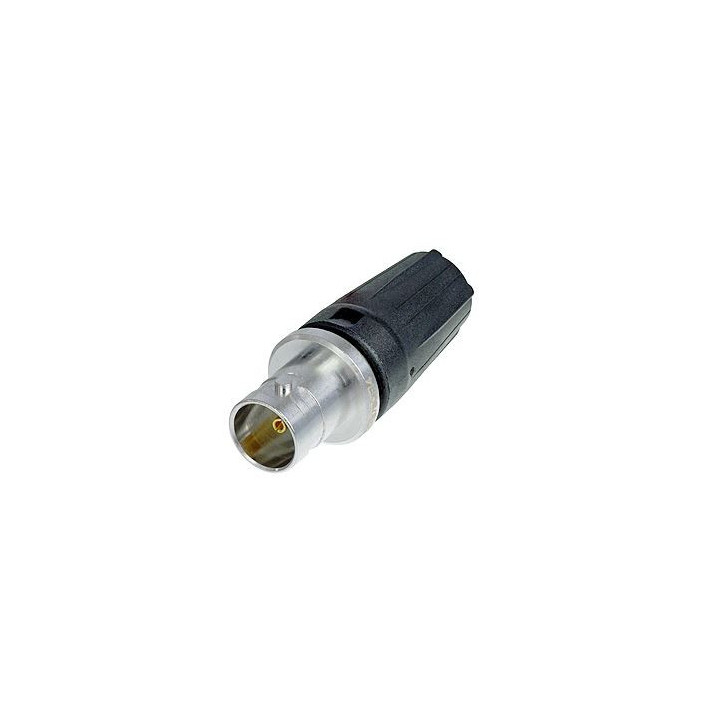

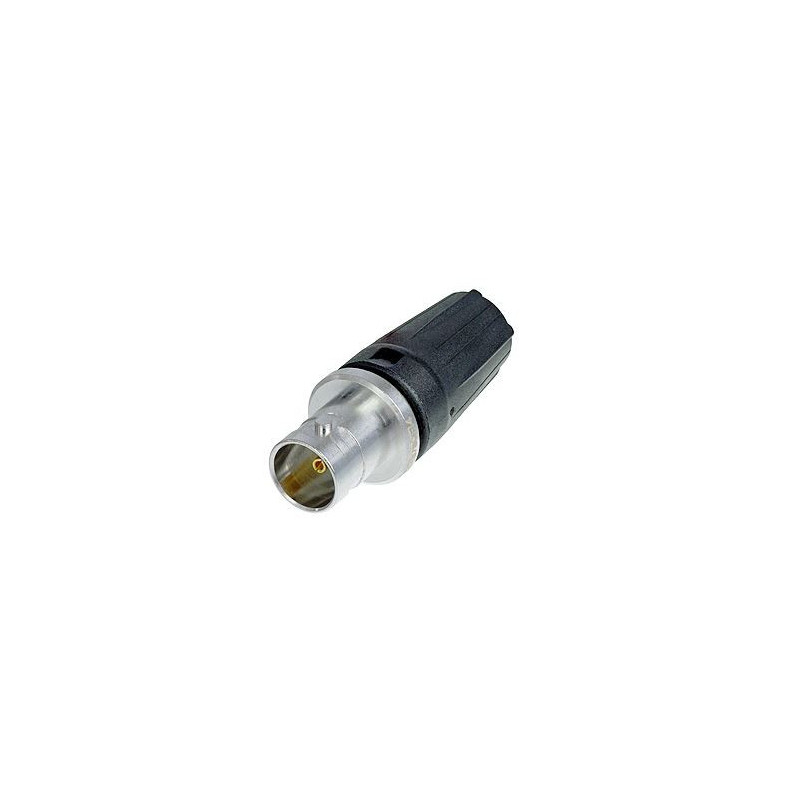

Contrik NBTB75CFI4 - BNC tiny cable jack
1029810
The BNC tiny cable jack is based on the rearTWIST principe and is suitable for thin coaxial cables. The cable jacks endue the reliable bayonet locking which can be turned form the back so that there is less engaging torque. This guarantees easy access even in high density applications. The tiny cable jack is the perfect solution for extensions and Y-cables.
Visuals Price
16.01 CHF
VAT excl.
17.31 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
BNC plug Neutrik Tiny
The BNC tiny plug from Neutrik is based on the rearTWIST principle and is suitable for thin coaxial cables. The cable plugs benefit from a reliable bayonet locking mechanism that can be turned from the rear, thereby reducing the engagement torque. This ensures easy access even in high-density applications. The tiny plug is the perfect solution for extension leads and Y-cables.
Like all Neutrik BNCs, it offers a true 75 Ω design and is perfectly suited to HD applications.
- Compatible cables: Belden 1520A, Belden 1521A, Belden 1522A, Belden 179DT, Draka 0.31/1.45 AF, Draka 753-1304(2), Draka 755-1302, Suhner G02233, ZNK CM14B
- Crimp size: Pin: 1.6 mm (square)
Shield: 4.06 mm (hexagonal)
Features
- Ideal for recessed bulkheads where access to the "head" of the connector could be problematic. These connectors are turned from the rear and not from the front.
- True 75 Ω design meeting the strict requirements of HD
- Perfect solution for Y-cables and extension leads
- Assembly optimised for multi-conductor or small-sized cables
- Precise assembly of the centre pin provides tactile feedback
- Excellent cable protection and retention
- Precision-machined brass parts for exceptional durability
- Accessories include colour-coded sleeves in 10 standard colours, a crimping tool and dies
The BNC tiny plug from Neutrik is based on the rearTWIST principle and is suitable for thin coaxial cables. The cable plugs benefit from a reliable bayonet locking mechanism that can be turned from the rear, thereby reducing the engagement torque. This ensures easy access even in high-density applications. The tiny plug is the perfect solution for extension leads and Y-cables.
Like all Neutrik BNCs, it offers a true 75 Ω design and is perfectly suited to HD applications.
- Compatible cables: Belden 1520A, Belden 1521A, Belden 1522A, Belden 179DT, Draka 0.31/1.45 AF, Draka 753-1304(2), Draka 755-1302, Suhner G02233, ZNK CM14B
- Crimp size: Pin: 1.6 mm (square)
Shield: 4.06 mm (hexagonal)
Features
- Ideal for recessed bulkheads where access to the "head" of the connector could be problematic. These connectors are turned from the rear and not from the front.
- True 75 Ω design meeting the strict requirements of HD
- Perfect solution for Y-cables and extension leads
- Assembly optimised for multi-conductor or small-sized cables
- Precise assembly of the centre pin provides tactile feedback
- Excellent cable protection and retention
- Precision-machined brass parts for exceptional durability
- Accessories include colour-coded sleeves in 10 standard colours, a crimping tool and dies
The BNC tiny cable jack is based on the rearTWIST principe and is suitable for thin coaxial cables. The cable jacks endue the reliable bayonet locking which can be turned form the back so that there is less engaging torque. This guarantees easy access even in high density applications. The tiny cable jack is the perfect solution for extensions and Y-cables.
