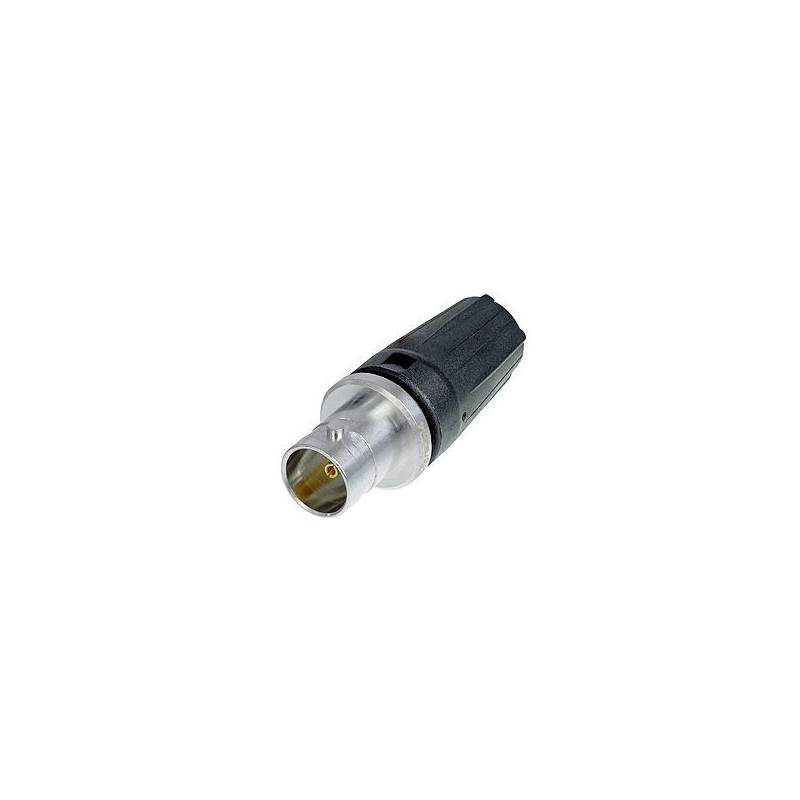

Contrik NBTB75CNN5 - BNC tiny cable jack
1029812
The BNC tiny cable jack is based on the rearTWIST principe and is suitable for thin coaxial cables. The cable jacks endue the reliable bayonet locking which can be turned form the back so that there is less engaging torque. This guarantees easy access even in high density applications. The tiny cable jack is the perfect solution for extensions and Y-cables.
Visuals Price
10.07 CHF
VAT excl.
10.89 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Contrik BNC Tiny socket
Neutrik's BNC tiny connector is based on the rearTWIST principle and is suitable for thin coaxial cables. The cable connectors feature a reliable bayonet lock that can be twisted from the rear, thus reducing engagement torque. This ensures easy access even in high-density applications. The tiny connector is the perfect solution for extension leads and Y cables.
Like all Neutrik BNCs, it offers a true 75 Ω design and is perfectly suited for HD applications.
- Compatible cables: Draka 0.41/1.9 AF, Draka 753-1104, Draka 755-1101, Draka 755-1103, Extron BNC 5 HR(P) (bulk)
- Crimp size: Pin: 1.6 mm (square)
Shield: 4.53 mm (hexagonal)
Features
- Ideal for recessed bulkheads where access to the connector "head" could be problematic. These connectors twist from the rear and not from the front.
- True 75 Ω design meeting strict HD requirements
- Perfect solution for Y cables and extension leads
- Optimised assembly for multi-conductor or small diameter cables
- The fitted centre pin assembly provides tactile feedback
- Excellent cable protection and retention
- Precision-machined brass parts for exceptional durability
- Accessories include colour-coded sleeves in 10 standard colours, crimping tool and dies
Neutrik's BNC tiny connector is based on the rearTWIST principle and is suitable for thin coaxial cables. The cable connectors feature a reliable bayonet lock that can be twisted from the rear, thus reducing engagement torque. This ensures easy access even in high-density applications. The tiny connector is the perfect solution for extension leads and Y cables.
Like all Neutrik BNCs, it offers a true 75 Ω design and is perfectly suited for HD applications.
- Compatible cables: Draka 0.41/1.9 AF, Draka 753-1104, Draka 755-1101, Draka 755-1103, Extron BNC 5 HR(P) (bulk)
- Crimp size: Pin: 1.6 mm (square)
Shield: 4.53 mm (hexagonal)
Features
- Ideal for recessed bulkheads where access to the connector "head" could be problematic. These connectors twist from the rear and not from the front.
- True 75 Ω design meeting strict HD requirements
- Perfect solution for Y cables and extension leads
- Optimised assembly for multi-conductor or small diameter cables
- The fitted centre pin assembly provides tactile feedback
- Excellent cable protection and retention
- Precision-machined brass parts for exceptional durability
- Accessories include colour-coded sleeves in 10 standard colours, crimping tool and dies
The BNC tiny cable jack is based on the rearTWIST principe and is suitable for thin coaxial cables. The cable jacks endue the reliable bayonet locking which can be turned form the back so that there is less engaging torque. This guarantees easy access even in high density applications. The tiny cable jack is the perfect solution for extensions and Y-cables.
