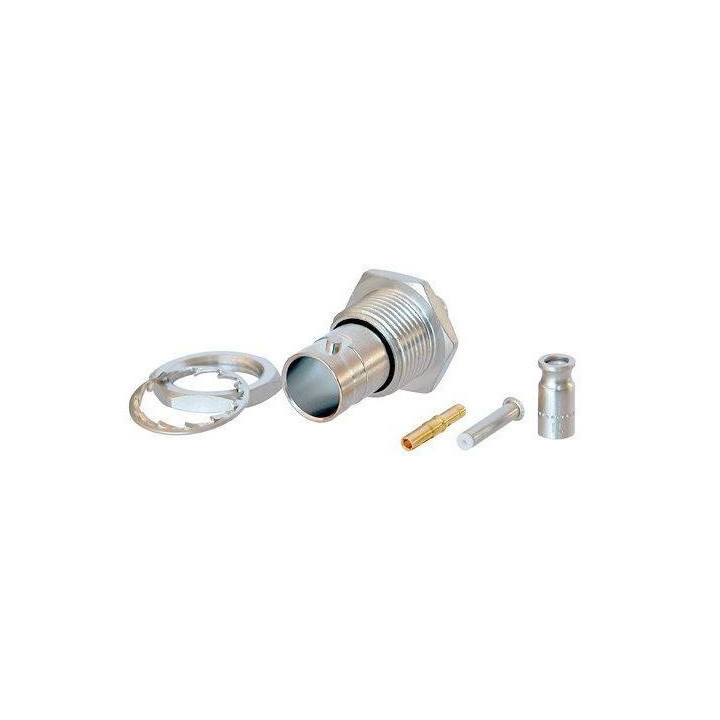

Contrik NBTB75IFI4 - BNC cable jack for panel mount, isolated
1029813
BNC cable jack for panel mount, isolated
Visuals Price
13.49 CHF
VAT excl.
14.58 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

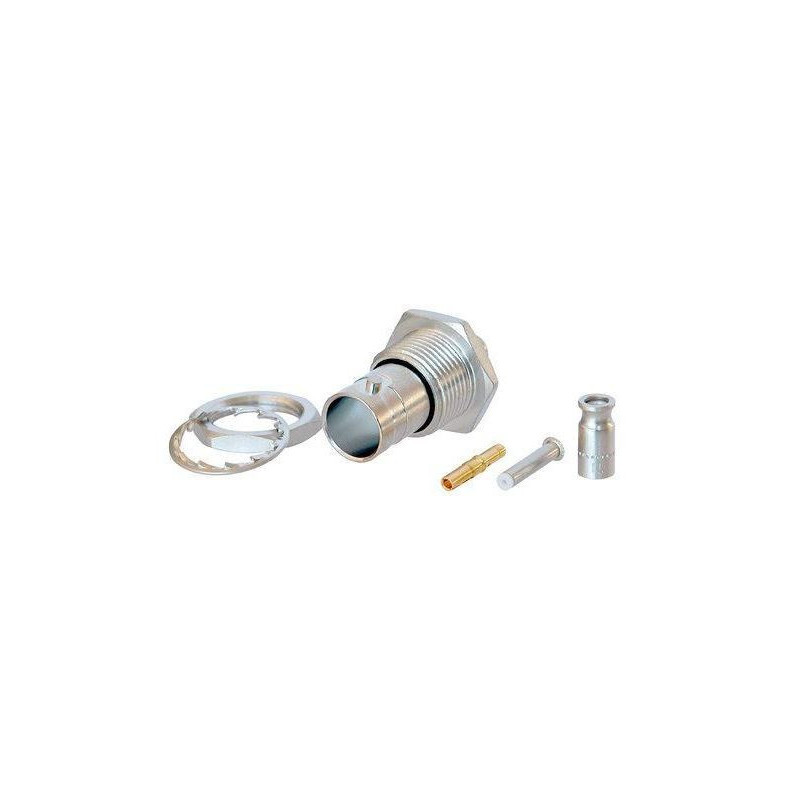

Contrik isolated panel-mount BNC connector
Neutrik BNC panel-mount connectors offer a true 75 Ω design for serial and digital signals (HD). The machined brass connector body ensures an extremely robust and non-abrasive long-term connection.
- Compatible cables: Belden 1520A, Belden 1521A, Belden 1522A, Belden 179DT, Draka 0.31/1.45 AF, Draka 753-1304(2), Draka 755-1302, Suhner G02233, ZNK CM14B
- Crimp size: Pin: 1.6 mm (square)
Shield: 4.06 mm (hexagonal)
Features
- Gold-plated centre contact
- True 75 Ω design meeting strict HD requirements
- Isolated panel mounting (solves potential earthing issues and prevents common mode influence with other connections carried at the same panel ground potential)
Neutrik BNC panel-mount connectors offer a true 75 Ω design for serial and digital signals (HD). The machined brass connector body ensures an extremely robust and non-abrasive long-term connection.
- Compatible cables: Belden 1520A, Belden 1521A, Belden 1522A, Belden 179DT, Draka 0.31/1.45 AF, Draka 753-1304(2), Draka 755-1302, Suhner G02233, ZNK CM14B
- Crimp size: Pin: 1.6 mm (square)
Shield: 4.06 mm (hexagonal)
Features
- Gold-plated centre contact
- True 75 Ω design meeting strict HD requirements
- Isolated panel mounting (solves potential earthing issues and prevents common mode influence with other connections carried at the same panel ground potential)
BNC cable jack for panel mount, isolated
