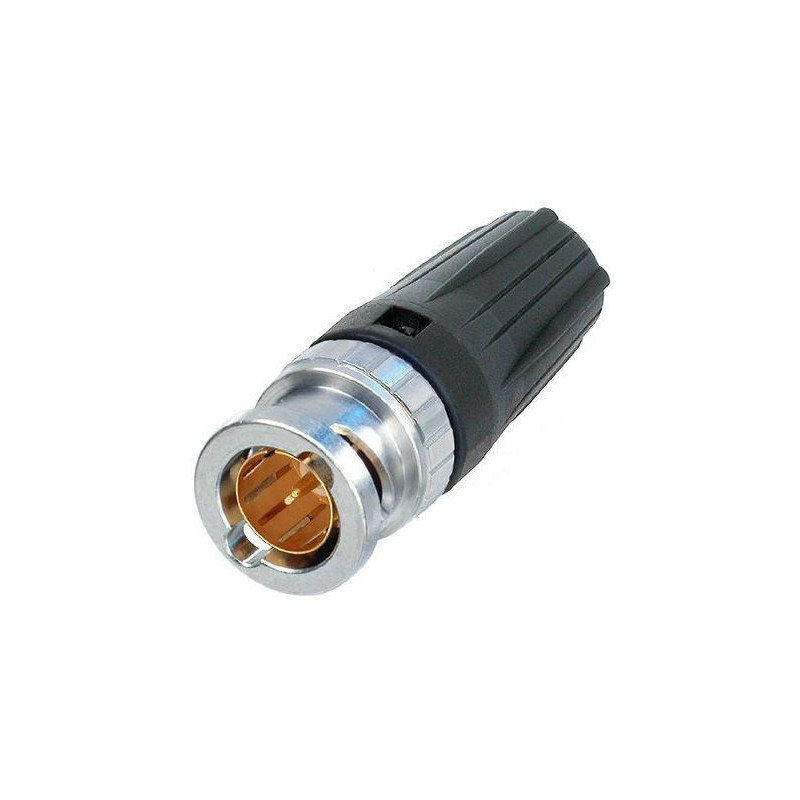

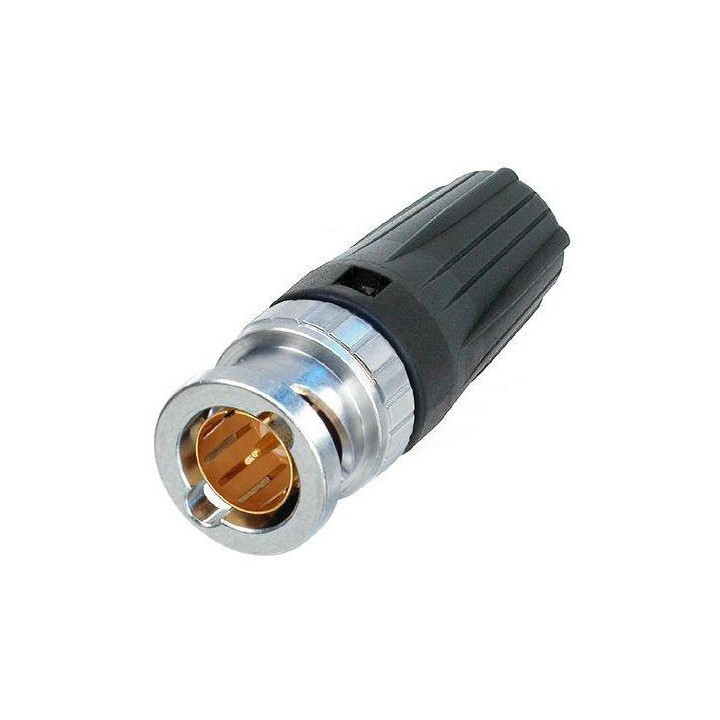

Contrik NBTC75BFI4 - rearTWIST HD Tiny BNC cable connector
1029815
The rearTWIST HD Tiny BNC cable connector is optimized for small cable diameters. The additional leading ferrule eases the critical assembly of multicore or tiny cables.
Visuals Price
6.28 CHF
VAT excl.
6.79 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
BNC cable connector Neutrik RearTWIST HD Tiny
The BNC rearTWIST HD Tiny cable connector is optimised for small-diameter cables. The additional guide ferrule facilitates the critical assembly of multi-conductor or small-diameter cables.
Like all Neutrik BNCs, it offers a true 75 Ω design and is perfectly suited to HD applications.
The patented rearTWIST sleeve ensures easy access even in high-density applications and provides colour coding.
- Suitable cables: Belden 1520A, Belden 1521A, Belden 1522A, Belden 179DT, Draka 0.31/1.45 AF, Draka 753-1304(2), Draka 755-1302, Suhner G02233, ZNK CM14B
- Crimp size: Pin: 1.6 mm (square)
Shield: 4.06 mm (hexagonal)
Features
- "rearTWIST principle" for locking/unlocking using the easily accessible flexible sleeve (Patent DE 100 48507)
- Ideal for recessed bulkheads where access to the "head" of the connector may be problematic. These connectors are screwed from the rear and not from the front.
- Assembly optimised for multi-conductor or small-diameter cables
- True 75 Ω design meets the strict requirements of HDTV / DVD
- Guide zone: Prevents tilting due to lateral forces to protect contacts from deformation. Guarantees a service life of at least 1,000 mating cycles!
- Precise centre pin insert provides tactile feedback
- Shield and jacket crimping technology avoids the problem of exposed earth braid on cable assemblies
- Excellent cable protection and retention
- Precision Swiss-machined brass parts for exceptional durability
- Accessories include colour-coded sleeves in 10 standard colours, a crimping tool and dies
The BNC rearTWIST HD Tiny cable connector is optimised for small-diameter cables. The additional guide ferrule facilitates the critical assembly of multi-conductor or small-diameter cables.
Like all Neutrik BNCs, it offers a true 75 Ω design and is perfectly suited to HD applications.
The patented rearTWIST sleeve ensures easy access even in high-density applications and provides colour coding.
- Suitable cables: Belden 1520A, Belden 1521A, Belden 1522A, Belden 179DT, Draka 0.31/1.45 AF, Draka 753-1304(2), Draka 755-1302, Suhner G02233, ZNK CM14B
- Crimp size: Pin: 1.6 mm (square)
Shield: 4.06 mm (hexagonal)
Features
- "rearTWIST principle" for locking/unlocking using the easily accessible flexible sleeve (Patent DE 100 48507)
- Ideal for recessed bulkheads where access to the "head" of the connector may be problematic. These connectors are screwed from the rear and not from the front.
- Assembly optimised for multi-conductor or small-diameter cables
- True 75 Ω design meets the strict requirements of HDTV / DVD
- Guide zone: Prevents tilting due to lateral forces to protect contacts from deformation. Guarantees a service life of at least 1,000 mating cycles!
- Precise centre pin insert provides tactile feedback
- Shield and jacket crimping technology avoids the problem of exposed earth braid on cable assemblies
- Excellent cable protection and retention
- Precision Swiss-machined brass parts for exceptional durability
- Accessories include colour-coded sleeves in 10 standard colours, a crimping tool and dies
The rearTWIST HD Tiny BNC cable connector is optimized for small cable diameters. The additional leading ferrule eases the critical assembly of multicore or tiny cables.
