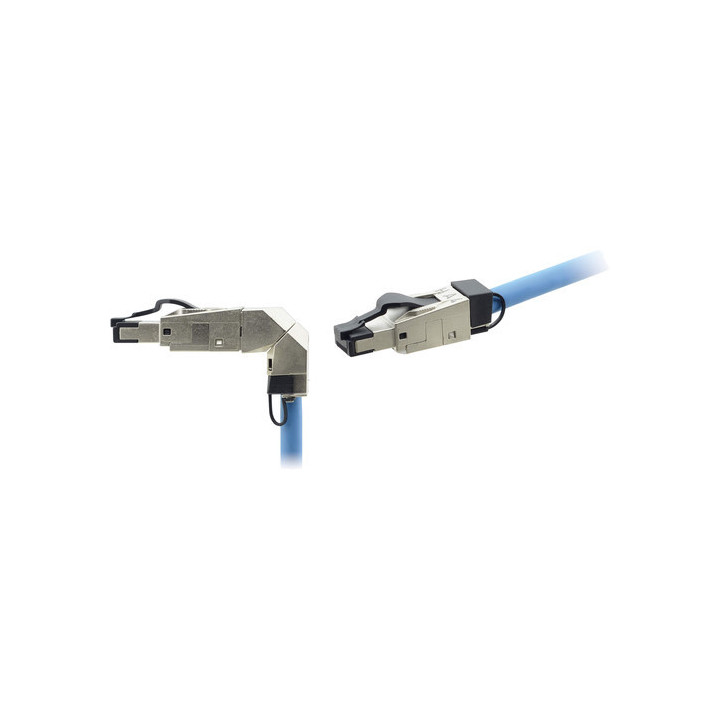

Kramer CON-FIELD - Field assembly 180° Shielded RJ-45 Connector for CAT Cable

185694
Kramer CON-FIELD - Field assembly 180° Shielded RJ-45 Connector for CAT Cable
Kramer CON-FIELD - Field assembly 180° Shielded RJ-45 Connector for CAT Cable
The CONN-FIELD is a high-bandwidth, shielded RJ-45 connector used for terminating Kramer LAN cables. This connector requires no crimping tool to install, and provides fast and reliable termination of shielded twisted-pair cables in the field.
... learn more
Visuals Price
24.65 CHF VAT excl.

26.65 CHF Inc. VAT

Manufacturer price 29,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Kramer 180° Shielded RJ-45 Connector for Field Mounting for CAT Cable,
n With a die-cast zinc housing and compact design, Kramer's shielded RJ-45 connector for field mounting for CAT cable can be used to easily terminate LAN cables without requiring a crimping tool. Furthermore, this connector is suitable for CAT 6A cabling and supports both 10 Gb Ethernet as well as PoE, PoE plus and UPoE standards.,
n Features,
n - Robust die-cast zinc housing,
n - Multi-port capability whilst being fully shielded,
n - The cable clamp clips directly onto the strain relief sleeve and the protected locking mechanism requires no crimping tools,
n - Reconnectable for reuse,
n - CAT 6A transmission characteristics compliant with ISO/IEC 11801 Ed.2.2:201106,
n - Suitable for 10 Gb Ethernet (IEEE 802.3an), Power over Ethernet (PoE, PoE plus and UPoE) and HDBaseT,
n



Specifications



Shielding

Shielded

Transmission Technology

Copper

Colour

Black

Capabilities

Multi-port compatible

Entry

Cable Entry/Exit,
n CONFIELD360: Variable, 8 positions, CONFIELD: 180°

Category

TIA: 6A

Class

ISO/IEC,
n EA

Contacts

Contacts,
n CuSn (tin bronze),
n Contact Finish,
n Ni + Au (nickel gold)

Latches

Plastic

Building Platform

Office Buildings,
n ISO/IEC 11801 Ed. 2.2:201106; DIN EN 501732:201109; TIA/EIA 568C,
n Industrial Area,
n ISO/IEC 24702; DIN EN 501733:201109; TIA/EIA 1005,
n Residential Units,
n ISO/IEC 15018; DIN EN 501734: 201109; TIA/EIA 570B

CE

Compliant

RoHS

Compliant

PoE Capability

IEEE 802.3af,
n IEEE 802.3at

UPoE Compatible

Yes

HDBaseT

Yes

Transmission Rate

IEEE 802.3an (up to 10 Gbps)

Termination

Stranded Wire Termination,
n Conductor Section AWG: AWG 27/722/7,
n Conductor Section: 0.004 x 0.013" / 0.111 x 0.355 mm2,
n Conductor Diameter: 0.018 x 0.030" / 0.457 x 0.762 mm

Sheath

Cable Sheath Diameter,
n 0.217 x 0.413" / 5.5 x 10.5 mm

Electrical

Rated Voltage,
n 50 V (max.),
n Contact Resistance,
n 65.6' / 20 m (max.),
n Insulation Resistance,
n 1 640.4' / 500 m (min.)

Dielectric Strength

Conductor Shielding,
n 1500 VDC

Mating Cycles

Service Life - Number of Mating Cycles,
n 750 min.

Cable Clamp

Locking Clip

Temperature

Operating: -40 to 158°F / -40 to 70°C,
n Storage: -40 to 158°F / -40 to 70°C

Dimensions

1.960 x 0.543 x 0.650" / 49.8 x 13.8 x 16.5 mm



The CONN-FIELD is a high-bandwidth, shielded RJ-45 connector used for terminating Kramer LAN cables. This connector requires no crimping tool to install, and provides fast and reliable termination of shielded twisted-pair cables in the field.
