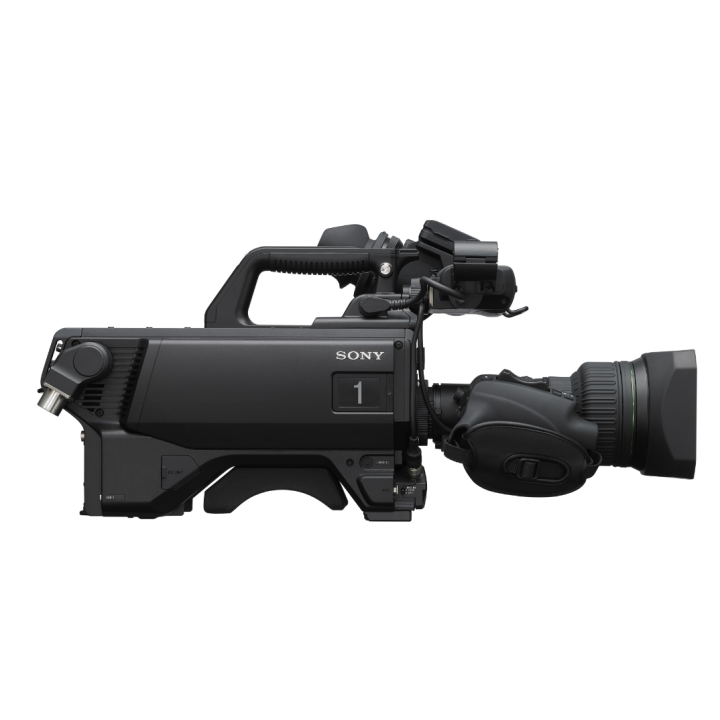

Sony HDC-3100 - HD Portable Studio Camera head with SMPTE Fiber Interface

1009875
5013493392342
Sony HDC-3100 - HD Portable Studio Camera head with SMPTE Fiber Interface
Sony HDC-3100 - HD Portable Studio Camera head with SMPTE Fiber Interface
Sony HDC-3100 - HD Portable Studio Camera head with SMPTE Fiber Interface
Sony HDC-3100 - HD Portable Studio Camera head with SMPTE Fiber Interface
Sony HDC-3100 - HD Portable Studio Camera head with SMPTE Fiber Interface
Sony HDC-3100 - HD Portable Studio Camera head with SMPTE Fiber Interface
Sony HDC-3100 - HD Portable Studio Camera head with SMPTE Fiber Interface
Sony HDC-3100 - HD Portable Studio Camera head with SMPTE Fiber Interface
Sony HDC-3100 - HD Portable Studio Camera head with SMPTE Fiber Interface
Sony HDC-3100 - HD Portable Studio Camera head with SMPTE Fiber Interface
The HDC-3100 system camera brings new levels of creative flexibility and portability to live production environments. Enjoy premium HD pictures plus the convenience of optical fibre transmission.
... learn more
Visuals Price
20,430.88 CHF VAT excl.

22,085.79 CHF Inc. VAT

Manufacturer price 21 506,19 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Three 2/3-inch CMOS sensors portable system camera for fiber operation
Raising the standard in creative flexibility
The HDC-3100 system camera brings new levels of creative flexibility and portability to live production environments. Enjoy premium HD pictures plus the convenience of optical fibre transmission.
Next generation imaging
Capture premium pictures with the world’s first 2/3-inch HD CMOS sensor with global shutter technology that eliminates the ‘jello effect’ and banding noise. This allows the HDC-3100 to capture pristine images with low noise and excellent sensitivity (F12 at 1080/59.94i or F13 at 1080/50i).
More format flexibility
The HDC-3100 can output 3G-SDI signals in a range of formats right up to 1080/50p, with 4K available via the CCU’s 12G-SDI and Quad 3G-SDI interfaces. So you can benefit from maximum production convenience – and your viewers can enjoy premium picture quality.
Optical fibre transmission

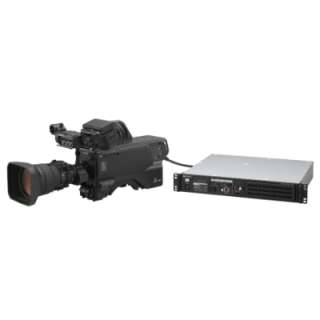

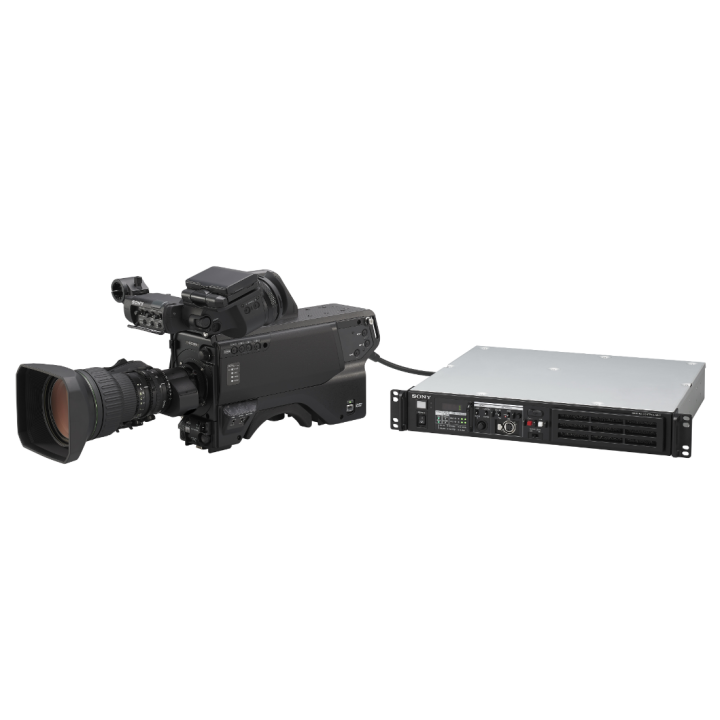

The HDC-3100 supports optical fibre transmission as standard, with a SMPTE-standard interface for connection with associated HDCU-3100/HDCU-2000 series Camera Control Units.
Get the look
Broaden your creative possibilities and achieve exactly the look you want in any shooting situation. Low-key Saturation ensures rich, vibrant colours in low-light areas. Powerful gamma functions give absolute control over fine-tuning tonal values, contrast and detail.
Features
The go anywhere camera

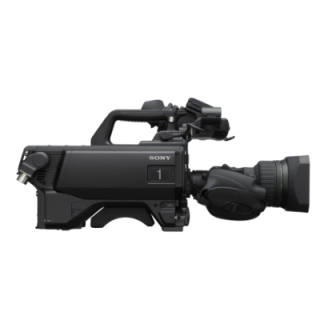

The magnesium alloy body of the HDC-3100 offers exceptional lightness and strength. Sure, stable handling is enhanced by the camera’s low centre of gravity, easily adjustable shoulder pad and widened hand grip area. Also ideal for handheld operation, HDC series studio cameras offer exceptional user ergonomics in a wide range of studio and field-based production environments.
Seamless integration
Backwards compatibility with Sony’s industry-acclaimed HDC-2000 series system cameras simplifies smooth integration with your current live production infrastructures, including cameras and CCUs.
Rich focus assist functions
The Viewfinder Detail function adds dedicated image-enhancing edge signals directly to the viewfinder, helping the operator to focus quickly and precisely in any shooting situation. It’s complemented by a Focus Assist Indicator and advanced Focus Position Meter function.
Servo controlled ND filter
An optical Neutral Density (ND) filter wheel opens up wider creative possibilities. The filter can be controlled from a remote control panel, master setup unit, or directly from the camera head.
Network TRUNK
Network TRUNK (via LAN port) allows high-speed data transmission between the camera and CCU at up to 1 Gbps to support configurability with IP-based products and systems.




Specifications



General



Power requirements

AC 240 V, 1.05 A (max.), DC 240 V, 1.05 A (max.)

Operating temperature.

20°C to +45°C (.4°F to 113°F)

Storage temperature.

20°C to +60°C (.4°F to 140°F)

Mass

Approx. 4.8 kg (10 lb 9 oz)

Power requirements

AC 240 V, 1.05 A (max.), DC 240 V, 1.05 A (max.)

Operating temperature.

20°C to +45°C (.4°F to 113°F)

Imager



Imager

2/3 inch type CMOS sensor with global shutter

Method

3-CMOS, RGB

Electrical Characteristics



Sensitivity

F12 with 1080/59.94i

F13 with 1080/50i

(at 2,000 lx with 89.9% reflectance)

Signal-to-noise ratio

-62 dB or higher

Geometric distortion

Negligible (not including lens distortion)

Optical System Specifications



Spectrum system

F1.4 prism

Built-in filters

1: CLEAR, 2: ¼ND, 3: 1/16ND, 4: 1/64ND

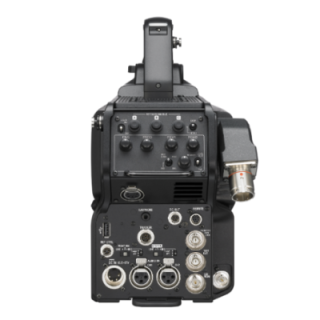

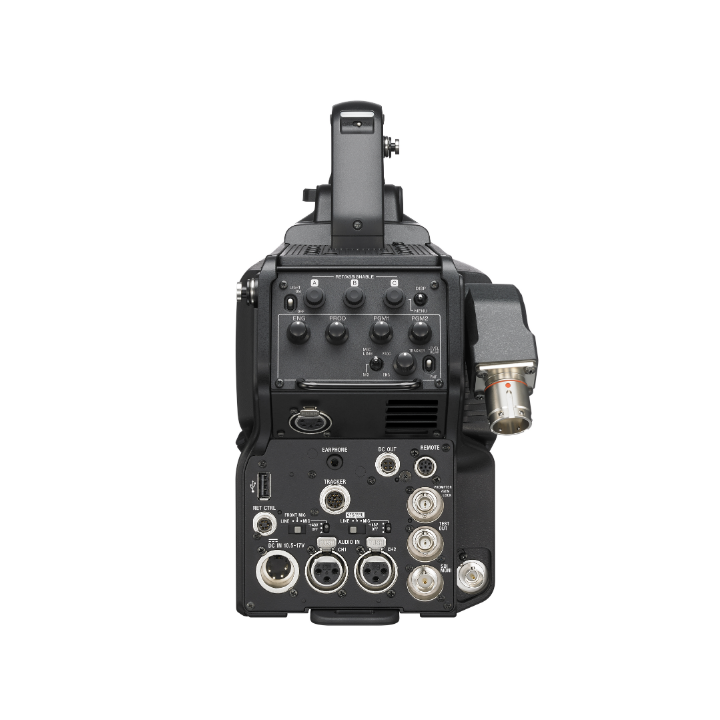

Input Output Connectors



CCU

Electro-optical connector (LEMO 3K.93C connector) (x1)

LENS

12-pin (x1)

VF

20-pin (x1)

MIC 1 IN

XLR 3-pin, female (x1)

AUDIO IN CH1, CH2

2XLR 3-pin, female (x1 each)

AUDIO switch for MIC: –60 dBu (can be selected up to –20 dBu in the menu), balanced

AUDIO switch for LINE: 0 dBu, balanced

INTERCOM 1, INTERCOM 2

XLR 5-pin, female (x1)

EARPHONE

4-pole mini jack (x1), (2-pole mono, 3-pole stereo, 4-pole CTIA standard, 4-pole OMTP standard)

DC IN

XLR 4-pin (x1), DC 10.5 to 17 V

DC OUT

4-pin (x1), DC 10.5 to 17 V, max. 0.5 A, 2-pin (x1), DC 10.5 to 17 V, Max. 2.5 A

BNC (x1)

No

SDI MONI

BNC (x1)

TEST OUT

BNC (x1)

PROMPTER/GENLOCK

BNC (x1)

PROMPTER 1 Vp-p, 75 Ω

GENLOCK HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 Ω, SD: Black burst (NTSC: 0.286 Vp-p, 75 Ω/PAL: 0.3 Vp-p, 75 Ω)

PROMPTER2

No

RET CTRL

6-pin (x1)

REMOTE

8-pin (x1)

TRACKER

12-pin (x1)

CRANE

No

USB

USB 2.0 Type A 4-pin (x1) (for connecting USB drive)

NETWORK TRUN

No
