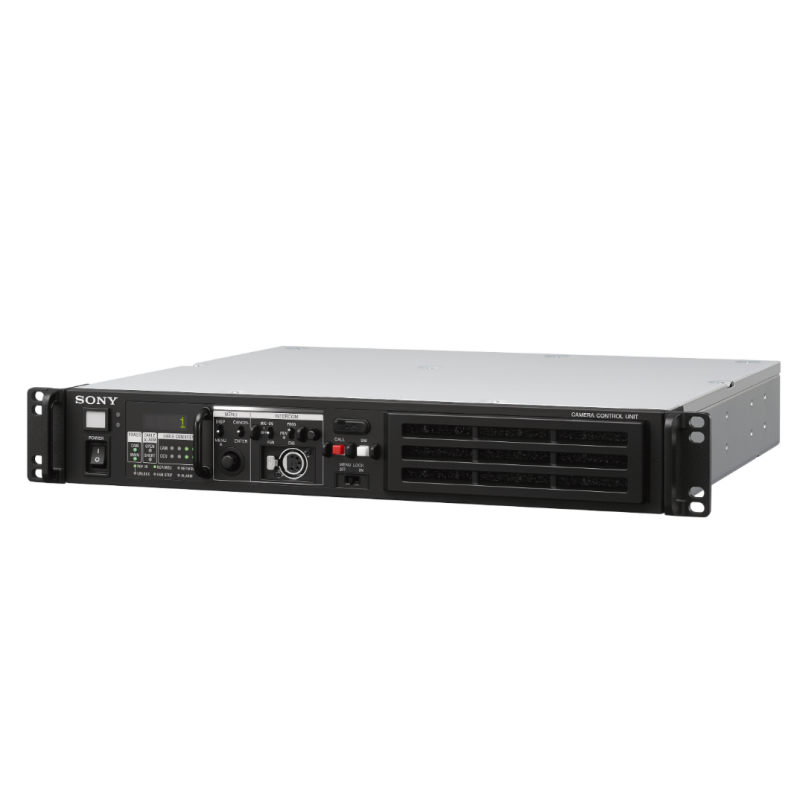

The HDCU-3170 Triax Camera Control Unit is an ideal companion for the Sony HDC-3170 system camera. It also adds IP live production capabilities to our full range of broadcast and studio system cameras.
... learn more
Visuals Price
11,430.40 CHF VAT excl.

12,356.26 CHF Inc. VAT

Manufacturer price 12 032,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

IP-compatible Triax camera control unit
The HDCU-3170 Triax camera control unit is the ideal companion for Sony's HDC-3170 system camera. It also adds live IP production capabilities to our comprehensive range of broadcast and studio system cameras.
Whilst primarily intended for triax use, the addition of the optional HKCU-FB30 fibre optic card makes the HDCU-3170 compatible with both triax and fibre systems – an advantage for production companies and OB vehicles working in stadiums and venues with different transmission systems.
Connecting to compatible cameras via triax cable, the compact HDCU-3170 (1.5U) supplies power to the camera, performs signal processing and provides an interface with external equipment.
With the addition of optional cards and kits, the HDCU-3170 offers support for various interfaces, including 3G SDI and IP. The CCU can simultaneously deliver HD, HDR and SDR outputs when used with HDC-3500 series system cameras.
Combined with the optional HKCU-SFP30 card, designed for the SMPTE ST 2110 Professional Media Over Managed IP Network suite of standards, the HDCU-3170 CCU supports essential features required for live IP production, including tally, intercom and return.
Features
Compact and versatile
The compact 1.5U camera control unit creates a standard 19-inch rack system that is ideal for production areas with limited space.
IP functionality for live production
The optional HKCU-SFP30 interface kit adds essential features required for live IP production, including ST2110 output and return and NMOS IS-04/05, as well as tally, intercom and IP return.
Eight built-in SDI outputs
The HDCU-3170 is equipped with eight built-in SDI outputs, including four 3G-SDI outputs. For additional production flexibility.
High-quality long-distance signal transmission
The addition of the HKCU-SFP30 option enables long-distance signal transmission up to 10 km over single-mode fibre, making the CCU ideal for space-limited environments such as production vehicles.



Specifications



General



Power requirements

100 V to 240 V AC, 50/60 Hz

Current consumption

5 A (max.)

Operating temperature

5°C to 40°C (41°F to 104°F)

Storage temperature

–20°C to +60°C (–4°F to +140°F)

Weight

Approximately 8.1 kg (17 lb 14 oz)

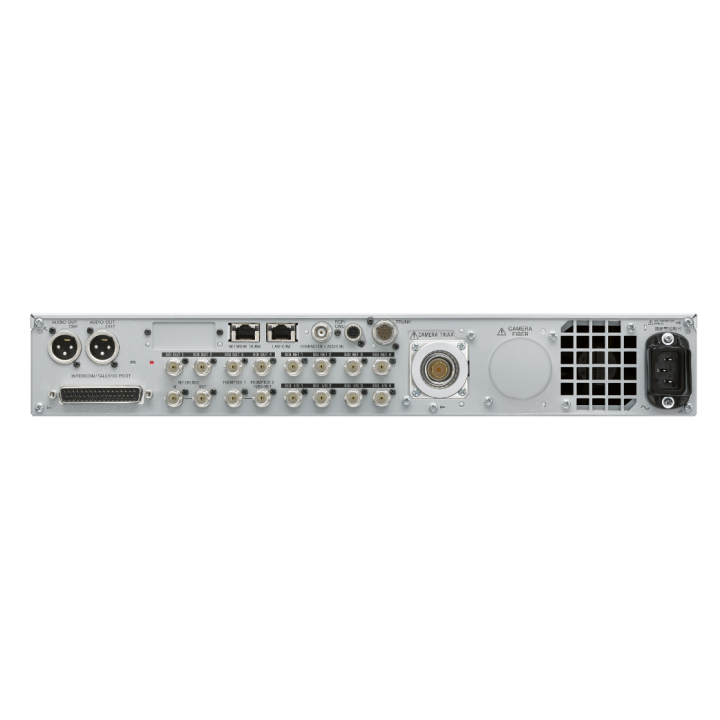

Input/output connectors



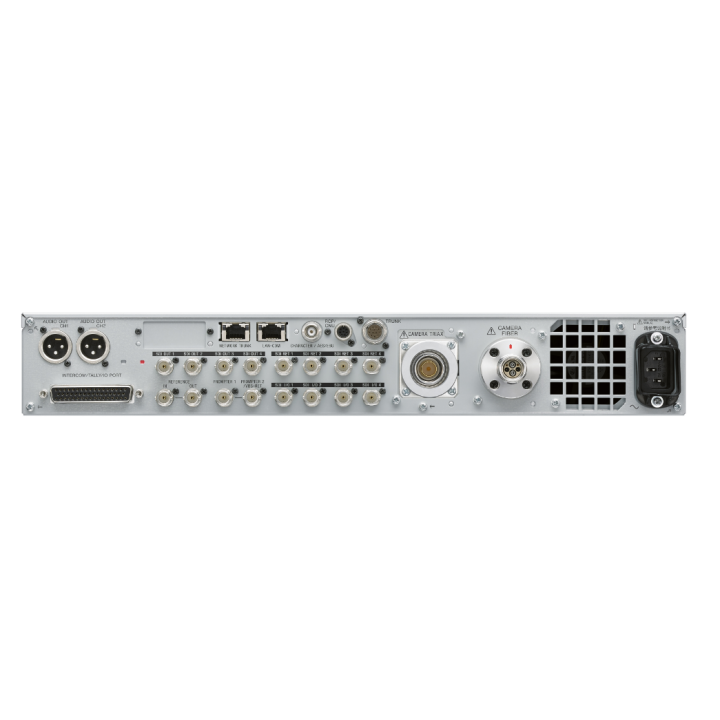

CAMERA FIBRE

No

CAMERA TRIAX

Triax connector (x1)

INTERCOM/TALLY/I/O PORT

50-pin sub-connector (x1)

INTERCOM (PROD/ENG), 4 W: 0 dBu, RTS: 0 dBu, DC: –14 dBu

PGM, 3 systems, 0 dBu/–20 dBu (for HDC-3100/HDC-3170)

TALLY (R, G, Y)

FLAG

RCP/CNU

8-pin multi-connector (x1)

TRUNK

12-pin (x1)

LAN-COM

8-pin (x1)

NETWORK TRUNK

8-pin (x1)

SDI I/O 1 to 4

3G/HD/SD SDI I/O

BNC (x4)

3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 Ω, 2.970 Gbit/s/2.967 Gbit/s

HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbit/s/1.4835 Gbit/s

SD-SDI: SMPTE ST259, 0.8 Vp-p, 75 Ω, 270 Mbit/s

3G-SDI/HD-SDI/SD-SDI, selectable character signal

REFERENCE INPUT/OUTPUT

BNC (x2), looped output

HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 Ω

SD: Sync signal (NTSC: 0.286 Vp-p, 75 Ω/PAL: 0.3 Vp-p, 75 Ω) or NTSC 10F-BB

The HDCU-3170 Triax Camera Control Unit is an ideal companion for the Sony HDC-3170 system camera. It also adds IP live production capabilities to our full range of broadcast and studio system cameras.
