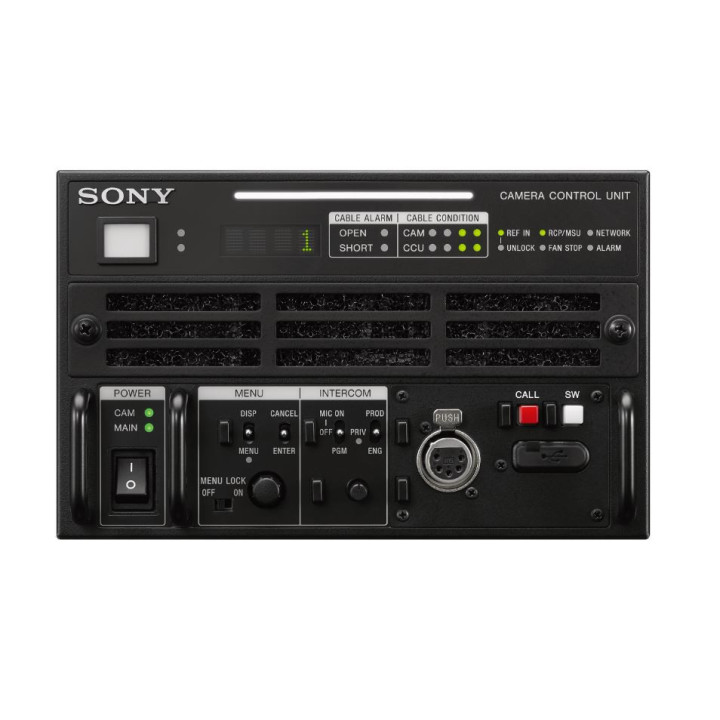

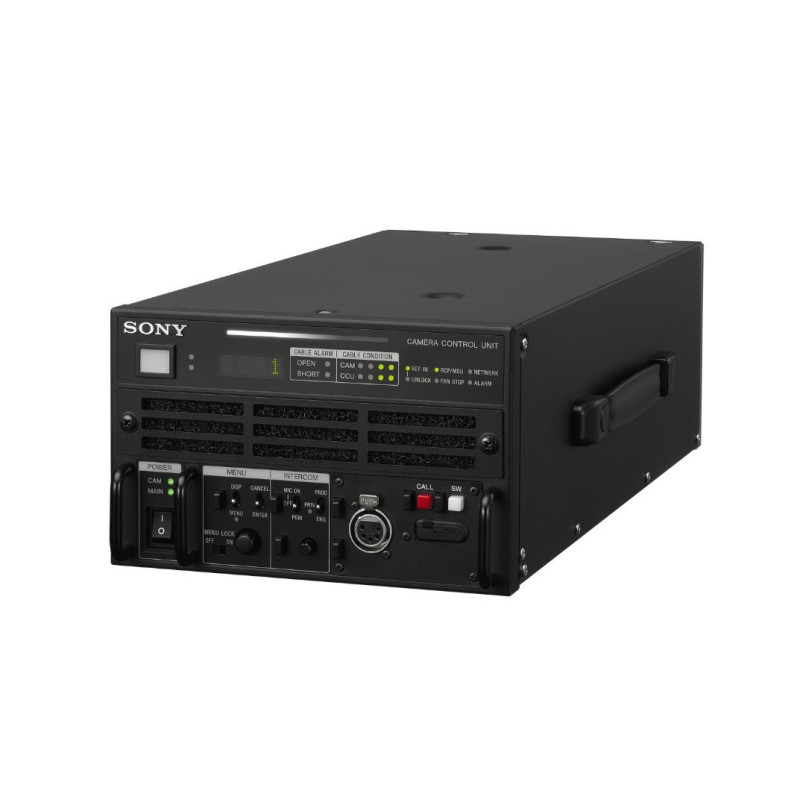

The HDCU-3500 Camera Control Unit is designed for operation with the Sony HDC-3500 and HDC-3500 4K/HD system cameras. It provides interfaces to external equipment and power supply to the camera in a compact, portable half rack width 3U form factor thats ideal for OB production environments.
... learn more
Visuals Price
15,181.00 CHF VAT excl.

16,410.66 CHF Inc. VAT

Manufacturer price 15 980,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Sony portable fibre CCU for HDC-3100/3500
IP-compatible Camera Control Unit (CCU) for HDC-3500 4K/HD system camera
The HDCU-3500 Camera Control Unit is designed to operate with Sony HDC-3500 and HDC-3500 4K/HD system cameras. It provides interfaces with external equipment and camera power in a compact, portable 3U half-rack format, ideal for outside broadcast production environments.
12G-SDI and 4K output is available via the optional HZCU-UHD35 software licence. The CCU also provides a pathway to IP operation with the HDC series fibre optic studio cameras.
IP Tally support (TSL UMD v5.0) is included as standard, whilst CCU menu settings can be adjusted remotely via a network
Features
Compact body, powerful capabilities
This CCU integrates 4K and IP in a compact half-rack body.
Compact body, powerful capabilities
This CCU integrates 4K and IP in a compact half-rack body.
MENU adjustment from a web browser
The CCU supports menu control from a web browser. Monitoring the status of multiple CCUs, importing/exporting settings files and remote firmware updates improve efficiency and convenience of use.
IP ready
The optional HKCU-SFP50 IP interface kit adds ST 2110 4K/HD video/audio IP and IP intercom capabilities.
Wide range of HDC camera support
The HDCU-3500 supports not only the HDC-3500, HDC-3100 but also the existing HDC-2500 series natively. In addition, with hardware options, the HDCU-3500 can connect to the HDC-5500, the flagship 4K camera.



Specifications



General



Power requirements

100 V to 240 V AC, 50 / 60 Hz

Current consumption

4.5 A (max.)

Operating temperature

–10 °C to +40 °C (14 °F to +104 °F)

Storage temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Weight

Approx. 6.3 kg (13 lb 14 oz)

Input/output connectors



CAMERA FIBRE

Fibre optic connector (x1)

CAMERA TRIAX

No

INTERCOM / TALLY / I/O PORT

50-pin D-sub connector (x1), INTERCOM (PROD/ENG), 4 W: 0 dBu, RTS: 0 dBu, CC: –14 dBu, PGM, 3 systems, 0 dBu/–20 dBu, TALLY (R, G, Y), FLAG

RCP / CNU

8-pin multi-pin connector (x1)

TRUNK

12-pin (x1)

LAN-COM

8-pin (x1)

NETWORK TRUNK

8-pin (x1)

SDI I/O 1 to 4

3G / HD / SD-SDI I/O, BNC (x4), 3G-SDI: SMPTE ST424 / 425 Level-A / B, 0.8 Vp-p, 75 Ω, 2.970 Gbit/s / 2.967 Gbit/s, HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbit/s / 1.4835 Gbit/s

REFERENCE IN / OUT

BNC (x2), loop-through output, HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 Ω, SD: Black burst signal (NTSC: 0.286 Vp-p, 75 Ω/PAL: 0.3 Vp-p, 75 Ω) or NTSC 10F-BB

Input connectors



AC INPUT

AC 100 V to 240 V (x1)

SDI RET 1 to 4

BNC (x4), 3G-SDI: SMPTE ST424 / 425, 2.970 Gbit/s / 2.967 Gbit/s, HD-SDI: SMPTE ST292, 1.485 Gbit/s / 1.4835 Gbit/s, SD-SDI: SMPTE ST259, 270 Mbit/s



PROMPTER and PROMPTER 2 / VBS-RET

BNC (x2), loop-through output in 1CH mode, internal 75 Ω termination in 2CH mode, analogue signal, 1.0 Vp-p, 75 Ω

Output connectors



AUDIO OUTPUT CH1, CH2

XLR 3-pin, male (x2), 0 dBu / –20 dBu / +4 dBu

CHARACTER / ABS / EBU

NC (x1), VBS, 1 Vp-p, 75 Ω
AES/EBU format
VBS / HD and AES / EBU selectable

SDI OUT 1 to 4

3G / HD / SD SDI OUTPUT, BNC (x4), 3G-SDI: SMPTE ST424 / 425 Level-A / B, 0.8 Vp-p, 75 Ω, 2.970 Gbit/s / 2.967 Gbit/s, HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbit/s / 1.4835 Gbit/s
SD-SDI: SMPTE ST259, 0.8 Vp-p, 75 Ω, 270 Mbit/s, 3G-SDI / HD-SDI / SD-SDI, selectable character signal

UHD SDI A, B

12G / 3G / HD SDI OUTPUT, BNC (x2)
12G SDI: SMPTE ST2082, 0.8 Vp-p, 75 Ω, 11.88 Gbit/s / 11.868 Gbit/s
* 12G SDI can be selected by installing the HZCU-UHD35.
3G SDI: SMPTE ST424 / 425 Level-A / B, 0.8 Vp-p, 75 Ω, 2.970 Gbit/s / 2.967 Gbit/s
HD SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbit/s / 1.4835 Gbit/s

UHD SDI C, D



12G / 3G / HD SDI I/O, BNC (x2)
12G SDI: SMPTE ST2082, 0.8 Vp-p, 75 Ω, 11.88 Gbit/s / 11.868 Gbit/s
* 12G SDI can be selected by installing the HZCU-UHD35.
3G SDI: SMPTE ST424 / 425 Level-A / B, 0.8 Vp-p, 75 Ω, 2.970 Gbit/s / 2.967 Gbit/s
HD SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbit/s/1.4835 Gbit/s



The HDCU-3500 Camera Control Unit is designed for operation with the Sony HDC-3500 and HDC-3500 4K/HD system cameras. It provides interfaces to external equipment and power supply to the camera in a compact, portable half rack width 3U form factor thats ideal for OB production environments.
