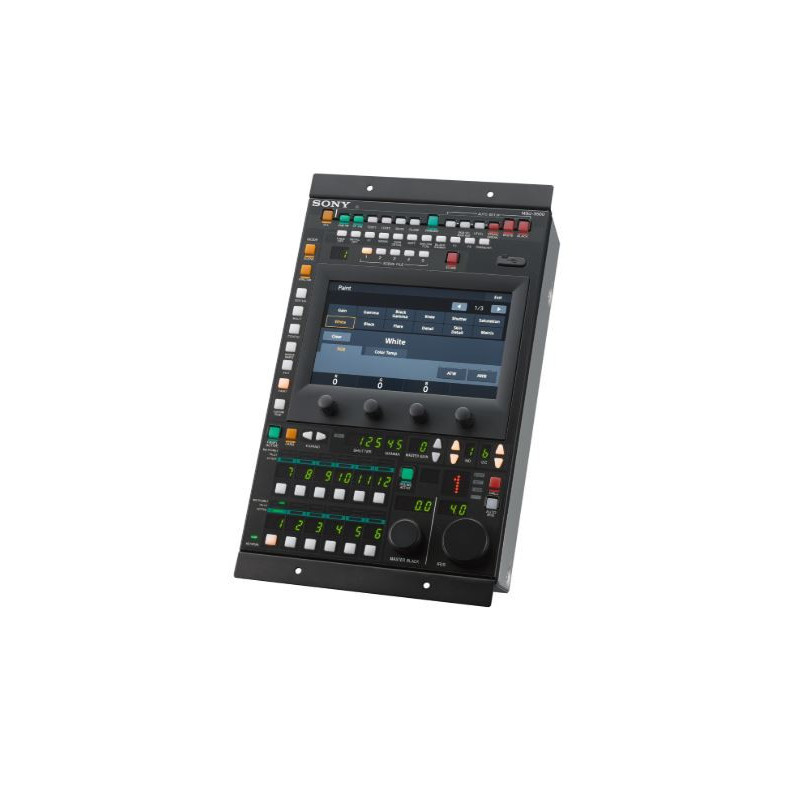

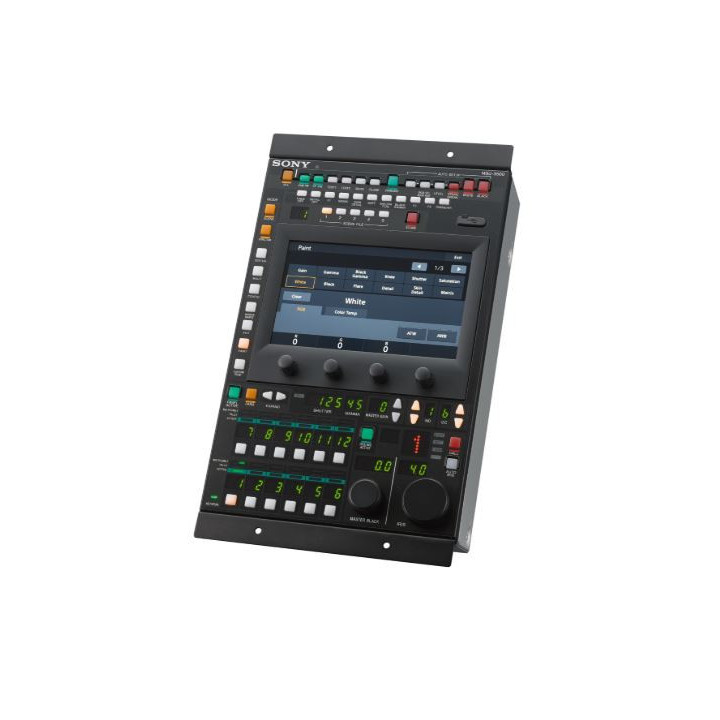

Sony MSU-3500//U - Master Setup Unit (Vertical)
1025640
5013493411968
The MSU-3500 master setup unit allows intuitive control and maintenance for the connected Sony HDC series system cameras.
Visuals Price
8,037.00 CHF
VAT excl.
8,688.00 CHF Inc. VAT
Manufacturer price 8 460,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Sony Master Setup Unit (vertical)
The MSU-3500 Master Setup Unit enables intuitive control and maintenance of connected Sony HDC series system cameras.
Sharing the same compact vertical format and familiar ergonomics as the MSU-1500, the MSU-3500 fits into a 9.5-inch EIA rack (half-rack format). It can control multiple camera systems via a 1000Base-T LAN network, or a single camera by direct point-to-point connection via a Sony CCA cable.
Operation is enhanced with a new touch screen featuring improved visibility as well as additional LED indicators and assignable keys. The menu page provides direct access to camera, CCU and BPU functions for greater ease of use and extensibility.
Features
Flexible and scalable system configuration
The MSU-3500 can be configured for use with large and small-scale camera control systems, sharing the same mechanical dimensions and interface system as the current MSU-1500 model. One MSU-3500 can flexibly control up to 96 HDC series system camera units.
High-speed LAN connection
The MSU-3500 supports connectivity via 1000Base-T Ethernet LAN in addition to single connection via Sony 8-pin CCA cable.
Web user interface application
Enables convenient remote operation for initial MSU settings from a networked remote PC with an intuitive user interface (UI).
New LCD touch screen
The large LCD touch screen is equipped with a new 7-inch WVGA display (800x480) with improved visibility.
Key and menu customisation
Functions can be assigned to assignable keys for selected menu items, enabling quick and easy access.
USB memory stick
Back up and load MSU and connected camera settings to/from a USB memory stick via the MSU control panel.
The MSU-3500 Master Setup Unit enables intuitive control and maintenance of connected Sony HDC series system cameras.
Sharing the same compact vertical format and familiar ergonomics as the MSU-1500, the MSU-3500 fits into a 9.5-inch EIA rack (half-rack format). It can control multiple camera systems via a 1000Base-T LAN network, or a single camera by direct point-to-point connection via a Sony CCA cable.
Operation is enhanced with a new touch screen featuring improved visibility as well as additional LED indicators and assignable keys. The menu page provides direct access to camera, CCU and BPU functions for greater ease of use and extensibility.
Features
Flexible and scalable system configuration
The MSU-3500 can be configured for use with large and small-scale camera control systems, sharing the same mechanical dimensions and interface system as the current MSU-1500 model. One MSU-3500 can flexibly control up to 96 HDC series system camera units.
High-speed LAN connection
The MSU-3500 supports connectivity via 1000Base-T Ethernet LAN in addition to single connection via Sony 8-pin CCA cable.
Web user interface application
Enables convenient remote operation for initial MSU settings from a networked remote PC with an intuitive user interface (UI).
New LCD touch screen
The large LCD touch screen is equipped with a new 7-inch WVGA display (800x480) with improved visibility.
Key and menu customisation
Functions can be assigned to assignable keys for selected menu items, enabling quick and easy access.
USB memory stick
Back up and load MSU and connected camera settings to/from a USB memory stick via the MSU control panel.
|
|
Technical specifications |
|
|
General |
|
|
|
Power supply |
AC 100 - 240 V 50/60 Hz 0.30 A (max.) |
|
|
Operating temperature |
5°C to 40°C (41°F to 104°F) |
|
|
Dimensions (W x H x D) [excluding projections] |
204 x 310 x 67 mm (8 1/8 x 12 1/4 x 2 3/4 inches) |
|
|
Weight |
Approximately 3.4 kg (7 lb 8 oz) |
|
|
Input/output connectors |
|
|
|
LAN |
RJ-45 8-pin (x1) |
|
|
Remote CCU/CNU |
Multi 8-pin connector, female (x1) |
|
|
AUX |
Multi 8-pin connector, female (x1) |
|
|
I/O port |
D-Sub 50-pin, female (x1) |
|
|
AC input |
3-pin (x1) |
|
|
DC input |
XLR 4-pin (x1) |
The MSU-3500 master setup unit allows intuitive control and maintenance for the connected Sony HDC series system cameras.
