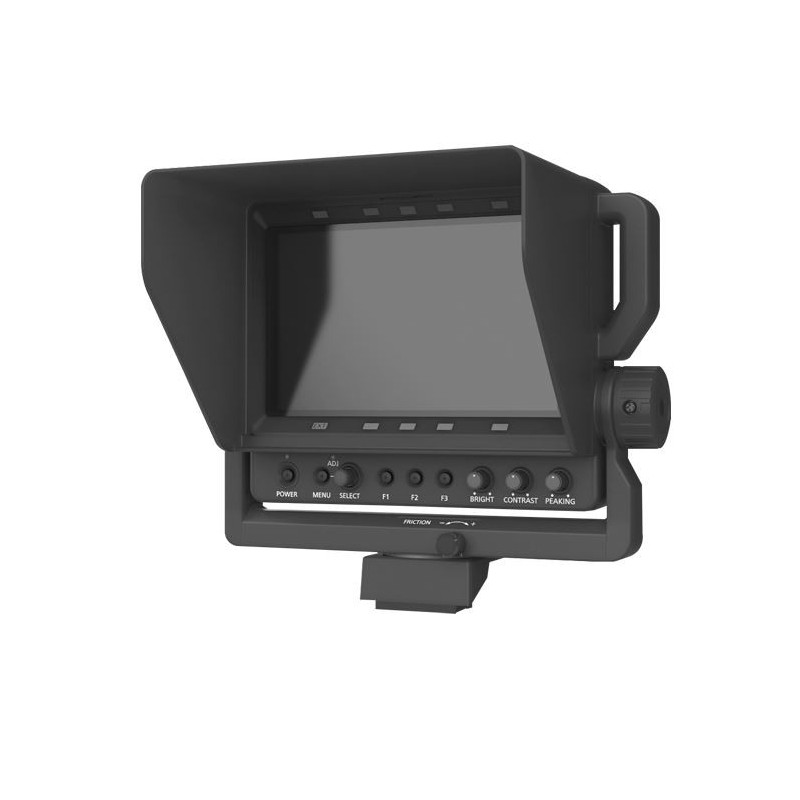

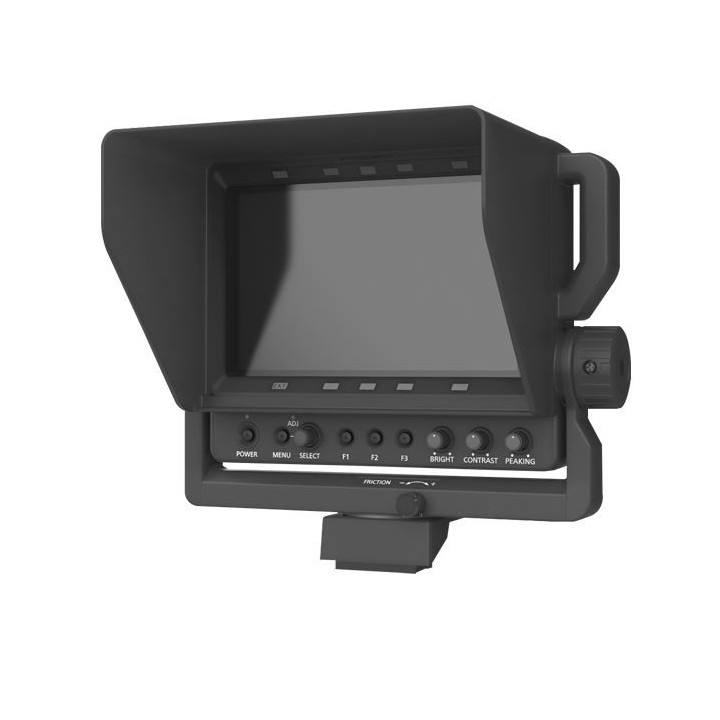

Panasonic AK-HVF75GJ - Camera Viewfinder
3,949.74 CHF Inc. VAT
-
Delivery
-
Delivery time 3 to 5 weeks
Order now, we'll deliver as soon as possible.
Contact us for alternatives:
022 561 07 07.
-
Delivery time 3 to 5 weeks
-
In-store pickup
- Available in 3 to 5 weeks
Lightweight at just 1.8 kg, low power consumption and high resolution. Equipped with advanced assistance functions.
Features
- Equipped with a 17.8 cm (7-inch) colour LCD screen with a resolution of 1280 x 800 (WXGA).
- Wide horizontal/vertical viewing angle of 176°, screen brightness of 400 nits and contrast of 800:1.
- Equipped with focus assistance functions (Focus in Red, Pixel by Pixel).
- Direct camera menu control possible.
- Equipped with three assignable function switches.
- Contrast, brightness and peaking can be adjusted.
- Tilt capability (90° up, 60° down) and pan (90° left and right).
|
|
Specifications |
|
|
General |
|
|
|
Power Supply |
DC 12 V (supplied by camera) |
|
|
Power Consumption |
11 W |
|
|
Operating Temperature |
0 °C to 45 °C (32 °F to 113 °F) |
|
|
Storage Temperature |
−20 °C to 60 °C (−4 °F to 140 °F) |
|
|
Operating Humidity |
10% to 85% (non-condensing) |
|
|
Weight |
Approximately 1.6 kg (3.53 lbs.) (without sunshade) |
|
|
Dimensions (W x H x D) |
243.5 mm x 212 mm x 85 mm |
|
|
Display Panel |
|
|
|
Dimensions |
7.0 inches |
|
|
Number of Pixels |
1280 x 800 (WXGA) |
|
|
Display Colour |
Approximately 16.77 million colours |
|
|
Switching Function/Connector |
||
|
Operation |
|
|
|
Connector |
Camera Interface Connector (29-pin D-sub x 1) |
|
|
Switching Function/Connector |
||
|
CAM |
1080/59.94i, 1080/50i |
|
