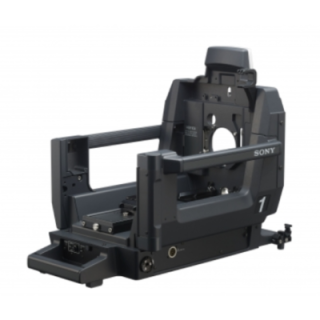

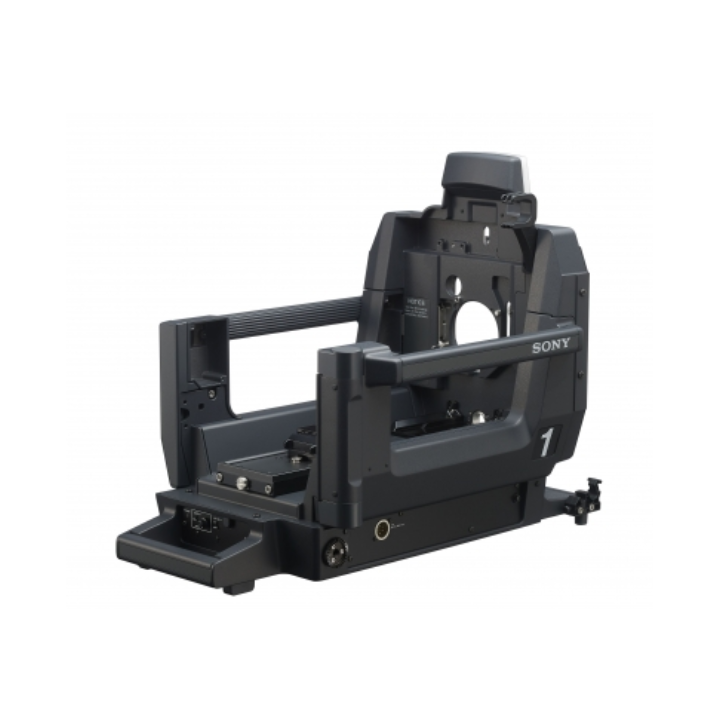

Sony HDLA-3501 - Large Lens Adapter
1055044
5013493453173
Basic version of Large Lens Adapter for HDC/HSC series with one-touch mechanism
Visuals Price
10,894.60 CHF
VAT excl.
11,777.06 CHF Inc. VAT
Manufacturer price 11 468,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

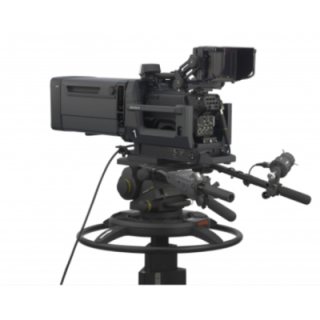

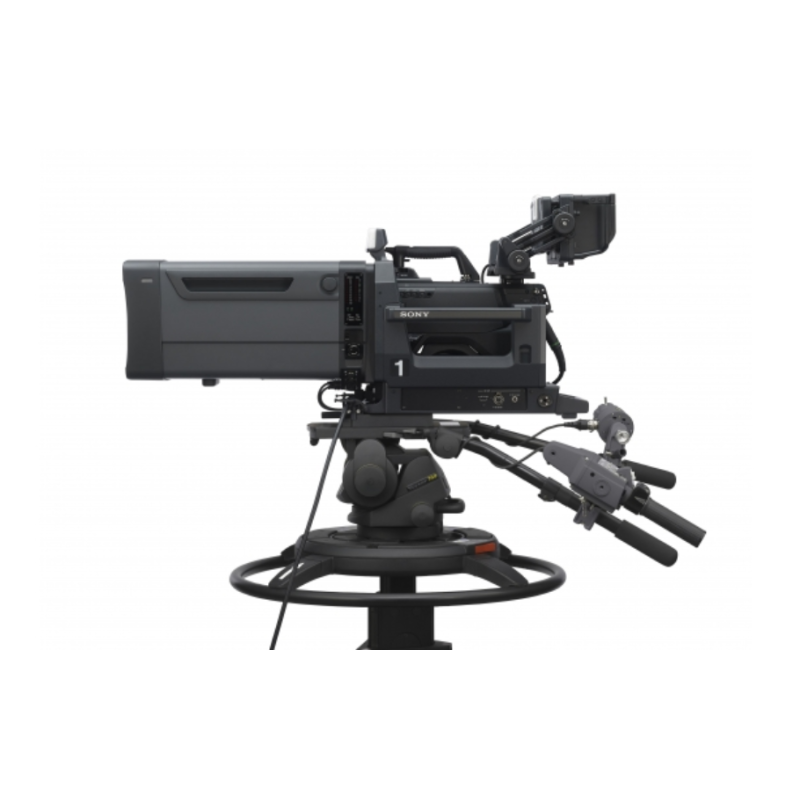

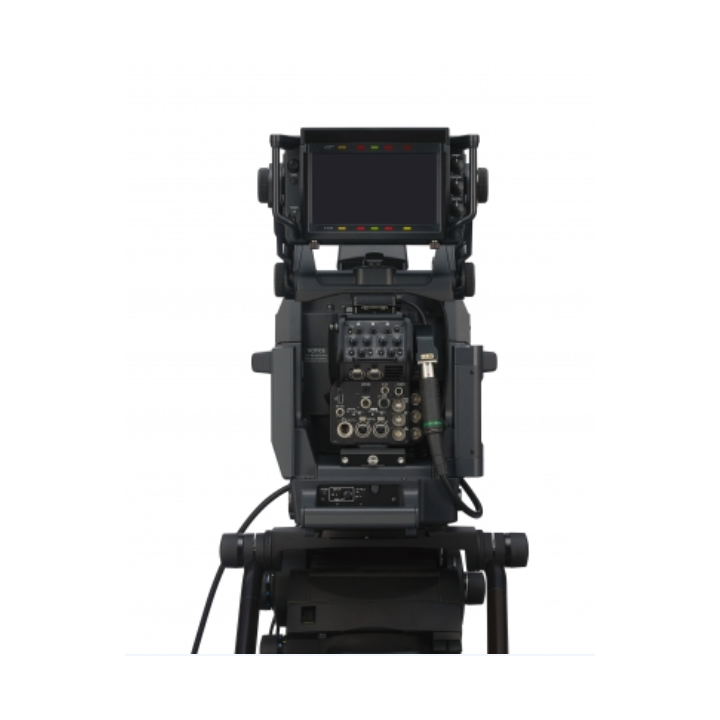

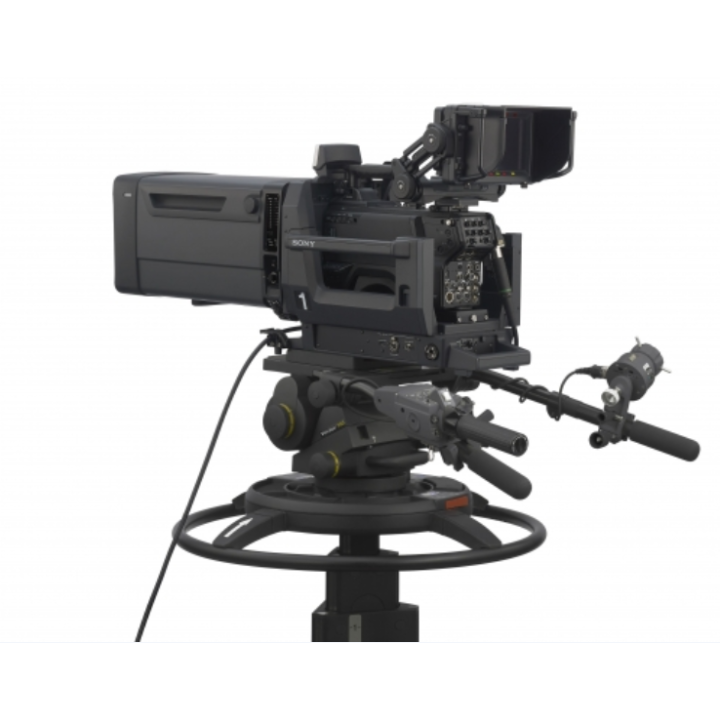

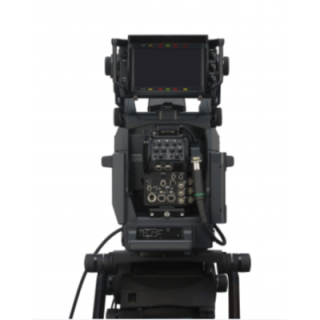

The HDLA-3501 enables the use of HDC cameras with large studio/outside broadcast lenses and viewfinders. It offers very simple one-action mounting without cable from the camera head, enabling quick and easy transition from portable to tripod configuration. It is an affordable and lighter model with its simple functionalities whilst enabling the use of rear panel controls on the combined camera head thanks to the wider open area of the HDLA-3501's external mechanical design.
|
|
Specifications |
|
| Dimensions (W x H x D) | 531 x 400 x 336 mm (21 x 15 3/4 x 13 1/4 inches) | |
| Weight | Approx. 12.7 kg (28 lb) | |
| Power requirements | 240 VAC, 0.9 A (max.) 240 VDC, 0.65 A (max.) 180 VDC, 0.85 A (max.) 12 VDC, 9.5 A (max.) |
|
| Operating temperatures | −20°C to +45°C (−4°F to +113°F) | |
| Storage temperatures | −20°C to +60°C (−4°F to +140°F) | |
| Lens interface connector | 36-pin x1 *1 | |
| DC IN connector | XLR 4-pin x1, 10.5 to 17 VDC | |
| DC OUT connector | • 4-pin round x1, 10.5 to 17 VDC, 1.5 A maximum *1 • XLR 4-pin x1, 10.5 to 17 VDC, 5A maximum *1 • USB Type-A x1 5VDC, 2.5A maximum *1 |
|
| Supplied items | • Operating manual CD-ROM (1) • A "Before using this device" sheet x1 • Front cover x1 • Camera support x2 • Camera cable clamp x2 • Cable fixing strap x1, Bracket x1, +B3x8 screws x2 • Top numbered tally plate x1 • Camera number plate for side panel x2 sets |
|
| Notes | The power supply of this adaptor can reach 108 W in total. It may be limited depending on the load and input conditions. | |
Basic version of Large Lens Adapter for HDC/HSC series with one-touch mechanism
