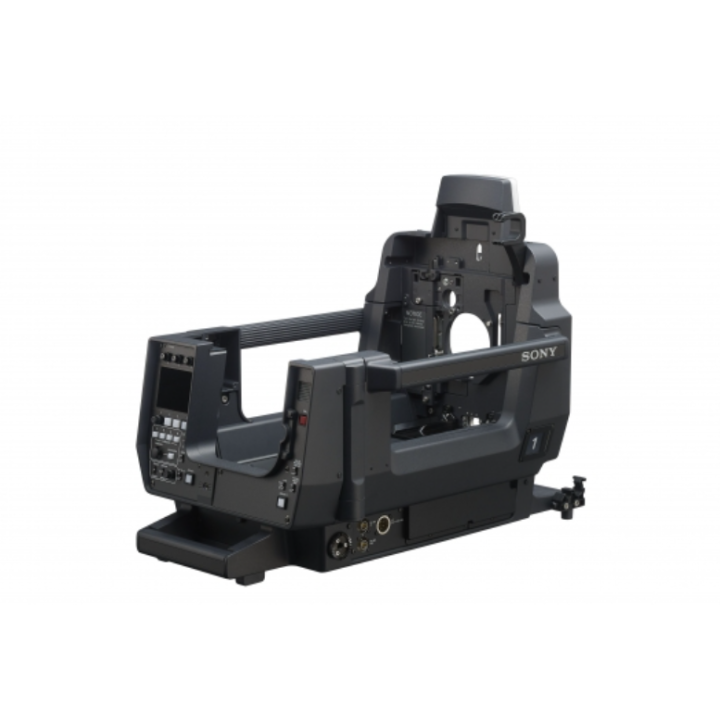

Sony HDLA-3505 - Large Lens Adapter of HDC/HSC Series
1055045
5013493453180
Large Lens Adapter of HDC/HSC series with one-touch mechanism and LCD menu panel
Visuals Price
12,859.20 CHF
VAT excl.
13,900.80 CHF Inc. VAT
Manufacturer price 13 536,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

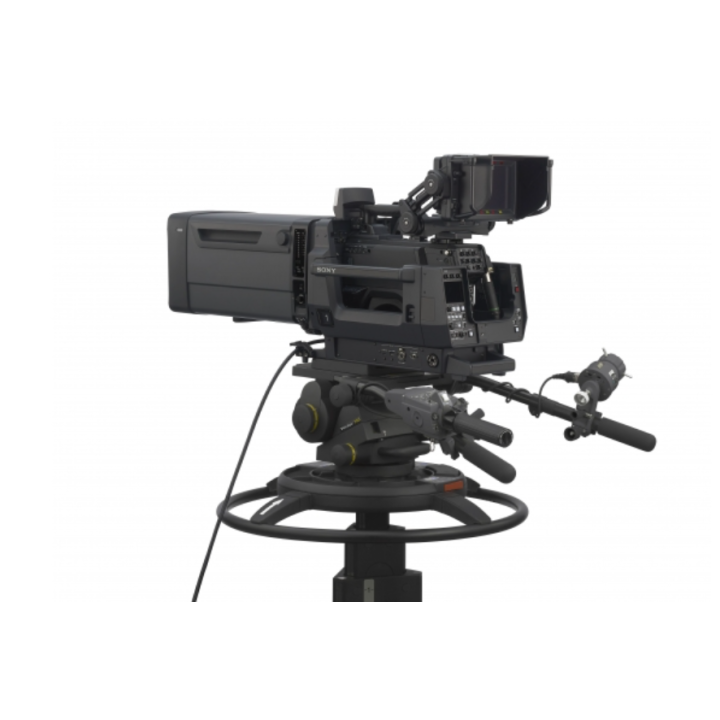

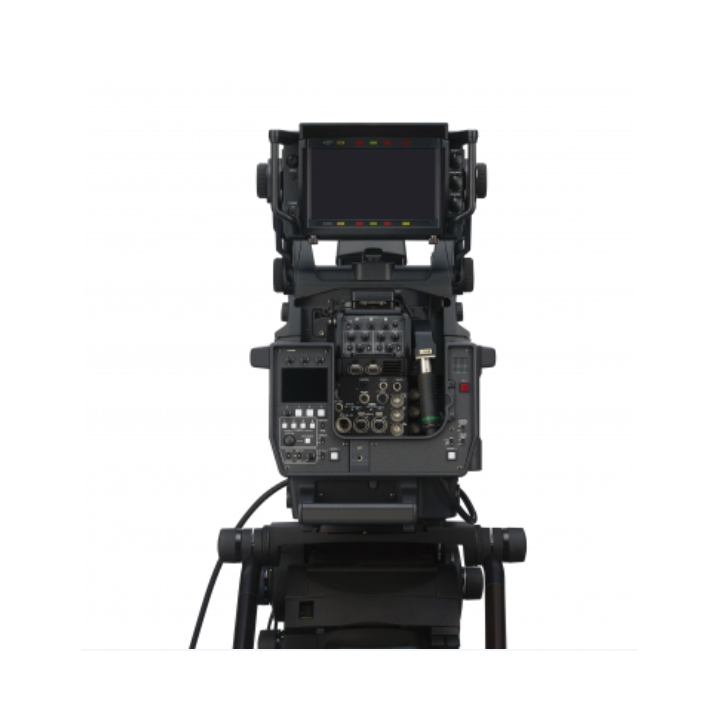

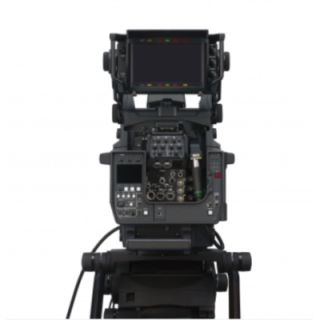

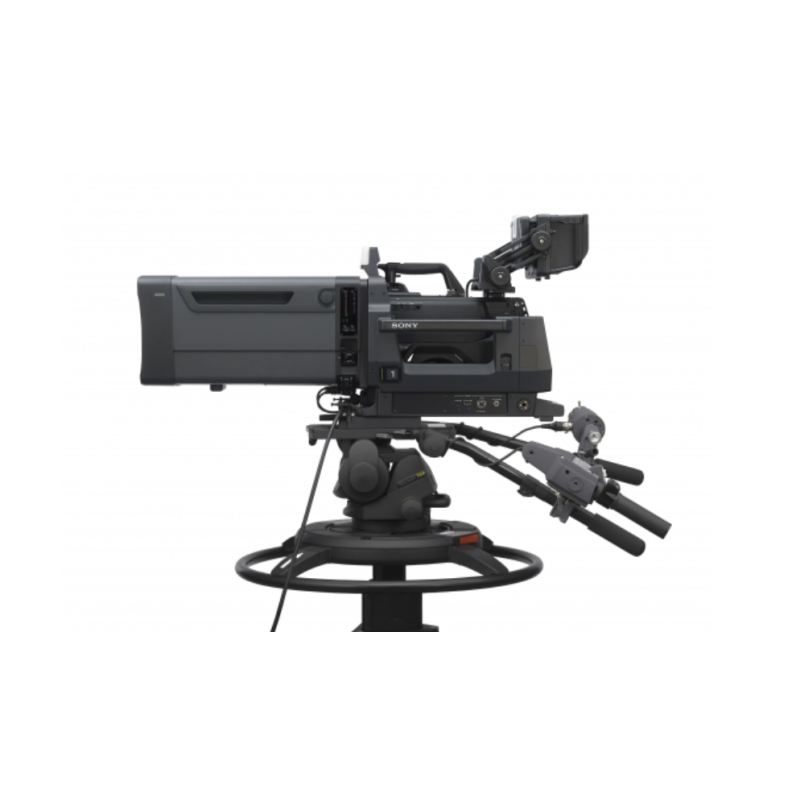

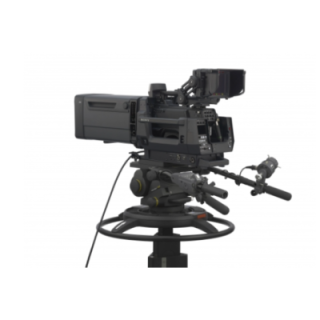

The HDLA-3505 enables the use of HDC/HSC cameras with large studio/outside broadcast lenses and viewfinders. It offers very simple mounting without cables with single-contact camera head attachment, allowing quick and easy conversion from portable to tripod configuration. It features an LCD screen for assigning frequently used functions to the SDI video input signal.
|
|
Technical specifications |
|
| Dimensions (W x H x D) | 531 x 400 x 336 mm (21 x 15 3/4 x 13 1/4 inches) | |
| Weight | Approximately 15.5 kg (34 lb 3 oz) | |
| Power requirements | 240 VAC, 0.9 A (max.) 240 VDC, 0.65 A (max.) 180 VDC, 0.85 A (max.) 12 VDC, 9.5 A (max.) |
|
| Operating temperatures | −20°C to +45°C (−4°F to +113°F) | |
| Storage temperatures | −20°C to +60°C (−4°F to +140°F) | |
| Lens interface connector | 36-pin x1 *1 | |
| DC IN connector | 4-pin XLR x1, 10.5 to 17 VDC | |
| DC OUT connector | • 4-pin round connector x1, 10.5 to 17 VDC, 1.5 A maximum *1 • 4-pin XLR x1, 10.5 to 17 VDC, 5A maximum *1 • USB Type-A x1 5VDC, 2.5A maximum *1 • USB Type-C x1 USB PD, 30W maximum *1 |
|
| Video input | • HD SDI input x1, BNC type | |
| Video output | • Direct output for HD SDI input x1, BNC type • LCD screen |
|
| Supplied accessories | • User manual CD-ROM (1) • "Before using this equipment" leaflet x1 • Front cover x1 • Camera bracket x2 • Camera cable strap x2 • Cable fixing strap x1, Bracket x1, screws +B3x8 x2 • Numbered plate for upper tally x1 set |
|
| Notes | *1The power supply of this adapter can reach 108 W in total. It may be limited depending on the load and input conditions. | |
Large Lens Adapter of HDC/HSC series with one-touch mechanism and LCD menu panel
