Hedbox - Professional Power Bank Set (780Wh)

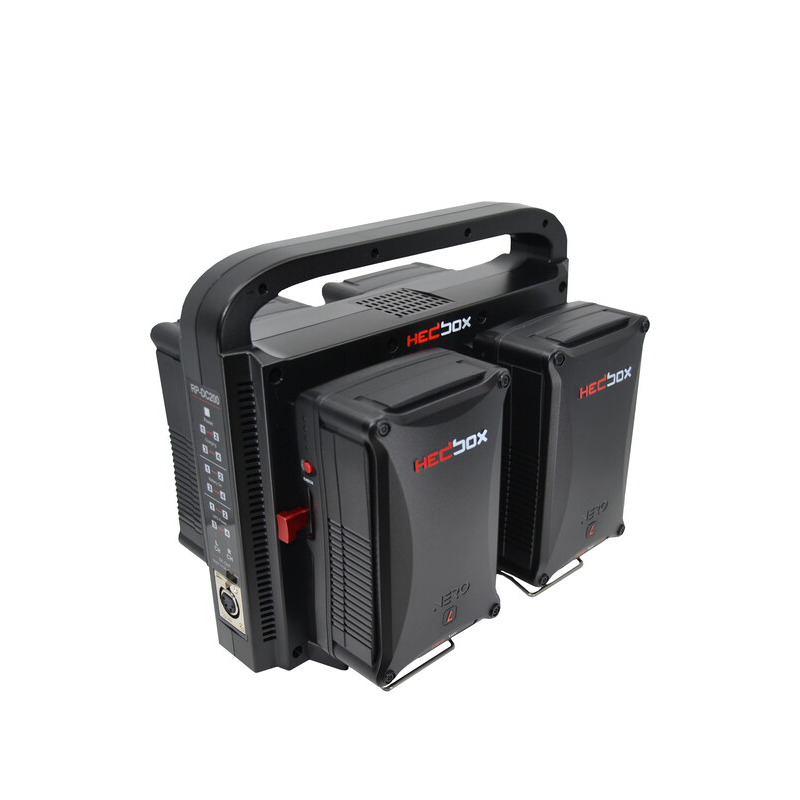

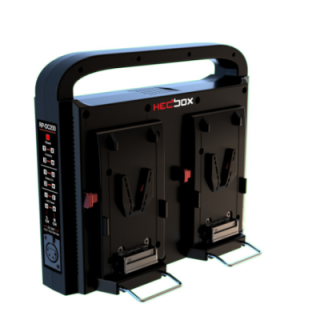

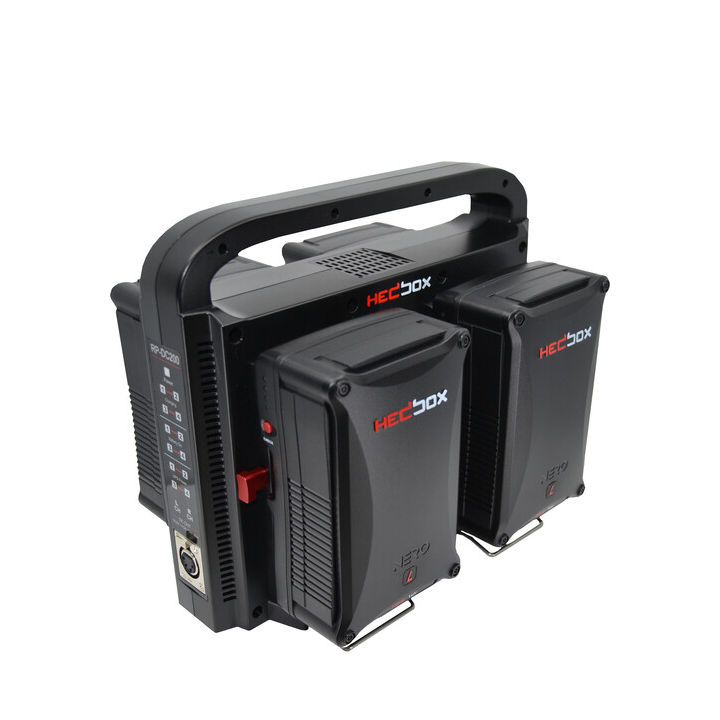

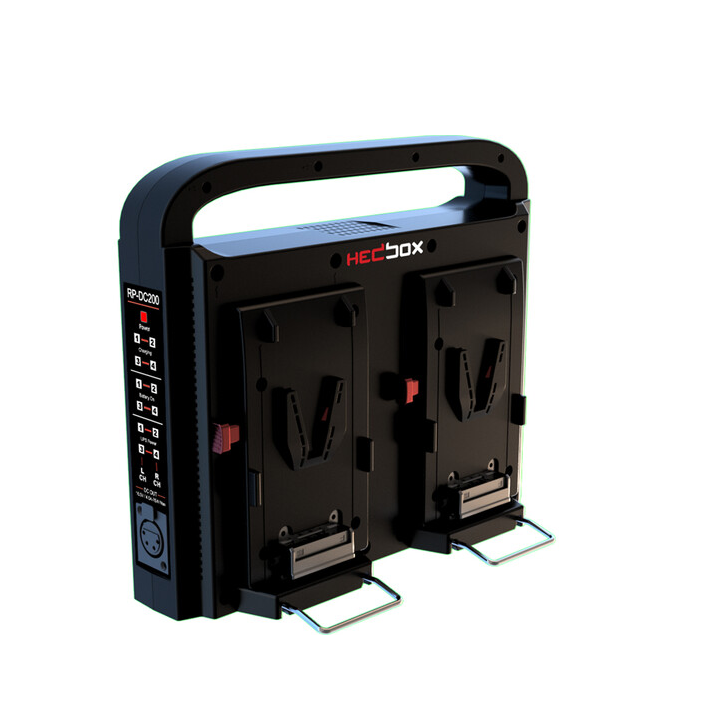

Hedbox MEGABANK-4L - Professional Power Bank Set (780Wh)
1076454
The MEGABANK-4L Professional Power Bank Set from Hedbox is a continuous power supply system that comes with four NERO L batteries and an integrated LED display that provides accurate details regarding charging and battery channel status, as well as the power bank mode of all four channels.
Visuals Price
1,255.35 CHF
VAT excl.
1,357.03 CHF Inc. VAT
Manufacturer price 1 254,90 CHF VAT excluded
Made to order
-
Delivery
-
Delivery time 3 to 5 weeks
Order now, we'll deliver as soon as possible.
Contact us for alternatives:
022 561 07 07.
-
Delivery time 3 to 5 weeks
-
In-store pickup
- Available in 3 to 5 weeks
QQUAD BATTERY CHARGER AND UNINTERRUPTIBLE DC POWER SUPPLY SYSTEM - V-MOUNT
The Hedbox MEGABANK-4L is an intelligent digital quad battery charger system with four V-Mount (V-Lock) batteries offering simultaneous charging and external battery/UPS capabilities. LED status indicators provide clear, accurate and precise readings while the integrated brackets ensure stable operation when a single battery is mounted. The included XLR 4-pin female to male DC power cable (RPC-DC4X4) allows the MEGABANK-4L to be used as an external battery, providing DC power output from AC input or installed V-Lock batteries. DC output power of up to 14.5V 4.5A 75W is available.
When operating as an external battery, if the AC input were to fail, the DC power is then seamlessly transferred to an installed battery, then to the second battery once the first is depleted, then to the third battery once the second is depleted, and to the fourth battery once the third is depleted. This UPS and continuous power function provides valuable and constant DC power for audio, video and lighting equipment, completely independent of the regular mains power supply.
4-channel simultaneous charger
The MEGABANK-4L quad digital battery charger system easily charges four professional batteries simultaneously. Using the latest battery charging technologies, with zero-volt charge activation, it allows you to charge four batteries at the same time, saving you time and money.
Charging technology
Intelligent charging systems integrate control systems in the charger and electronic components in the battery to allow precise control of the charging process. As a precaution with high-capacity batteries, a pre-charge step (slow charge) is used. The constant current/constant voltage (CC/CV) charge mode is an effective way to charge lithium batteries. It is used to charge the battery from 0% to 80% (RED indicator on). When the battery is charged to 80%, pulsed voltage charging (GREEN indicator on) takes over until the battery reaches 100%. The charger processor automatically adjusts the charging current so that it is lower than the maximum charging current the battery can accept. When the battery is fully charged, this state is stopped.
LED display screen
The LED display provides a clear, accurate and precise indication of the power status, charge status, battery channel status and external battery mode. The displayed charge mode (red LED on - constant current charging, green LED on - pulsed voltage charging) gives a clear overview of how the charge mode is being used to charge your professional battery. With a bright and intense light, the reading function is activated in the dark.
Integrated locking bracket
The MEGABANK-4L is equipped with additional brackets to facilitate its use. The brackets provide additional stability when charging a single battery.
External battery mode

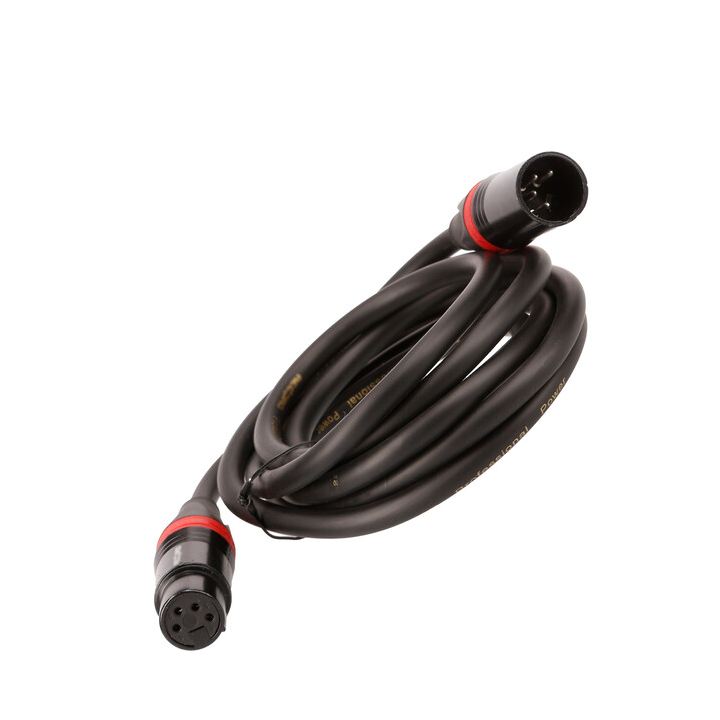

The MEGABANK-4L can easily become a very powerful external battery when used with a specially designed Hedbox high-flexibility professional power cable RPC-DC4X4-XLR 4-pin female to male (included in the box). The power output is DC14.5V/4.5A, 75W and the capacity depends on the batteries used. For this application, use the cable: RPC-DC4X4 / XLR 4-pin male to female.
DC output 16.5V, 4.5A / 75W
With an XLR 4-pin female connector on the front panel, the MEGABANK-4L provides an additional DC output to continuously power external units such as professional camcorders, video monitors, LED lighting and other professional broadcast products. Connected with the specially designed Hedbox high-flexibility professional power cable RPC-DC4X4-XLR 4-pin female to male (included in the box), the charger can be used as an AC-DC adapter with DC 14.5V/4.5A, 75W output.
IN THE BOX:

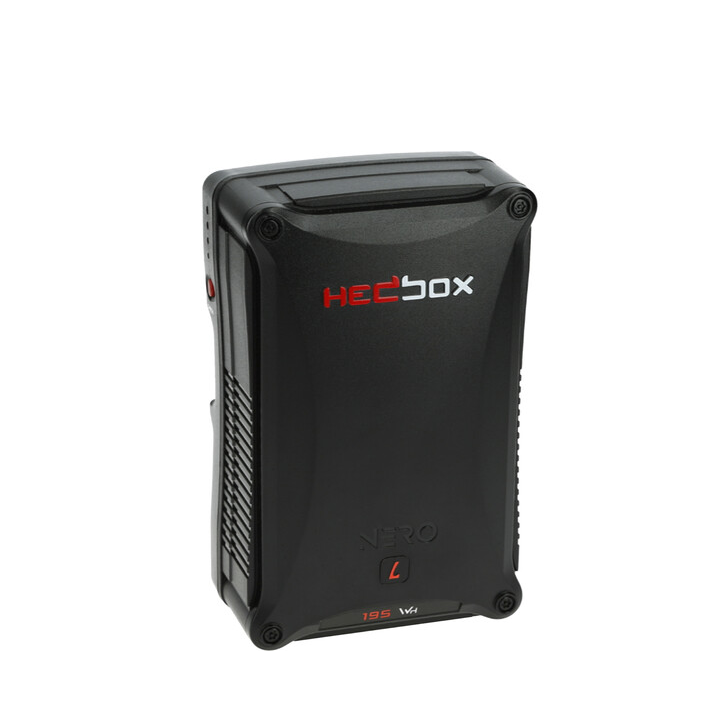

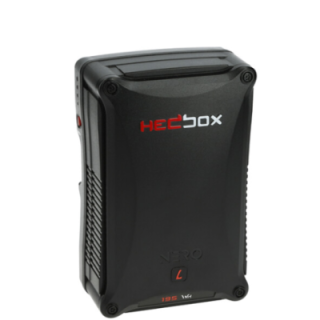

- 1 X RP-DC200V DIGITAL QUAD CHARGER - 4 X NERO-L LI-ION BATTERY - 1 X RPC-DC4X4 XLR 4-PIN DC POWER CABLE - 1 X 110V ~ 240V POWER CABLE - 1 X INSTRUCTION MANUAL (ENGLISH) - 1 X 2-YEAR MANUFACTURER'S LIMITED WARRANTY
4-channel simultaneous charger
The MEGABANK-4L quad digital battery charger system easily charges four professional batteries simultaneously. Using the latest battery charging technologies, with zero-volt charge activation, it allows you to charge four batteries at the same time, saving you time and money.
Charging technology
Intelligent charging systems integrate control systems in the charger and electronic components in the battery to allow precise control of the charging process. As a precaution with high-capacity batteries, a pre-charge step (slow charge) is used. The constant current/constant voltage (CC/CV) charge mode is an effective way to charge lithium batteries. It is used to charge the battery from 0% to 80% (RED indicator on). When the battery is charged to 80%, pulsed voltage charging (GREEN indicator on) takes over until the battery reaches 100%. The charger processor automatically adjusts the charging current so that it is lower than the maximum charging current the battery can accept. When the battery is fully charged, this state is stopped.
LED display screen
The LED display provides a clear, accurate and precise indication of the power status, charge status, battery channel status and external battery mode. The displayed charge mode (red LED on - constant current charging, green LED on - pulsed voltage charging) gives a clear overview of how the charge mode is being used to charge your professional battery. With a bright and intense light, the reading function is activated in the dark.
Integrated locking bracket
The MEGABANK-4L is equipped with additional brackets to facilitate its use. The brackets provide additional stability when charging a single battery.
External battery mode
The MEGABANK-4L can easily become a very powerful external battery when used with a specially designed Hedbox high-flexibility professional power cable RPC-DC4X4-XLR 4-pin female to male (included in the box). The power output is DC14.5V/4.5A, 75W and the capacity depends on the batteries used. For this application, use the cable: RPC-DC4X4 / XLR 4-pin male to female.
DC output 16.5V, 4.5A / 75W
With an XLR 4-pin female connector on the front panel, the MEGABANK-4L provides an additional DC output to continuously power external units such as professional camcorders, video monitors, LED lighting and other professional broadcast products. Connected with the specially designed Hedbox high-flexibility professional power cable RPC-DC4X4-XLR 4-pin female to male (included in the box), the charger can be used as an AC-DC adapter with DC 14.5V/4.5A, 75W output.
IN THE BOX:
- 1 X RP-DC200V DIGITAL QUAD CHARGER - 4 X NERO-L LI-ION BATTERY - 1 X RPC-DC4X4 XLR 4-PIN DC POWER CABLE - 1 X 110V ~ 240V POWER CABLE - 1 X INSTRUCTION MANUAL (ENGLISH) - 1 X 2-YEAR MANUFACTURER'S LIMITED WARRANTY
|
Specifications |
|
||
|
Model |
MEGABANK-4L External Battery Power System |
|||
|
AC power input |
AC 110 – 240V, 50/60Hz |
|||
|
Battery bracket |
V-Lock and V Mount battery plate |
|||
|
Power consumption |
Max 85W |
|||
|
Power capacity 1 |
13400mAh / 195 Wh Single channel |
|||
|
Power capacity 2 |
26800mAh / 390 Wh Dual channel |
|||
|
Power capacity 3 |
40200mAh / 585 Wh Single channel |
|||
|
Power capacity 4 |
56600mAh / 780 Wh Single channel |
|||
|
DC power output |
DC 16.5V / 4.5A / 75W (max) |
|||
|
Power output connection |
XLR 4-pin |
|||
|
Battery power type |
Li-Ion |
|||
|
Operating temperature |
–20°C to +45°C (–4°F to +113°F) |
|||
|
Dimensions (LxDxH) |
124 x 114 x 445 mm |
|||
|
Weight |
4.45 kg |
|||
|
Charging method |
The MEGABANK-4L uses advanced constant current and pulsed voltage charging methods |
The MEGABANK-4L Professional Power Bank Set from Hedbox is a continuous power supply system that comes with four NERO L batteries and an integrated LED display that provides accurate details regarding charging and battery channel status, as well as the power bank mode of all four channels.
