Vocas - Flexible camera rig, FCR-15

Vocas 0350-3000 - Flexible camera rig, FCR-15

1009287
8720041004561
Vocas 0350-3000 - Flexible camera rig, FCR-15
Vocas 0350-3000 - Flexible camera rig, FCR-15
Flexible camera rig, FCR-15
... learn more
Visuals Price
620.64 CHF VAT excl.

670.91 CHF Inc. VAT

Manufacturer price 653,30 CHF VAT excluded
Made to order

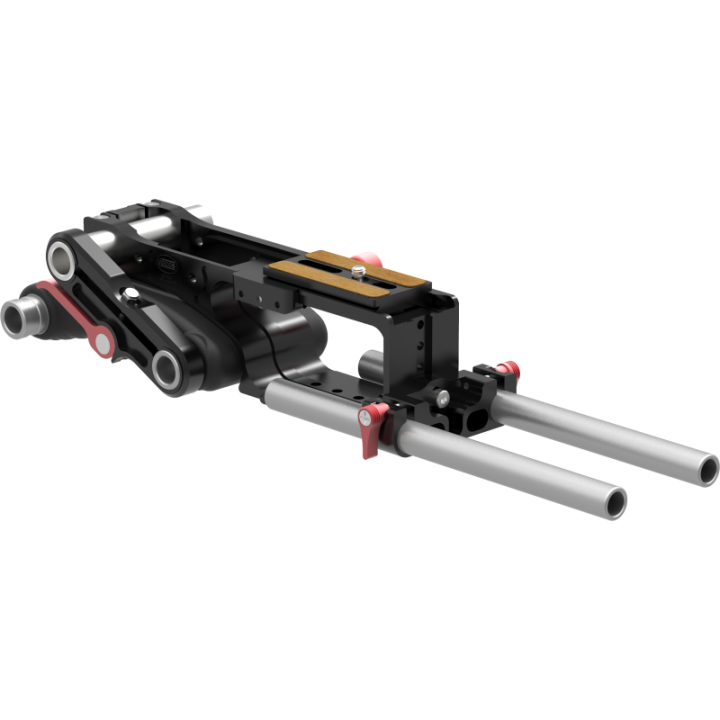

Vocas flexible camera support, FCR-15
Flexible 15 mm camera support for DSLR cameras, camcorders with semiconductors and small cinema cameras. The FCR-15 is a height-adjustable 15 mm camera support with an ARCA balance system and an extremely flexible shoulder pad, offering a wide variety of shoulder mounting positions. The top of the support is equipped with an ARCA dovetail plate, providing quick-release and balancing options for your camera setup. The ARCA dovetail plate slides in from the front or top of the support.
At the rear right end, the shoulder pad is attached to the support via an extension on a 19 mm horizontal tube. The quick-release lever on the extension allows you to quickly adjust the shoulder pad to many different positions. For example, the shoulder pad can be used directly under the support for a comfortable shoulder configuration, or in a compact chest support configuration. Additionally, the shoulder pad position can be moved rearward by approximately 100 mm, whilst also adjusting its angle.
The quick-release lever also allows you to remove the shoulder pad and attach it to the support in an offset position, transforming your shoulder support into an offset shoulder support. The variety of shoulder pad positioning is a unique feature, making this support compatible with any DSLR camera, camcorder with semiconductors or small cinema camera. Using one of the above configurations, the support is a perfect solution for using front viewfinders and LCD screens on cameras, as well as LCD screens and viewfinders at the rear of the camera.
The quick-release lever allows you to deploy and fold your support in one second. Perfect for storing your support in your small camera bag. The height-adjustable front rails of the FCR-15 ensure compatibility with almost all DSLR cameras, with or without battery grip, camcorders with semiconductors and small cinema cameras! On each side of the support, an optional rosette (0390-0320) can be mounted to attach handles or other standard rosette accessories. The underside of the plate is equipped with multiple 1/4'' and 3/8'' threaded holes to mount any type of tripod plate. An optional 15 mm clamp block (0350-2010) can be mounted at the rear of the support, offering the possibility to mount any 15 mm rail accessory at the rear of the camera, such as a battery, recorder, monitor or counterweight.



Specifications



Manufacturer

Vocas Systems

Rosette

Optional

Shoulder pad

Adjustable, Removable, Tool-free

Shoulder pad size

Standard

Rod position

Front, Rear optional

Rod system

15 mm

Height adjustable

Yes

Camera mounting points

2

Included in the package

0350-3050 ARCA dovetail plate, 0350-9210 15 mm rods (2x)

Material

Aluminium, Cork, Rubber

Colour

Black
