Shape - Baseplate Kit with Matte Box & Follow Focus for Canon EOS C80
Shape C80KIT - Baseplate Kit with Matte Box & Follow Focus for Canon EOS C80
1080407
SHAPE Baseplate Kit with Matte Box, Follow Focus for Canon EOS C80
Visuals Price
2,176.30 CHF
VAT excl.
2,352.58 CHF Inc. VAT
Manufacturer price 2 175,52 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

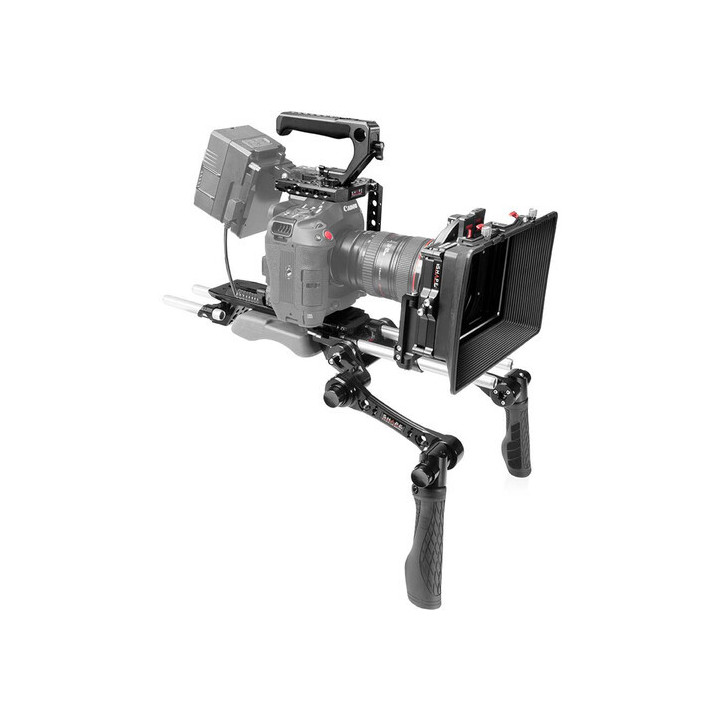

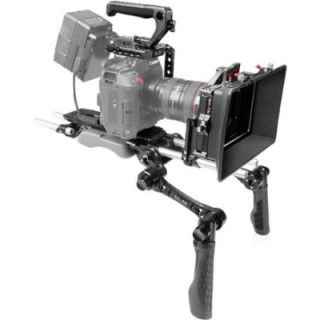

This SHAPE Baseplate Kit with Matte Box and Follow Focus for Canon EOS C80 offers you a feature-rich solution for your digital cinema camera with extensive control and customisation to meet your needs, whether integrating it into your current setup or building a new one.

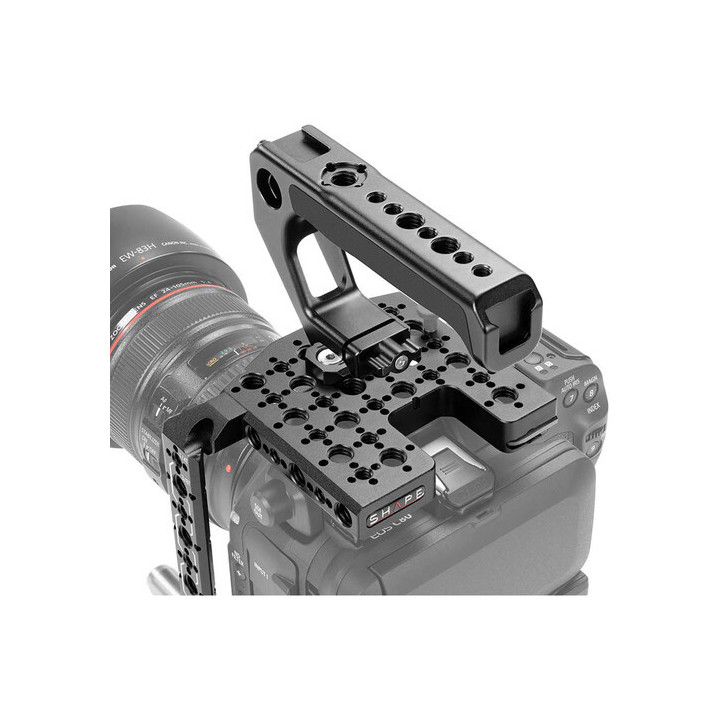

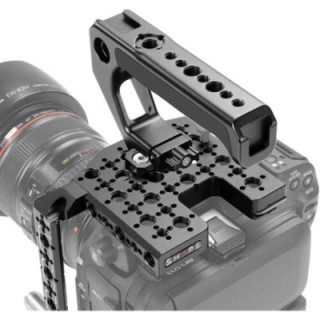

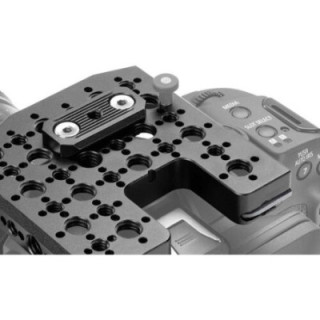

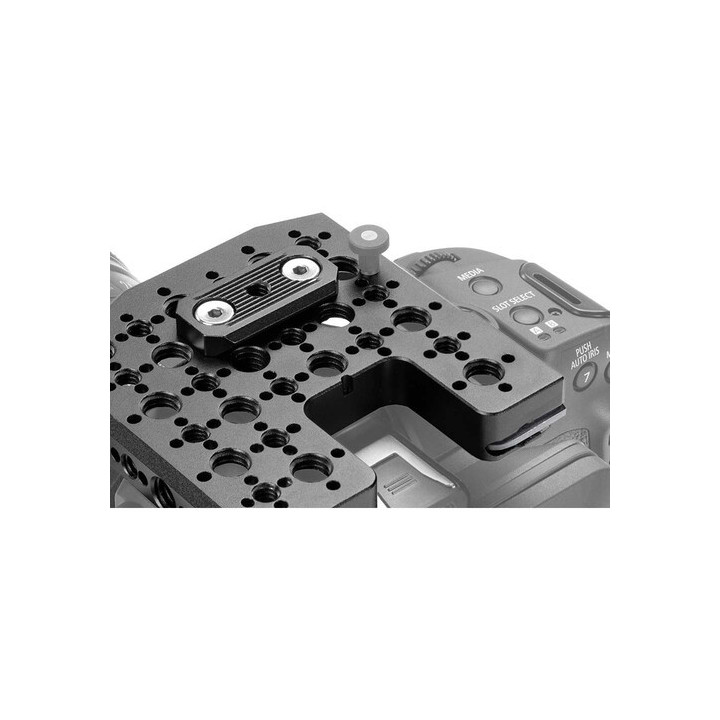

SHAPE Baseplate Cage with Handles for Canon EOS C80
This SHAPE Baseplate cage with handles creates a versatile mounting system for your Canon EOS C80. The front handles offer easy control and use of your setup. The cage features a series of 3/8"-16 and 1/4"-20 threaded holes with ARRI-style bushings for added security, as well as a NATO-compatible mount for attaching the top handle for easy transport. An included HDMI lock secures your cable once attached to your camera body, preventing interruptions during your shoot. The durable aluminium construction withstands the rigours of filming, protects your camera body and supports your setup.
SHAPE Swing-Away Matte Box
Increase the flexibility of your camera and lighting setup while avoiding stray reflections and keeping lights out of frame with SHAPE's compact Swing-Away Matte Box. Adaptable mounting options allow the matte box to have a straight, swing-away or clip-on configuration, and a removable silicone sunshade increases customisation for the optimal setup of your rig. Its aluminium and carbon fibre construction is lightweight, and the included rod block is height-adjustable by tightening the knobs, making it compatible with lenses up to 124mm in diameter.
A removable carbon fibre top flag prevents reflections in bright sunlight, and additional adaptor rings further customise the size of the matte box opening, ranging from 67 to 87mm. A flexible cover secures the area where the matte box and your lens connect to prevent light from passing through.
Three Different Configurations
The rod block can be installed directly on the main frame for a straight configuration
The ring locking knobs secure the box for a clip-on configuration
Magnets hold the mechanism in place while allowing swinging for easy lens changes; can be secured with a spring-loaded pin
Filters
Two 4 x 5.6" filter trays, one of which is rotatable
Easy-access handles allow for one-handed filter changes
Compatible with 4 x 4" filters
Includes two bottom stoppers to prevent filters from falling
Adaptor Rings
87 to 67mm
87 to 72mm
87 to 77mm
87 to 82mm
124 to 87mm

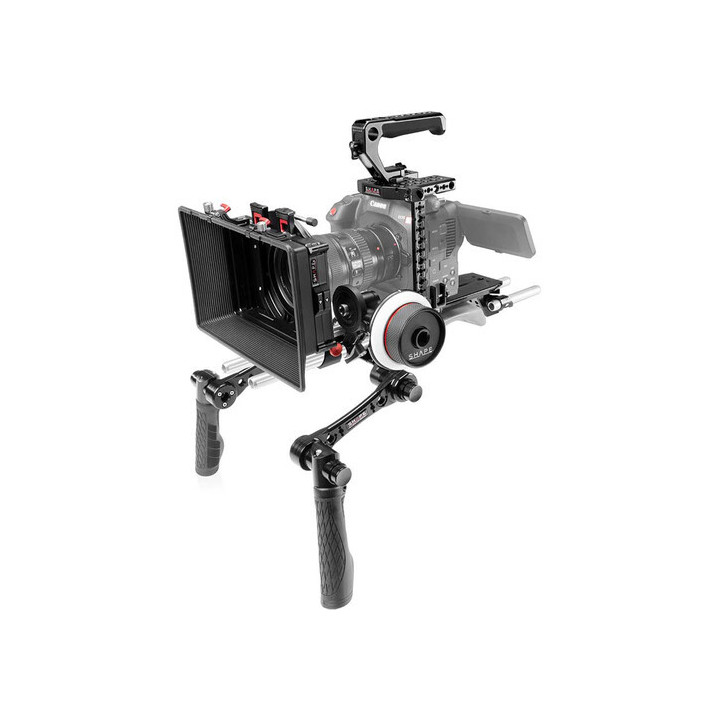

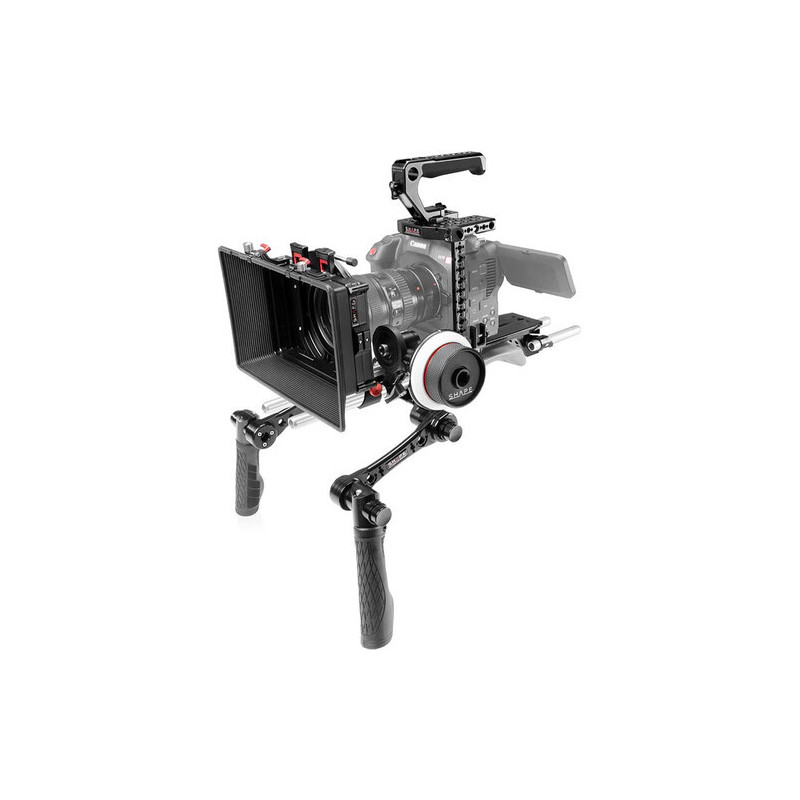

SHAPE Follow Focus Kit with Single 15mm Rod Clamp
Use the compact SHAPE Follow Focus Kit with Single 15mm Rod Clamp with your camera setup to facilitate focus pulling. The modular design allows for adding and removing any component without screws or tools, and its low profile allows for the addition of a matte box or accessories around your lens.
At the heart of the kit is a non-slip rubber follow focus wheel attached to a single aluminium 15mm rod clamp. The clamp pivots to accommodate most lens sizes and is tightened by a locking lever. The clamp's rotation also allows the focus wheel to easily pivot when changing lenses.
Five drive gears are included to fit different lens sizes: 0.5 MOD/78T, 0.6 MOD/64T, 0.8 MOD/38T, 0.8 MOD/43T, and 0.8 MOD/78T. The gears can be flipped from front to back to facilitate different lens configurations. A 49mm rubber friction wheel is also included for the 0.5 MOD/78T gear which is most commonly used with DSLR lenses.
For alternative fine-focus setups, use the included speed crank or 11" whip, both of which attach to the wheel's centre point. Four magnetic marking discs are included to attach to the focus wheel.
The modular design allows for adding and removing components without tools or screws. Its compact size allows it to fit easily with lens accessories such as a matte box.
The rubber follow focus wheel is attached to an adjustable aluminium 15mm rod clamp that can pivot when changing lenses.
The focus wheel accommodates most lens sizes. Five drive gears are included: 0.5 MOD/78T, 0.6 MOD/64T, 0.8 MOD/38T, 0.8 MOD/43T, and 0.8 MOD/78T.
A rubber friction wheel is included for the 0.5 MOD/78T gear which is most commonly used with DSLR lenses.
An 11" whip and speed crank are included. Each connects to the focus wheel for fine adjustments.
Four magnetic marking discs are included to attach to the focus wheel.
SHAPE Baseplate Kit with Matte Box, Follow Focus for Canon EOS C80
