Variosystems - Capture Card

Variosystems VS-OS-95-00502 - Capture Card

1012182
0850189006771
Variosystems VS-OS-95-00502 - Capture Card
Variosystems VS-OS-95-00502 - Capture Card
3x 3G SDI, Third Input programmable as Loopout, Embedded 8 Stereo Audio Pairs per Channel
... learn more
Visuals Price
1,267.17 CHF VAT excl.

1,369.81 CHF Inc. VAT

Manufacturer price 1 333,86 CHF VAT excluded
Made to order
  • Delivery
  • In-store pickup

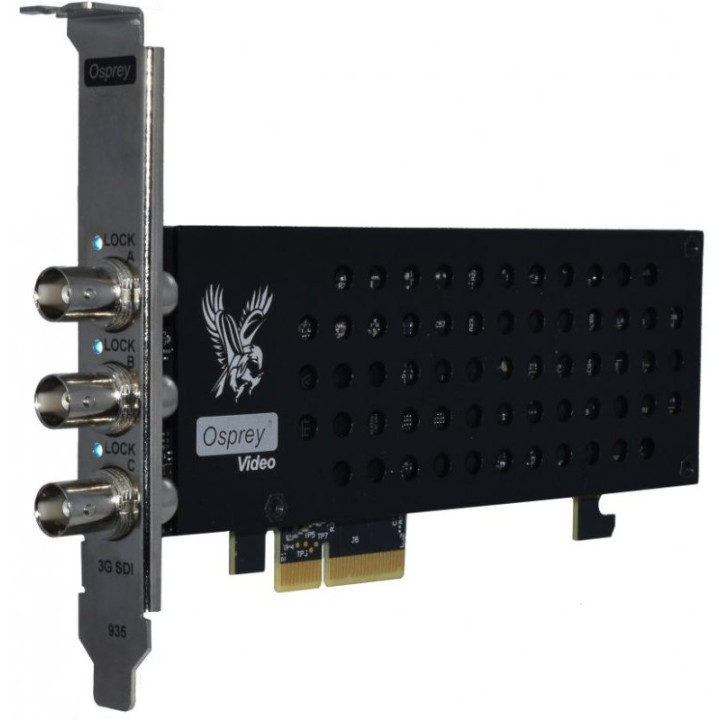

Variosystems capture card
The Osprey Raptor 935 offers three 3Gb/s SDI inputs and supports up to 60 fps.
SDI ports work with SD, HD and 3G frame sizes.
All SDI inputs support 16 audio channels each (8 stereo channels).
Input C can be used as a loop output from input A.
Features
- PCIe capture card
- Three SDI inputs x 3Gb/s SD/HD/3G-A (full-size BNC)
- 48 audio channels (24 stereo channels)
- Closed caption support (subtitles)
- Watermark overlay
- Scaling
- Frame rate conversion
- SimulStream



Features



PCI format

PCI Express Gen2 (4x)

Slots: x4, x8 or x16

Connections

3x SDI Input x 3Gb/s SD/HD/3G-A (full-size BNC)

SDI audio inputs

16 embedded channels (8 stereo) per port

Video standards

525i 59.94 NTSC, 625i 50 PAL

720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

1080psf 23.98, 24, 25, 29.97, 30

1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

1080i 50, 59.94, 60

SDI compliance

SMPTE 259/292/296/424/425

3G-SDI Level A only

SDI metadata support

CEA-608, CEA-708 for subtitles

Audio sampling

Television standard - 48 kHz at 24 bit

SDI colour accuracy

RGB 8, 10, 12 bit 4:4:4, YUV 4:4:4 and 4:2:2

Recognition

Automatically detects SD/HD/3G-A

Weight

130g

Power consumption

~ 5.10W

Temperature

Operating - 0°C - 40°C



3x 3G SDI, Third Input programmable as Loopout, Embedded 8 Stereo Audio Pairs per Channel
