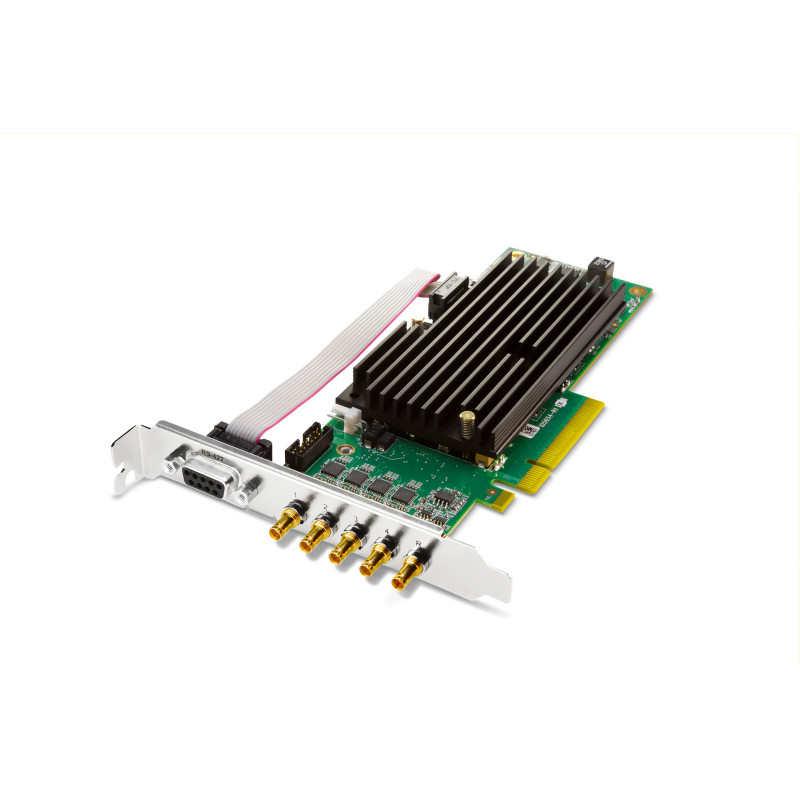

Aja CRV44-BNC with passive heatsink
Increase your video and audio input/output capacity with the Corvid 44 BNC from AJA Video Systems with 3G-SDI connectivity via full-size BNC connectors. Configure each SDI connection individually as an input or output and mix formats for up to 4 HD or SD channels on a single card. As demand for higher resolutions increases, combine the SDI connections into a single 4K/UHD channel, enabling incredible flexibility and future-proofing.
Features
- PCIe Express Gen 2.0 8-lane
- Up to four independent 3G, HD, SD-SDI I/O channels (channels must use the same master clock. For example, 29.97 and 59.94)
- All SD/HD/2Kx1080/4K video formats
- 3G input/output for high frame rate (HFR) support.
- YCbCr 8/10-bit and RGB 12-bit frame buffer formats
- Two independent Mixer/Keyer widgets
- Four independent 16-channel 48 kHz embedded SDI audio engines
- Black burst analogue sync or HD tri-level




Specifications



Video Formats

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
(HD) 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1080i 25, 29.97, 30
(HD) 720p 50, 50.94, 60
(SD) 625i 25
(SD) 525i 29.97

Digital Video Input

Four BNC 3G-SDI

Digital Video Output

Four BNC 3G-SDI

Digital Audio Input

16-channel 24-bit embedded SDI, 48 kHz synchronous

Digital Audio Output

16-channel 24-bit embedded SDI, 48 kHz synchronous

Dimensions (W×D×H)

0.727" × 6.6" × 2.713" (18.47 mm × 167.65 mm × 68.90 mm)

Weight

0.4 lb (0.2 kg)

Power Supply

17 watts typical, 19 watts maximum

Environment

Safe Operating Temperature: 32°-104°F (0°-40°C)
Safe Storage Temperature (powered off): -40°-140°F (-40°-60°C)
Operating Relative Humidity: 10-90% non-condensing
Operating Altitude: < 3,000 metres (< 10,000 feet)
