Low-profile PCIe bracket and passive heatsink for AJA

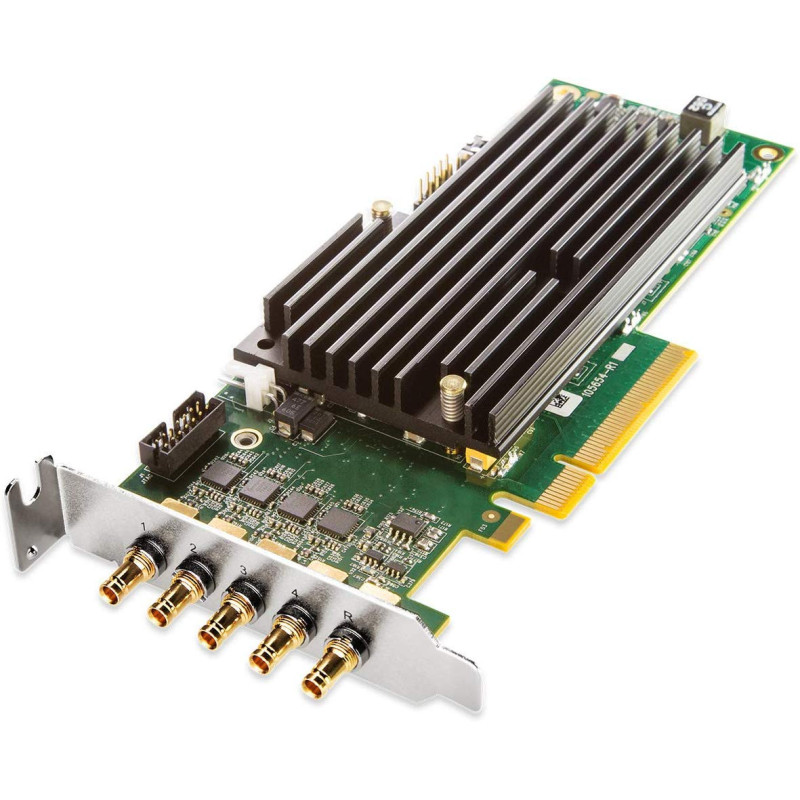

The AJA Video Systems CRV44-S-NCF is a fanless, cableless low-profile PCIe bracket that allows users to individually configure each SDI connection as input or output and mix formats for up to 4 HD or SD channels on a single card. As demand for higher resolutions increases, combine SDI connections into a single 4K/UHD channel, offering incredible flexibility and future-proofing.
Other key highlights of the Corvid 44 architecture:
- Multi-stream, multi-format PCIe I/O card: The Corvid 44 enables AJA developer partner applications to access up to four simultaneous input and output streams on a single PCIe card, making it perfect for a wide variety of medium-density applications.
- Flexible multi-format I/O: Each BNC connection on the Corvid 44 can be programmed as input or output and each can support a different video format, provided all formats use the same clock synchronisation. Connections can also be linked to support dual-link or 4K/UltraHD formats.
- High frame rate support: The Corvid 44 supports 4K (4096 x 2160) and UltraHD (3840 x 2160) high frame rate (HFR) workflows. Working at frame rates of 48p, 50p and 60p ensures smooth motion for the most demanding 4K and UltraHD applications. High frame rates are not limited to 4K and UltraHD with the Corvid 44, multiple HD 720p and 1080p inputs and outputs are also supported at rates up to 50p and 60p, making the Corvid 44 extremely flexible for your current and future needs.




Specifications



Video Format

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
(HD) 1080i 25, 29.97, 30
(HD) 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
(HD) 720p 50, 50.94, 60
(SD) 625i 25
(SD) 525i 29.97

Digital Video Input

Four BNC 3G-SDI

Digital Video Output

Four BNC 3G-SDI

Digital Audio Input

16 channels 24-bit embedded SDI, 48 kHz synchronous

Digital Audio Output

16 channels 24-bit embedded SDI, 48 kHz synchronous

Dimensions (W x D x H)

8.75" x 7.25" x 4.875" (22.23 mm × 184.15 mm × 123.83 mm)

Weight

0.2 kg (0.4 lb)

Power Supply

17 watts typical, 19 watts maximum

Environment

Safe operating temperature: 0° to 40°C (32° to 104°F)
Safe storage temperature (power off): -40° to 60°C (-40° to 140°F)
Operating relative humidity: 10-90% non-condensing
